1-1 (E)
PMW-EX1R
3 AUDIO IN CH-1, CH-2: XLR (3P, Female)
_ EXT VIEW _
(0 dBu = 0.775 V rms)
No. Signal I/O Specifi cations
1 MIC/LINE (G) _ _65 dBu to _8 dBu
2 MIC/LINE (H) IN +4 dBu, selectable
3 MIC/LINE (C) IN High impedance, Balanced
4 A/V OUT: Multiconnector (10P)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 LINE_MONI1_L (A/V) O LINE OUT (L)
2 LANC_SIG _ NC
3 S_GND _ GND
4 LANC_DC _ NC
5 S-C O NC
6 LINE_MONI2_R (A/V) O LINE OUT (R)
7 AV_SW I
8 VIDEO/AUDIO_GND _ GND
9 VIDEO O Composite OUT
10 S-Y O NC
5 HDV/DV: i.LINK connector (IEEE1394, S400) (4P)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 TPB_ I/O Strobe on receive, data on
transmit B (_)
2 TPB+ I/O Strobe on receive, data on
transmit B (+)
3 TPA_ I/O Data on receive, strobe on
transmit A (_)
4 TPA+ I/O Data on receive, strobe on
transmit A (+)
AUTO
MANUAL
INTMIC
EXT
PROFILE
DC IN
CH-2
AUTO
MANUAL
INTMIC
EXT
CH-1
OFF
CAMERA
CANCEL
MENU
SEL/SET
MEDIA
PMW-EX1R
EXPANDED
FOCUS
REC
REVIEW
RELEASE
START/
STOP

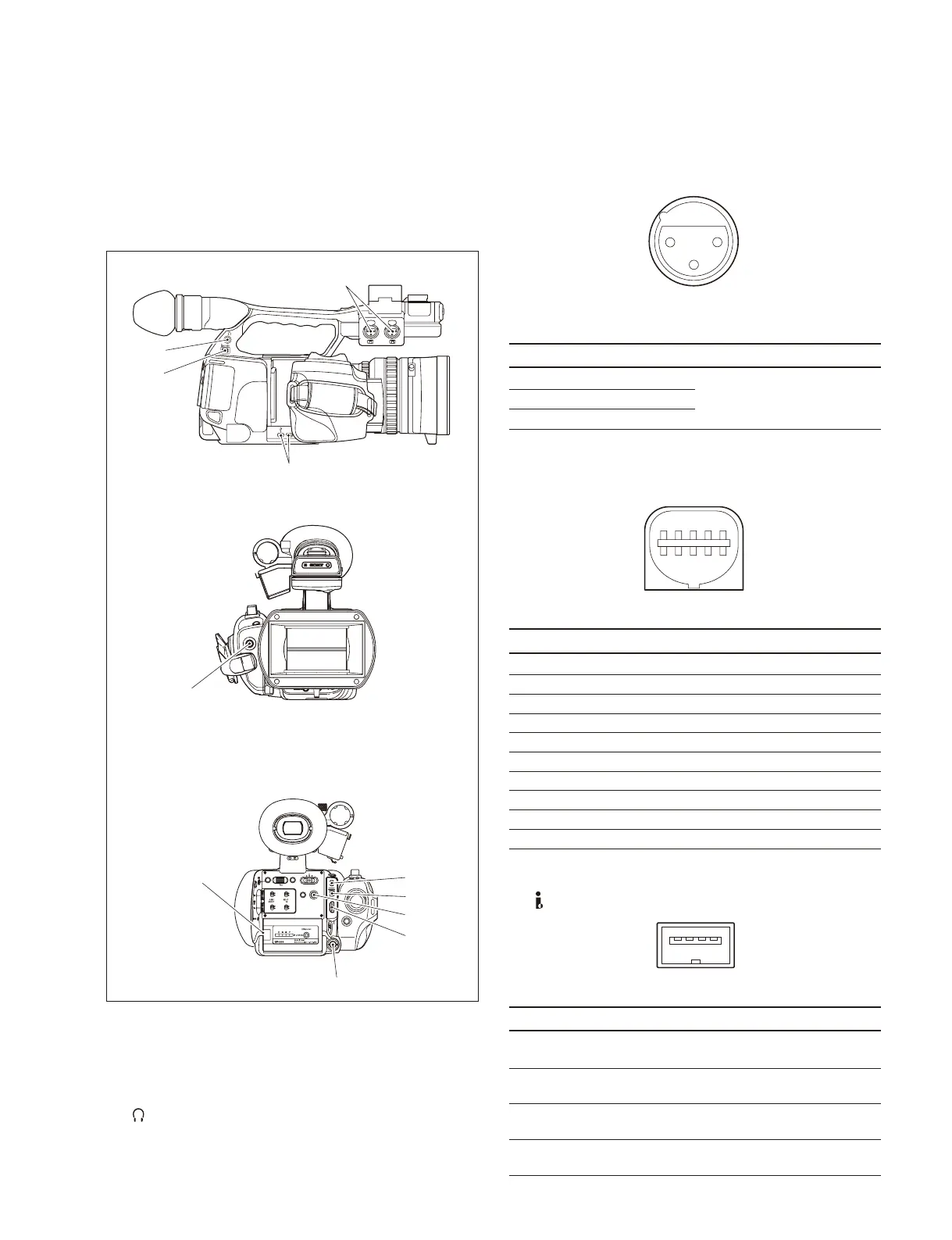

Section 1
Service Overview
1-1. External Connectors
1-1-1. Signal Inputs and Outputs
SIDE VIEW
FRONT VIEW
REAR VIEW
1 SDI OUT: BNC type
SDI output signal
2 (HEADPHONES): Stereo mini jack
Sound monitor, monaural/stereo selectable
_20.5 dBu (Reference level 16 Z loaded)
1
2
3
1
2
9
10
14
