Sony PMW-EX1R Service Manual

2-11 (E)
PMW-EX1R

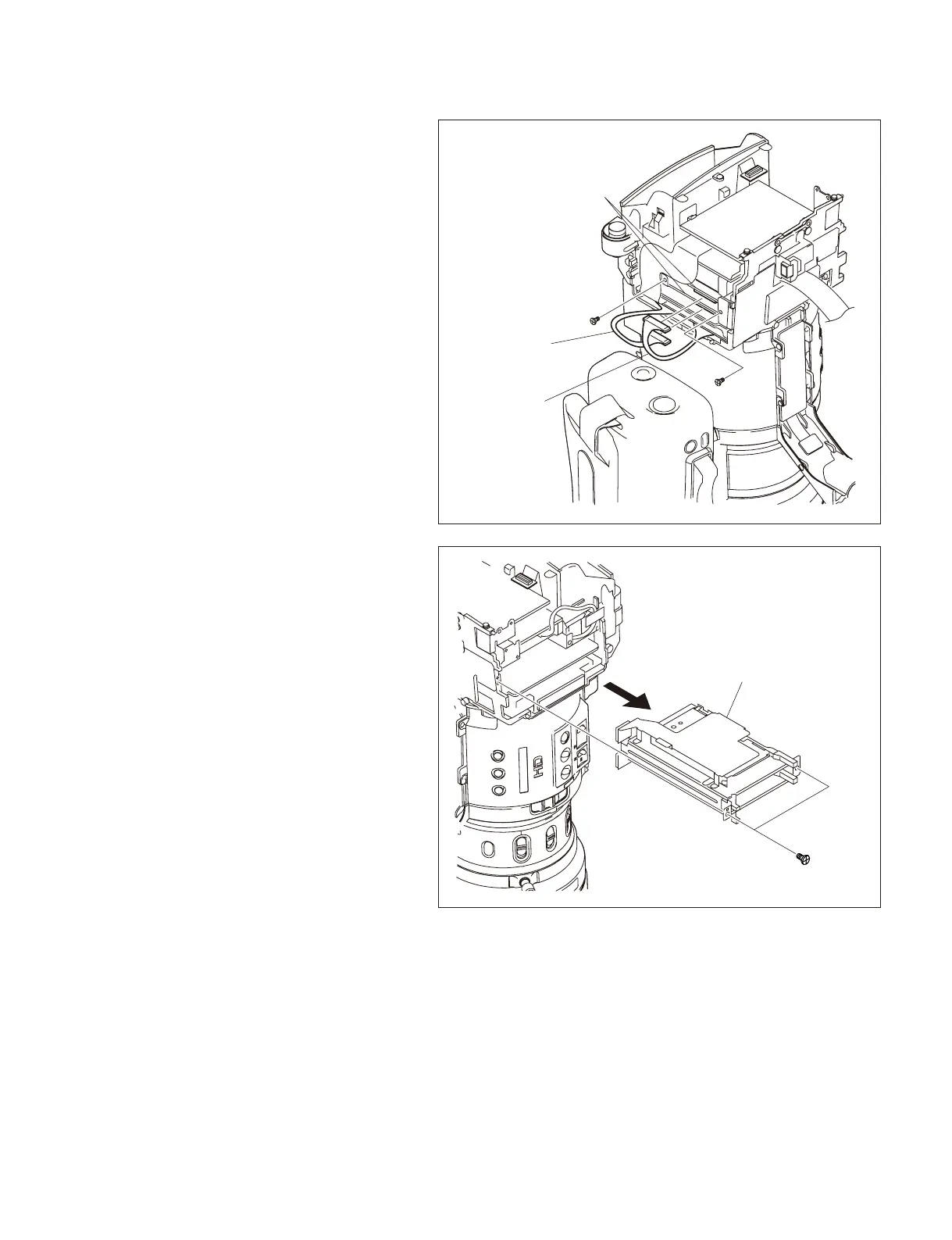

2-2-10. Express Card Assembly
1. Refer to Sections from 2-2-1 to 2-2-5 and
disassemble the unit up to “Handle Assem-
bly” removal.
2. Refer to Sections from 2-2-8 to 2-2-9 and
disassemble the unit up to “Rear Panel As-
sembly” removal.
3. Disconnect the coaxial cable with connectors
from connectors on the two EC-68 boards.
4. Remove the two screws.
Coaxial cable
with connector
(slot A)
Coaxial cable
with connector
(slot B)
EC-68 board
M2 x 3
(silver)
M2 x 3
(silver)
5. Remove the two screws, and remove the
express card assembly in the direction of the
arrow.
6. Reinstall the express card assembly by revers-
ing the steps of removal.
Express card assembly
M2 x 3
(silver)

Sony PMW-EX1R Specifications

General

Sensor type	CMOS
Total megapixels	- MP
Filter size	77 mm
Digital zoom	- x
Optical zoom	14 x
Image stabilizer	Yes
Focal length range	5.8 - 81.2 mm
Focal length (35mm film equivalent)	31.4 - 439 mm
Camcorder media type	HDD, Memory card
Internal storage capacity	32 GB
Focus adjustment	Auto/Manual
Camera shutter speed	1/32 - 1/2000 s
Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display resolution (numeric)	921000 pixels
Viewfinder screen size	0.45 \
Product color	Black
Minimum illumination	0.14 lx
Video formats supported	MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	1
Battery life (max)	3 h
Video recording time	1.6 h
Operating temperature (T-T)	0 - 40 °C
Cables included	USB
Power requirements	12 V DC

Weight and Dimensions

Depth	199 mm
Width	179 mm
Height	308 mm
Weight	2400 g
