PRS-600
SECTION 5
EXPLODED VIEWS
1 4-146-520-01 CASE_LOWER (BLACK)
1 4-146-520-11 CASE_LOWER (SILVER)
1 4-146-520-21 CASE_LOWER (RED)
2 3-286-016-02 SCREW M1.4
3 3-251-483-01 SCREW +P 1.7X3 NON-SLIT TYPE 2
5 A-1744-755-A FRAME_LOWER ASSY
6 3-225-873-29 SCREW (M1.4) (for SILVER)
6 3-286-016-02 SCREW M1.4 (for BLACK, RED)
7 4-158-952-01 CUSHION (MAGNET)
8 4-156-913-01 MAGNET
9 4-158-951-02 ADHESSIVE (ORN_BOTTOM) (4 pieces, 1 set)
10 A-1732-036-A ORNAMENT_TOP_ ASSY
11 4-160-370-02 SHEET (ORNAMENT_TOP), ADHESIVE
12 A-1732-038-A STYLUS_ ASSY
13 4-160-369-01 SHEET (CASE_LOWER), ADHESIVE
14 A-1732-037-A ORNAMENT_BOOTOM_ ASSY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color

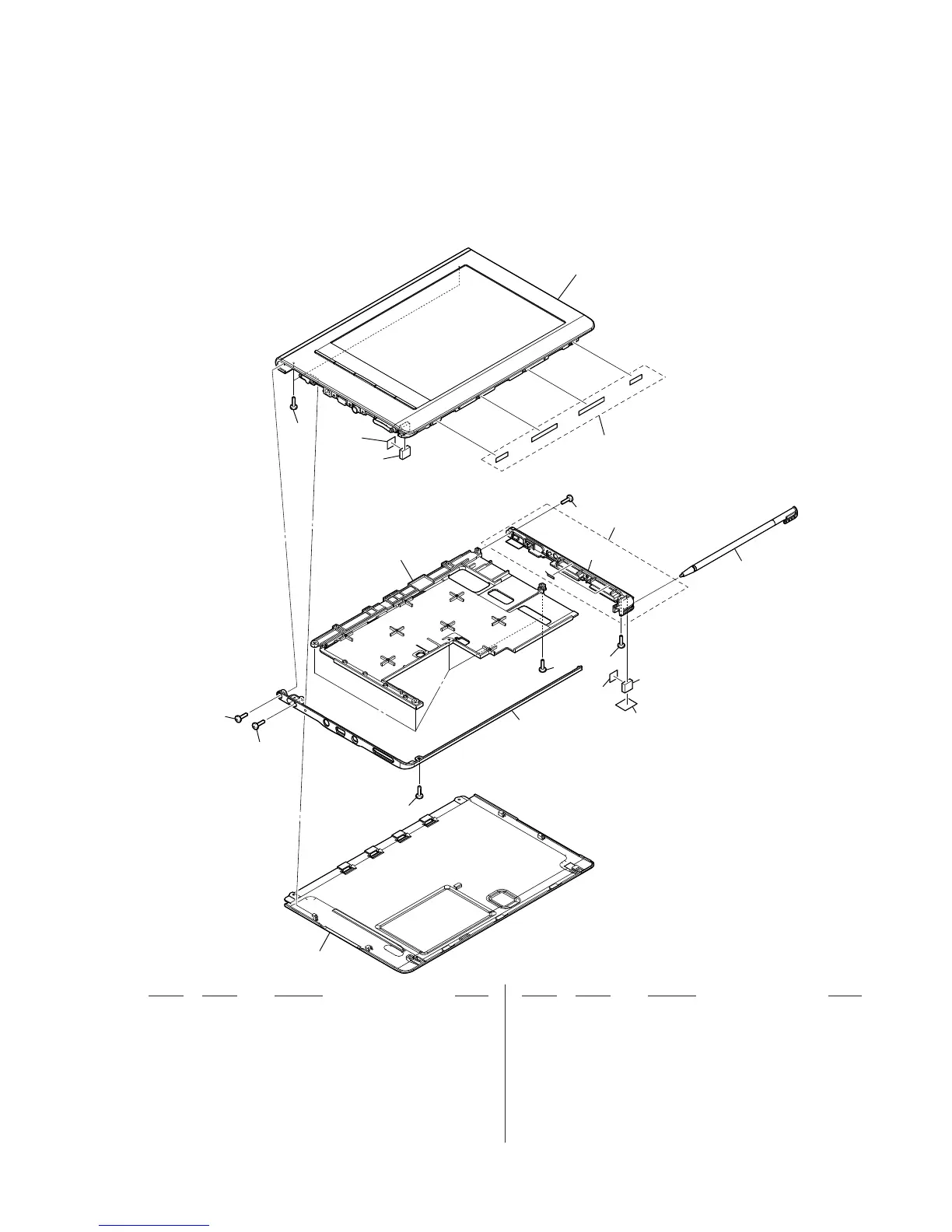

5-1. OVERALL SECTION
• Abbreviation
CEW : UK, French, German and
Netherlands models
MAIN board section
3
1
2
5
6
8
7
13
8
7
9
2
2
2
10
11
2
14
12
not
supplied
