PRS-600
3
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

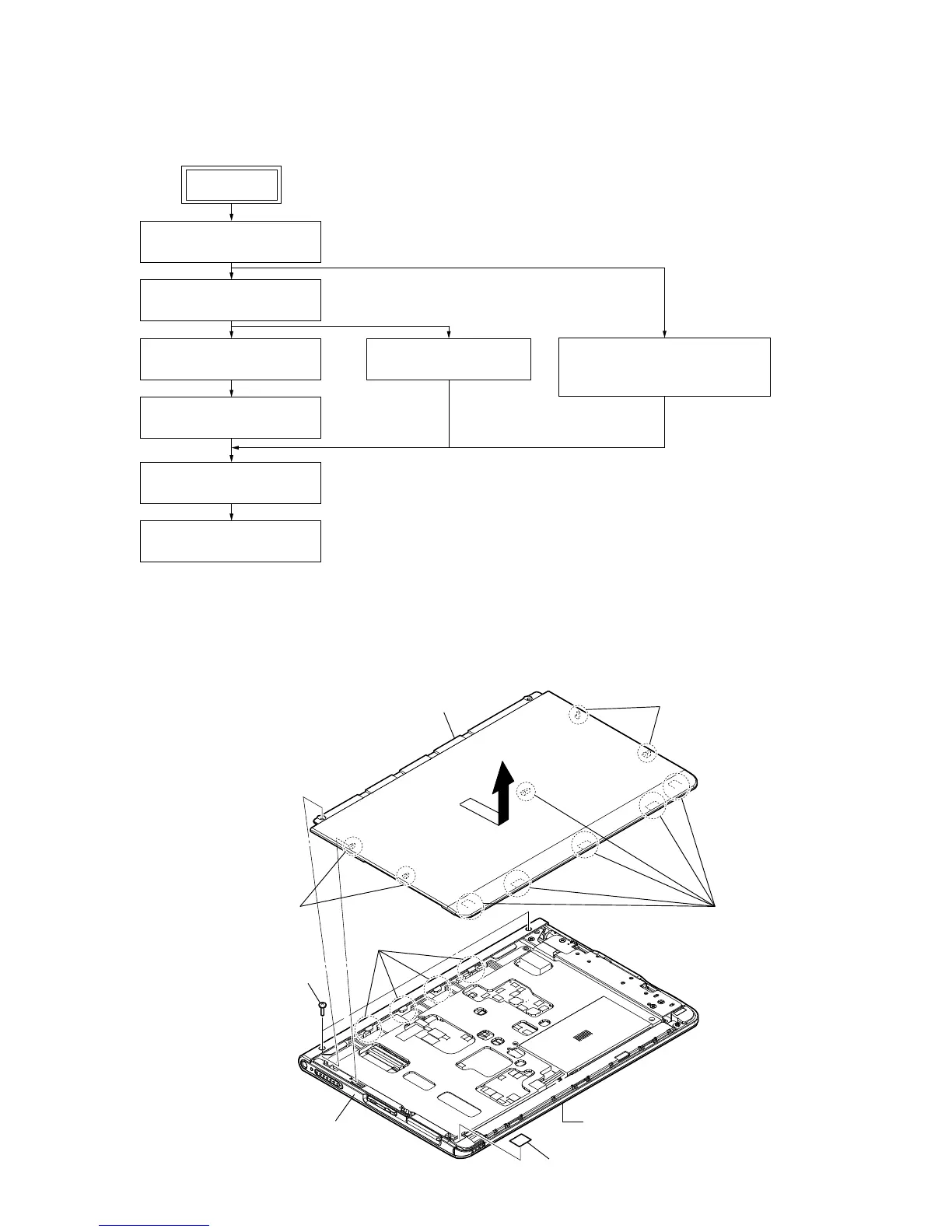

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE_LOWER
2-2. CASE_LOWER
(Page 3)
2-3. FRAME_LOWER ASSY
(Page 4)
2-4. BATTERY ASSY
(Page 4)
2-5. MAIN BOARD
(Page 5)
2-6. FPC (SLOT) ASSY
(Page 5)
2-8. CASE_UPPER_ASSY
(Page 6)
2-9. CHASSIS_ASSY
(Page 7)
SET
2-7. ORNAMENT_BOTTOM_ASSY,
ORNAMENT_TOP_ASSY
(Page 6)
1
two screws
(M1.4)
3
four claws
3
two claws
3
six claws
4
adhesive sheet (case_lower)
3
two claws
5
case_lower
2
top side
touch screen side
Note: Pull out the stylus from the set in advance (Do not lose the stylus).
