Sony PRS-600 - Electronic Book Reader - Frame Lower Assembly Disassembly; Battery Assembly Replacement

PRS-600
4

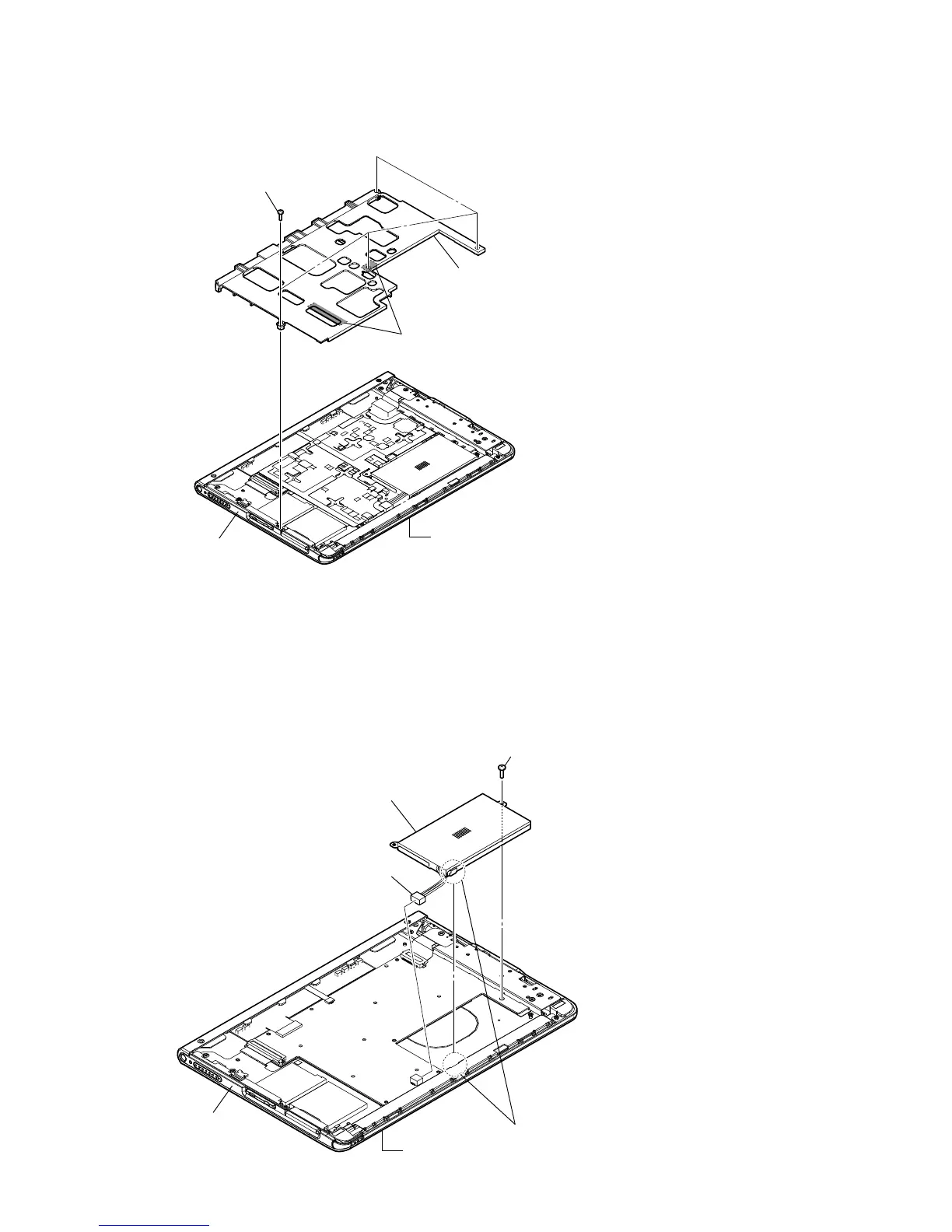

2-3. FRAME_LOWER ASSY
2-4. BATTERY ASSY
1
four screws
(M1.4)
3
frame_lower assy
2
Peel off two places the bonded part of the sheet (copper).
Note: Work politely slowly so as not to tear.
Exchange it for new frame_lower assy if it tears.
top side
touch screen side
1
screw (M1.4)
3
battery assy
2
battery connector (CN101)
Note: When installing the battery assy,
fit the convex part of the battery
assy to the ditch.
top side
touch screen side
