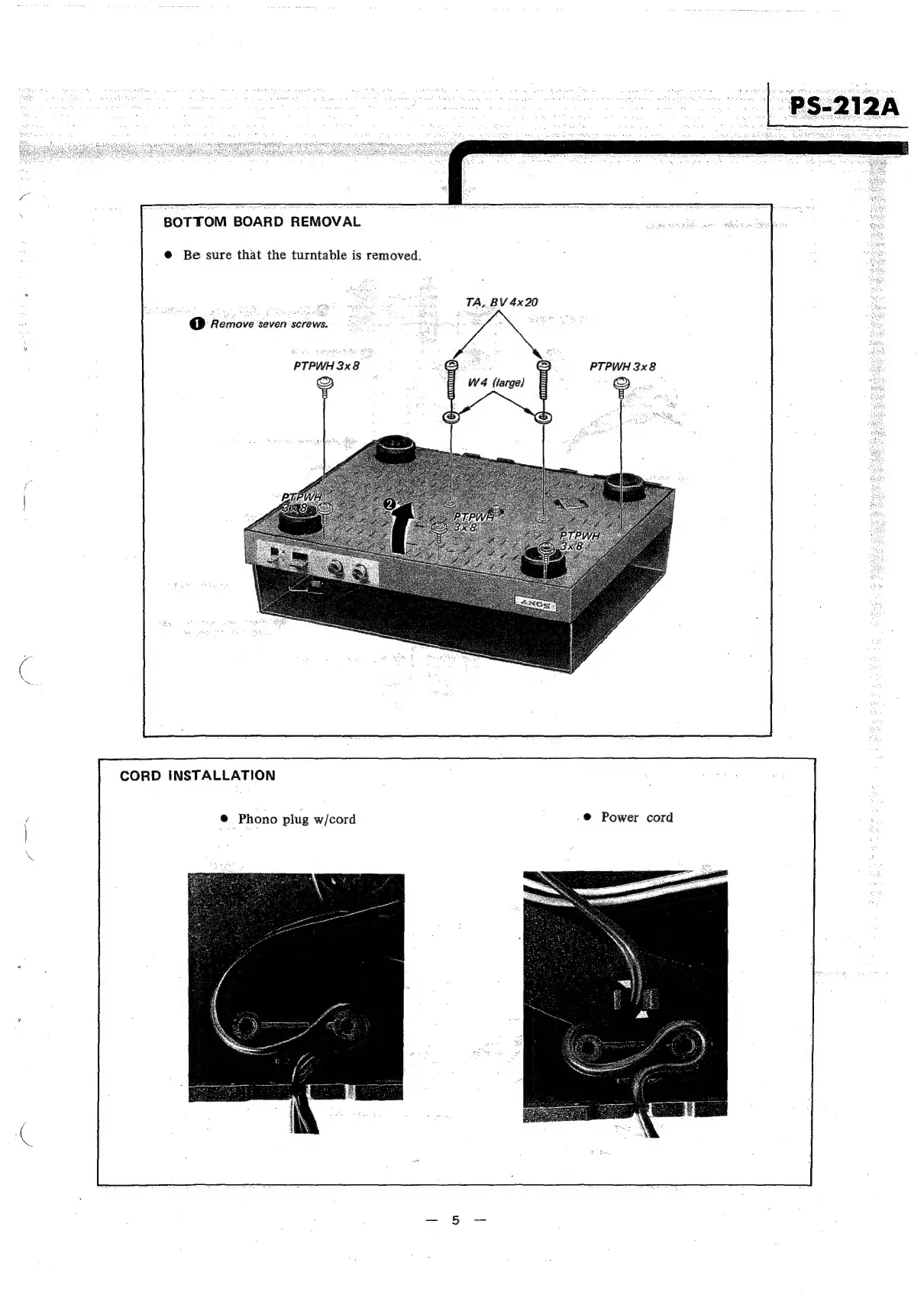

BOTTOM
BOARD
REMOVAL
@
Be
sure
that
the
turntable
is
removed.
TA,
BV
4x20
@
Remove
seven
screws.
PTPWH
3x8
W4
flarge)
CORD
INSTALLATION
@
Phono
plug
w/cord
®
Power
cord
