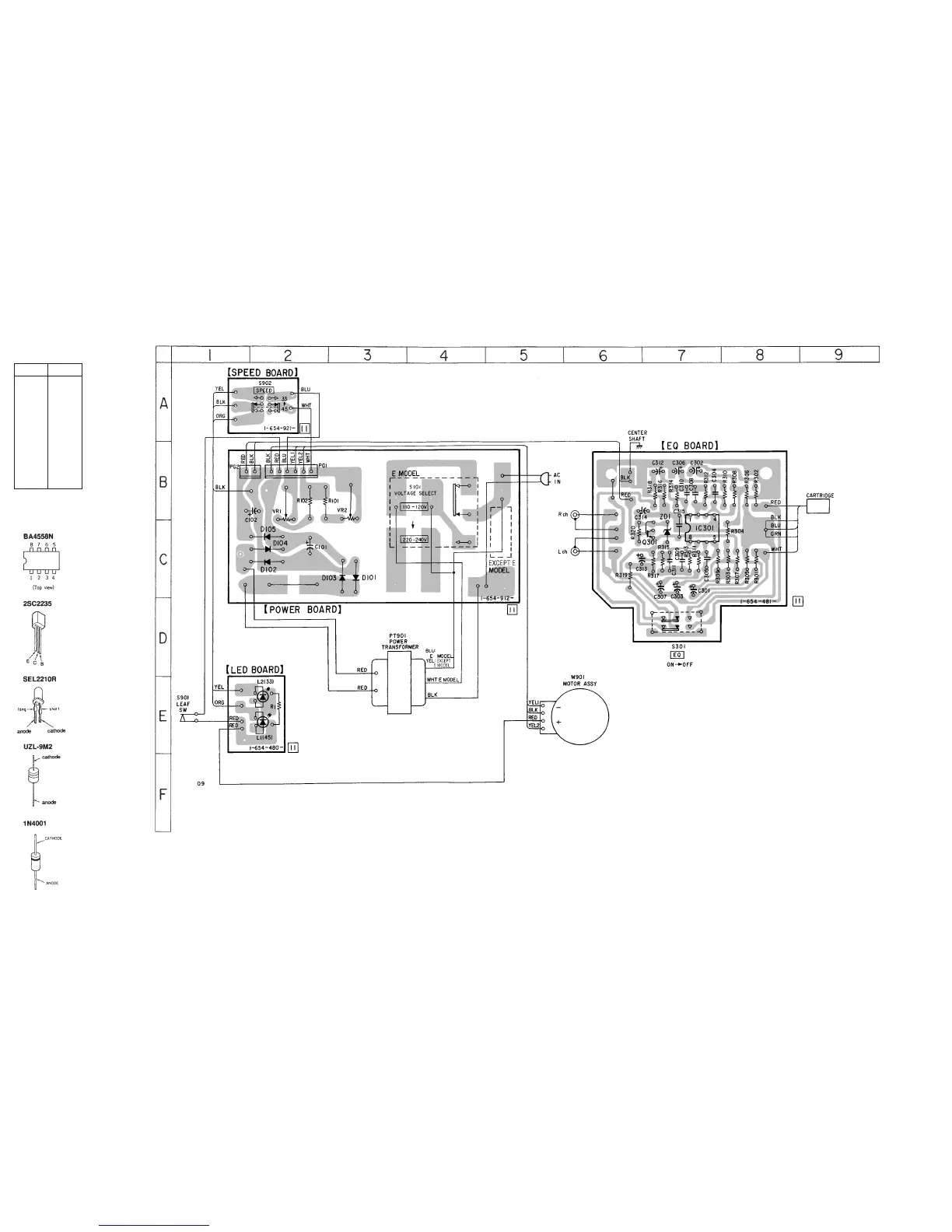

2-1. PRINTED WIRING BOARDS
PS-J10
– 3 –
– 4 –
SECTION 2
DIAGRAMS
Ref. No. Location
• Semiconductor
Location
D101 C-3
D102 C-2
D103 C-3
D104 C-2
D105 C-2
IC301 C-7
L1 E-2
L2 E-2
Q301 C-7
ZD1 C-7
• Semiconductor Lead Layouts
Note:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
