SECTION 3

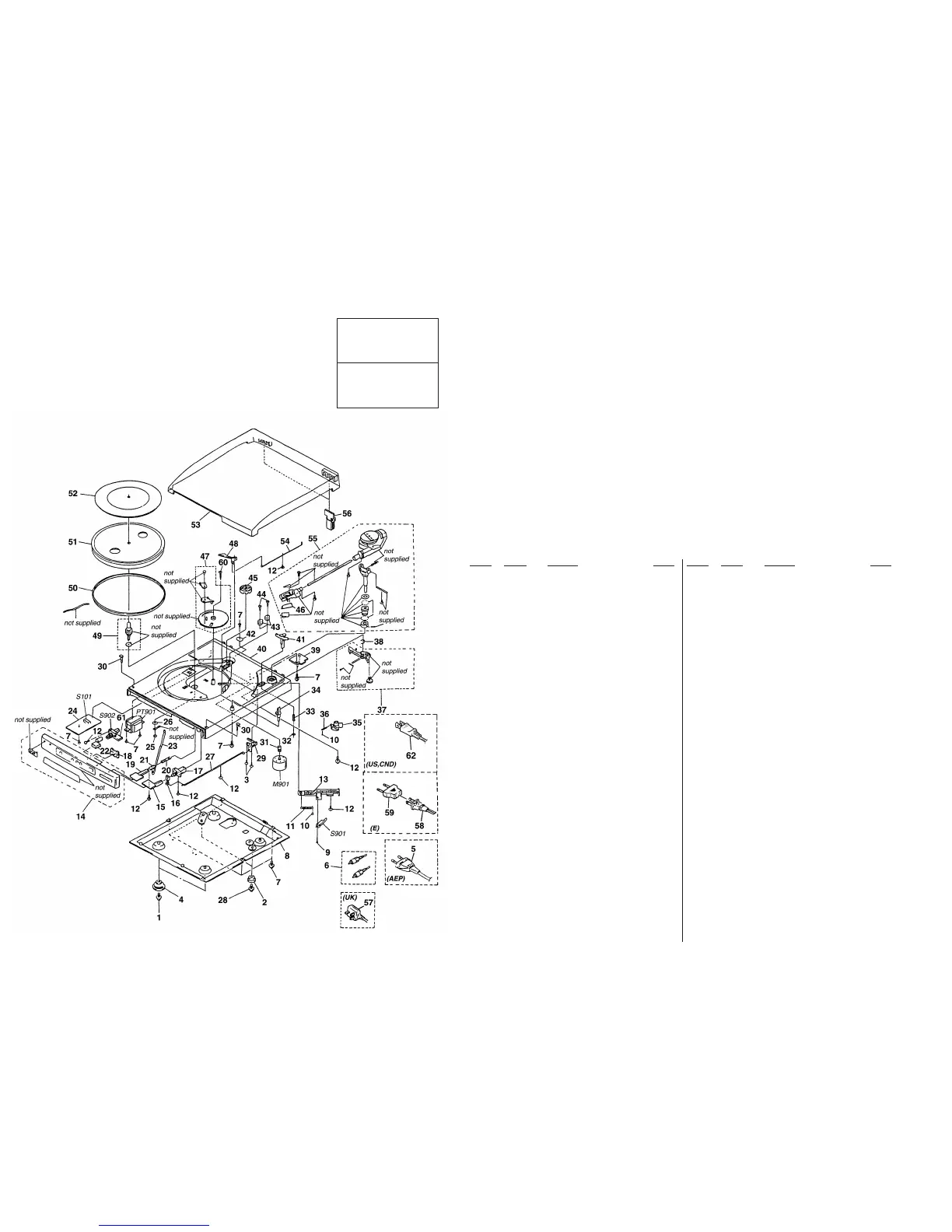

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of this parts list.
• Abbreviation
CND: Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 34 4-970-326-01 ARM STAND
* 35 4-970-301-01 ELEVATOR
* 36 4-970-305-01 SPRING ELEVATOR
37 A-4660-773-A ARM ASSY, FEED
* 38 4-970-306-01 E-RING
* 39 1-654-481-11 EQ BOARD
* 40 4-970-290-01 CABINET UPPER (BLACK)
* 40 4-970-290-11 CABINET UPPER (SILVER)
* 41 4-970-295-01 ELEVATION ARM
42 4-960-209-01 STOPPER CORD
43 4-960-182-01 CUSHION MOTOR
* 44 4-970-325-01 MOTOR SETTENG SCREW
45 4-970-308-01 ADAPTOR E.P
46 4-951-290-01 STYLUS (CN-234)
47 A-4660-485-A RING GEAR ASSY
* 48 4-970-300-01 CUT LEVER
49 A-4660-772-A SHAFT ASSY, CENTER
50 4-960-222-01 BELT RUBBER
* 51 4-971-209-01 PLATTER
52 4-971-208-01 RUBBER SHEET
53 4-970-309-01 COVER DUST
* 54 4-970-299-01 LINK CUT
55 A-4660-769-A ARM ASSY, TONE
56 A-4660-774-A HINGE ASSY
! 57 1-696-570-21 CORD, POWER (UK)
! 58 1-590-074-11 CORD, POWER (E)
! 59 1-569-007-11 ADAPTER, CONVERSION 2P (E)
60 4-960-218-01 WASHER SCREW TAP WPH
* 61 1-654-921-11 SPEED BOARD
! 62 1-777-361-11 CABLE, INTERFACE (MAC) (US, CND)
M901 1-698-210-11 MOTOR
! PT901 1-427-716-11 TRANSFORMER, POWER (AEP,UK)
! PT901 1-427-857-11 TRANSFORMER, POWER (E)
! PT901 1-431-954-11 TRANSFORMER, POWER (US,CND)
! S101 1-572-675-11 SWITCH, POWER VOLTAGE CHANGE (E)
S901 1-692-692-11 LEAF S/W
S902 1-762-224-11 SWITCH, PUSH (SPEED)(1 KEY)
* 1 4-970-314-01 FOOT SCREW
2 4-970-312-01 RUBBER FOOT
* 3 4-970-328-01 WASHER SCREW TAP WPH
4 4-970-313-01 RUBBER FOOT
! 5 1-575-651-11 CORD, POWER (AEP)
6 1-555-116-11 CORD, PHONE
7 4-960-220-01 SCREW TAP WPH
* 8 4-970-307-01 COVER BOTTOM
9 4-970-310-01 SCREW TAP WPH
* 10 4-970-329-01 STOPPER SPRING
* 11 4-970-330-01 ACTUATING ARM SPRING
12 4-960-217-01 WASHER SCREW TAP WPH
* 13 4-970-298-01 ACTUATING ARM
14 A-4384-983-A PANEL ASSY, FRONT (SILVER)
14 A-4660-791-A PANEL ASSY, FRONT (BLACK)
15 4-970-322-01 CUE KNOB
* 16 4-970-323-01 CUE LINK HOLDER
17 1-572-744-11 SWITCH, PUSH (1 KEY)(ARM LIFTER)
* 18 1-654-480-11 LED BOARD
19 4-970-294-01 KNOB REJECT (BLACK)
19 4-970-294-11 KNOB REJECT (SILVER)
* 20 4-970-321-01 RETURN
* 21 4-970-320-01 HOLDER REJECT
22 4-970-293-01 KNOB SPEED (BLACK)
22 4-970-293-11 KNOB SPEED (SILVER)
* 23 4-970-311-01 LINK REJECT
* 24 1-654-912-11 POWER BOARD
* 25 4-970-303-01 NUT HEX
* 26 4-970-302-01 WASHER PLANE
* 27 4-970-324-01 QUEING LINK
* 28 4-970-316-01 SCREW TAP WPH
* 29 4-970-327-01 CUE LEVER
30 4-970-291-01 CUSHION DUST COVER
31 4-970-304-01 PULLEY MOTOR
* 32 4-970-297-01 WASHER C.S
* 33 4-970-296-01 SPRING ELEVATION
– 7 –
– 8 –
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
