TONEARM (PS-LX430, 433)

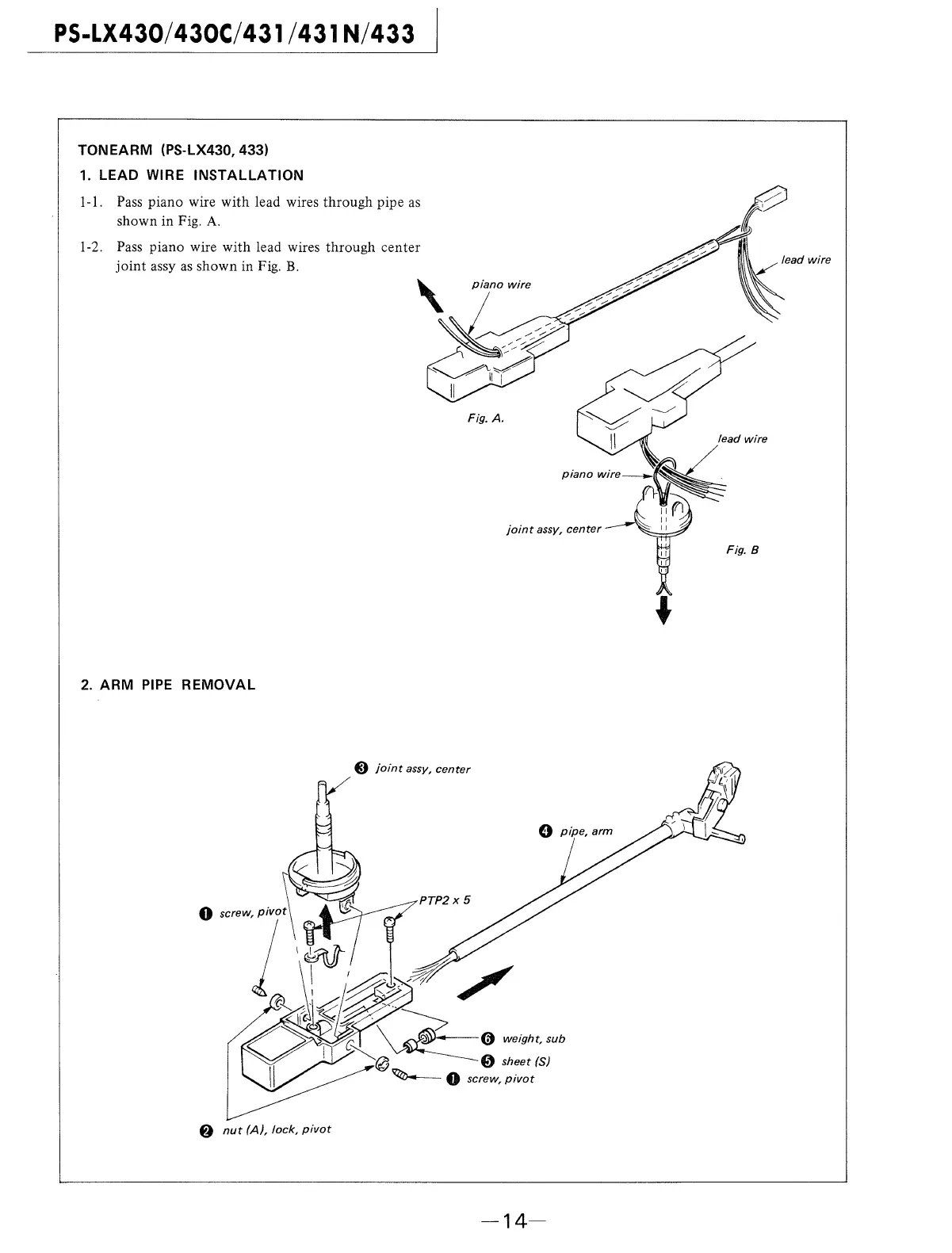

1. LEAD WIRE INSTALLATION
1-1. Pass piano wire with lead wires through pipe as
shown in Fig. A. (-
1-2. Pass piano wire with lead wires through center
joint assy as shown in Fig. B.
\ Piano wire
Fig. A.
rt lead wire
Piano wire ——»
(+
joint assy, center
Fig. B
2. ARM PIPE REMOVAL
@ joint assy, center
© pipe, arm
SL
\
8
BO
0
wenn
a
Gj @ sheet (S)
Qe @ screw, pivot
@ nut (A), lock, pivot
lead wire
