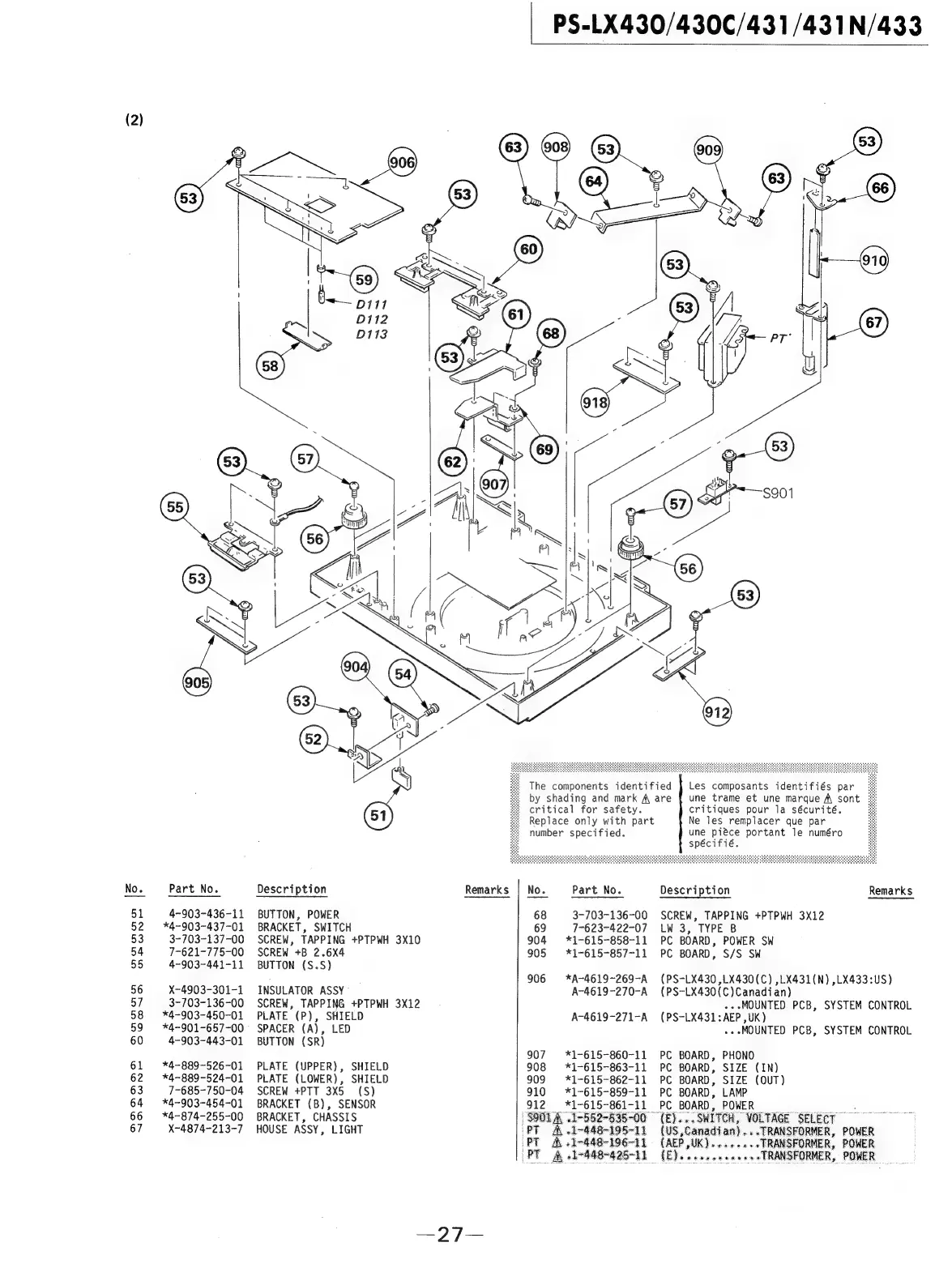

Sony PS-LX430 - Page 21

(2)
Part No.
4-903-436-11
*4-903-437-01
3-703-137-00
7-621-775-00
4-903-441-11
X-4903-301-1
3-703-136-00
*4-903-450-01
*4-901-657-00 ©
4-903-443-01
*4-889-526-01
*4-889-524-01
7-685-750-04
*4-903-454-01
*4-874-255-00
X~-4874-213-7
Description
BUTTON, POWER
BRACKET, SWITCH
SCREW, TAPPING +PTPWH 3X10
SCREW +B 2.6X4
BUTTON (S.S)
INSULATOR ASSY
SCREW, TAPPING +PTPWH 3X12
PLATE (P), SHIELD
SPACER (A), LED
BUTTON (SR)
PLATE (UPPER), SHIELD
PLATE (LOWER), SHIELD
SCREW +PTT 3X5 (S)
BRACKET (B), SENSOR
BRACKET, CHASSIS
HOUSE ASSY, LIGHT
—27—
Remarks
PS-LX430/430C€/431/431N/433
The components identified
by shading and mark A are
critical for safety.
Replace only with part
number specified.
No.
68
69
904
905
906
907
908
909
910
912
PT
Part No.
3-703-136-00
7-623-422-07
*1-615-858-11
*1-615-857-11
*A-4619-269-A
A-4619-270-A
A-4619-271-A
*1-615-860-11
*1-615-863-11
*1-615-862-11
*1-615-859-11
*1-615-861-11
_ S9OLA, .1-552-635-00
PT A .1-448-195-11
PT A .1-448-196-11
PT A -1-448-425-11
Les composants identifiés par
une trame et une marque A sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le numéro
spécifié.
Remarks
Description
SCREW, TAPPING +PTPWH 3X12
LW 3, TYPE B
PC BOARD, POWER SW
PC BOARD, S/S SW
{PS-LX430 ,LX430(C) ,LX431(N) ,LX433:US)
(PS-LX430(C)Canadian)
-- MOUNTED PCB, SYSTEM CONTROL
(PS-LX431: AEP , UK)
..-MOUNTED PCB, SYSTEM CONTROL
PC BOARD, PHONO
PC BOARD, SIZE (IN)
PC BOARD, SIZE (OUT)
PC BOARD, LAMP
PC BOARD, POWER ee ggg te
(E)...SWITCH, VOLTAGE SELECT
(US Canadian)... TRANSFORMER, POWER
(AEP UK). «.++0++TRANSFORMER, POWER
E)eesseessoeeseTRANSFORMER, POWER
