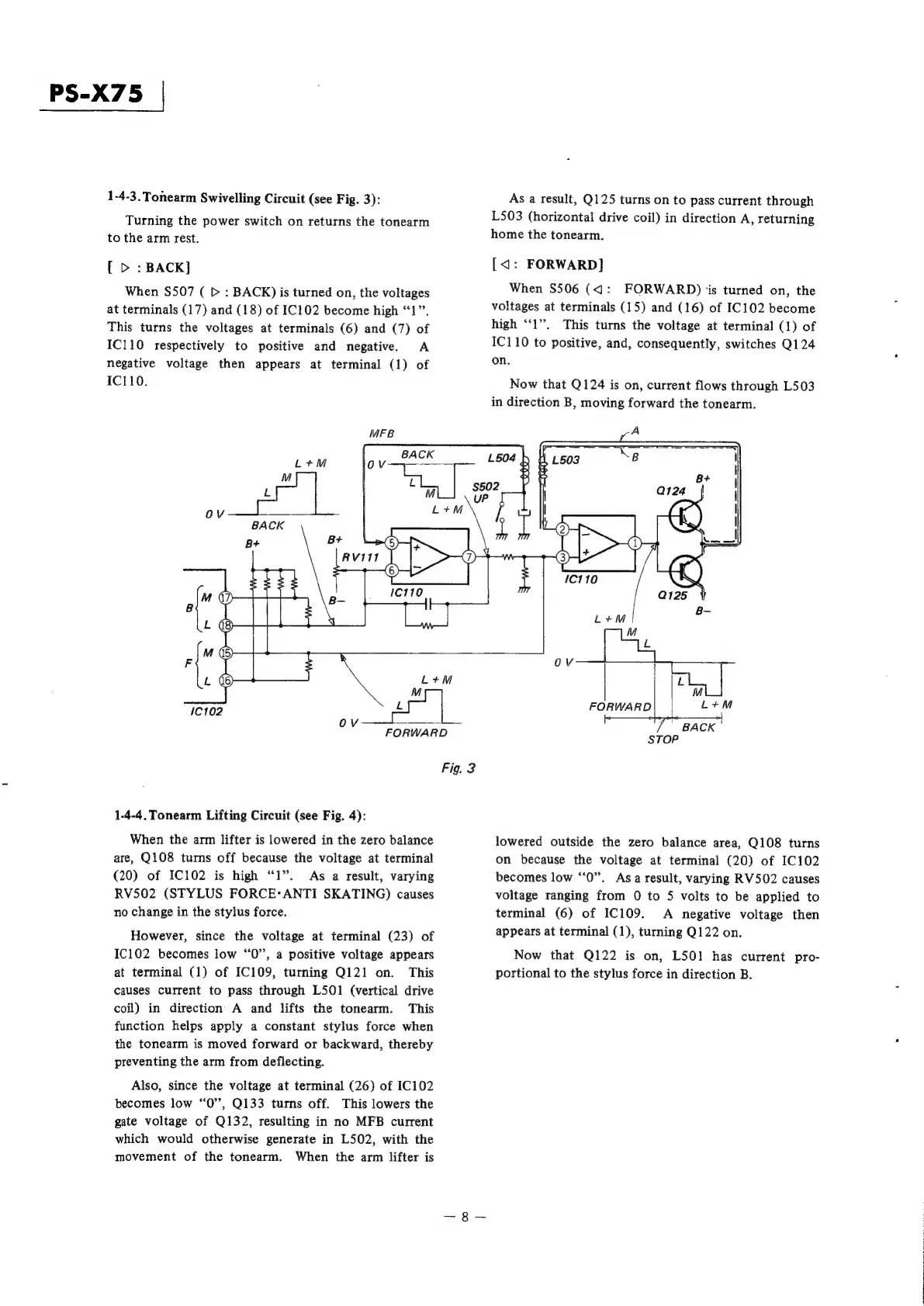

PS-X75
|
1-4-3.
Tonearm
Swivelling
Circuit
(see
Fig.
3):
Turning
the
power
switch
on
returns
the
tonearm
to
the
arm
rest.
[
>
:
BACK]
When
S507
(
>
:
BACK)
is
turned
on,
the
voltages
at
terminals
(17)
and
(18)
of
IC102
become
high
“1”.
This
turns
the
voltages
at
terminals
(6)
and
(7)
of
IC110
respectively
to
positive
and
negative.
<A
negative
voltage
then
appears
at
terminal
(1)
of
IC110.
FORWARD
1-4-4,
Tonearm
Lifting
Circuit
(see
Fig.
4):
When
the
arm
lifter
is
lowered
in
the
zero
balance
are,
Q108
turns
off
because
the
voltage
at
terminal
(20)
of
IC102
is
high
“1”.
As
a
result,
varying
RV502
(STYLUS
FORCE:ANTI
SKATING)
causes
no
change
in
the
stylus
force.
However,
since
the
voltage
at
terminal
(23)
of
IC102
becomes
low
“0”,
a
positive
voltage
appears
at
terminal
(1)
of
I1C109,
turning
Q121
on.
This
causes
current
to
pass
through
L501
(vertical
drive
coil)
in
direction
A
and
lifts
the
tonearm.
This
function
helps
apply
a
constant
stylus
force
when
the
tonearm
is
moved
forward
or
backward,
thereby
preventing
the
arm
from
deflecting.
Also,
since
the
voltage
at
terminal
(26)
of
1C102
becomes
low
“0”,
Q133
turns
off.
This
lowers
the
gate
voltage
of
Q132,
resulting
in
no
MFB
current
which
would
otherwise
generate
in
L502,
with
the
movement
of
the
tonearm.
When
the
arm
lifter
is
Fig.
3
As
a
result,
Q125
turns
on
to
pass
current
through
L503
(horizontal
drive
coil)
in
direction
A,
returning
home
the
tonearm.
[<d:
FORWARD]
When
S506
(<:
FORWARD)
is
turned
on,
the
voltages
at
terminals
(15)
and
(16)
of
IC102
become
high
“1”,
This
turns
the
voltage
at
terminal
(1)
of
IC110
to
positive,
and,
consequently,
switches
Q124
on.
Now
that
Q124
is
on,
current
flows
through
L503
in
direction
B,
moving
forward
the
tonearm.
lowered
outside
the
zero
balance
area,
Q108
turns
on
because
the
voltage
at
terminal
(20)
of
IC102
becomes
low
“0”.
Asa
result,
varying
RV502
causes
voltage
ranging
from
0
to
5
volts
to
be
applied
to
terminal
(6)
of
IC109.
A
negative
voltage
then
appears
at
terminal
(1),
turning
Q122
on.
Now
that
Q122
is
on,
L501
has
current
pro-
portional
to
the
stylus
force
in
direction
B.
