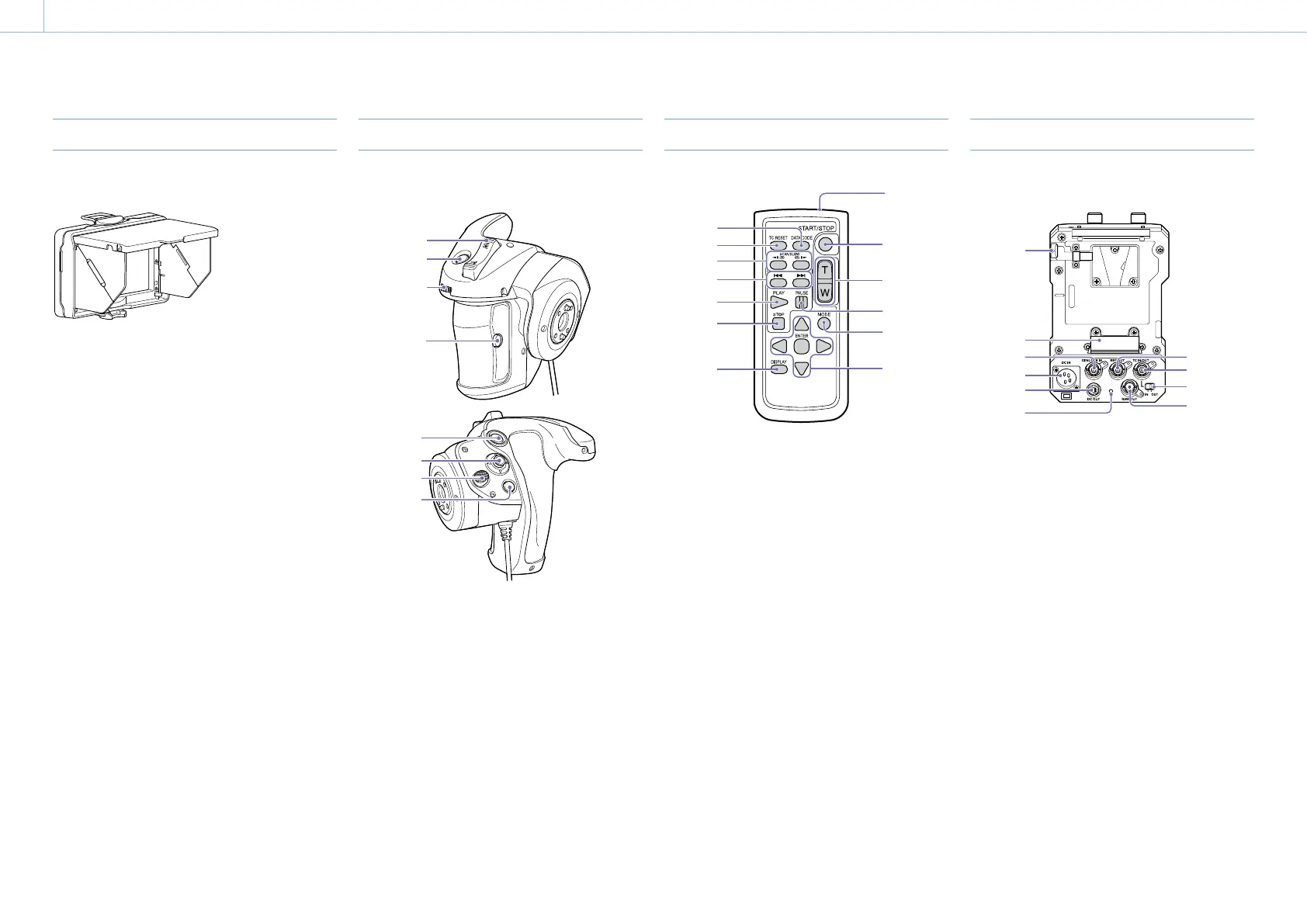

1. Overview: Location and Function of Parts
8
Viewfinder Hood
For details about attaching the viewfinder hood
(supplied), see page 17.
Grip Remote Control
For details about attaching the grip remote control
(supplied), see page 18.
1
2
3
4
5
6
7
8
1. Zoom lever
2. ASSIGN (assignable) 4 button
3. Assignable dial
4. ASSIGN (assignable) 6 button
5. Record START/STOP button
6. Multi selector
7. Grip rotation button
8. ASSIGN (assignable) 5 button
Infrared Remote Control
8
9
10
11
12
13
1
2
3
4
5
6
7
1. DATA CODE button
Not used on this version.
2. TC RESET button
3. SCAN/SLOW button
4. / (PREV/NEXT) buttons
5. PLAY button
6. STOP button
7. DISPLAY button
8. Remote control transmitter
9. START/STOP button
10. Zoom lever
11. PAUSE button
12. MODE button
Not used on this version.
13. ////ENTER buttons
Extension Unit (Option)
For details about attaching an extension unit
(option), see page 26.
1
2
3
4
7
8
9
10
5
6
1. BATT RELEASE button
2. Battery connector
3. GENLOCK IN connector
4. DC IN connector
5. DC OUT connector
6. Recording indicator
7. REF OUT connector
8. TC IN/OUT connector
9. TC IN/OUT switch
10. RAW OUT connector
