Step 4: Connecting the Audio Cords
Basic Hookups and Settings
1
“MEGALOGIC” is a registered trademark of Grundig Corporation.
2
“EASYLINK” and “CINEMALINK” are trademarks of Philips
Corporation.
3
“Q-Link” is a trademark of Panasonic Corporation.
4
“EURO VIEW LINK” is a trademark of Toshiba Corporation.
5
“T-V LINK” is a trademark of JVC Corporation.
z Hint
SMARTLINK also works with TVs having EPG Timer Control and
Now Recording functions. For details, refer to the operating instructions
supplied with your TV.
Notes
• SMARTLINK features are not available for devices connected via the
DVD recorder’s LINE 3/DECODER jack.
• Not all TVs respond to the functions above.

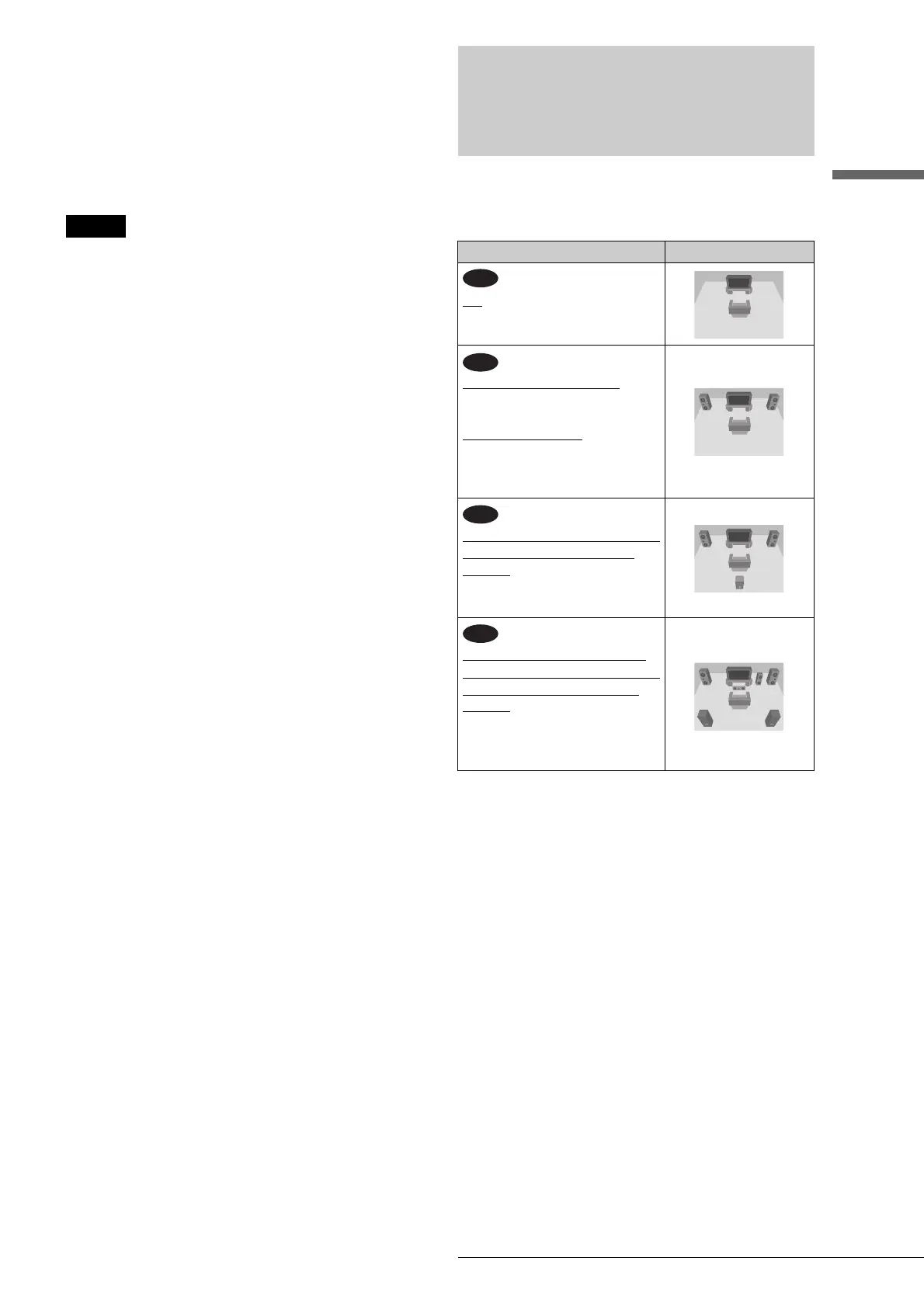

Step 4: Connecting the
Audio Cords
Select the connection that best suits your system. Be sure to read
the instructions for the components you wish to connect.
1
Manufactured under license from Dolby laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of
Dolby Laboratories.
2
“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
Connection Your setup
TV
• Surround effects: Dynamic, Wide
Stereo amplifier (receiver) and
two speakers
• Surround effects: Standard
MD deck/DAT deck
• Surround effects: None
AV amplifier (receiver) having a
Dolby Surround (Pro Logic)
decoder
1
and 3 to 6 speakers
• Surround effects: Dolby Surround
(Pro Logic)
AV amplifier (receiver) with a
digital input jack having a Dolby
Digital, MPEG audio, or DTS
2
decoder
and 6 speakers
• Surround effects: Dolby Digital
(5.1ch), DTS (5.1ch), MPEG
audio
A
B
C
D
,continued

Sony RDR GX7 Specifications

General

I/O ports	Analog AV In/Out S-Video In/Out Component Video Out DV Terminal (i.LINK) 2 x Scart (1 including RGB in) Digital Audio Out
