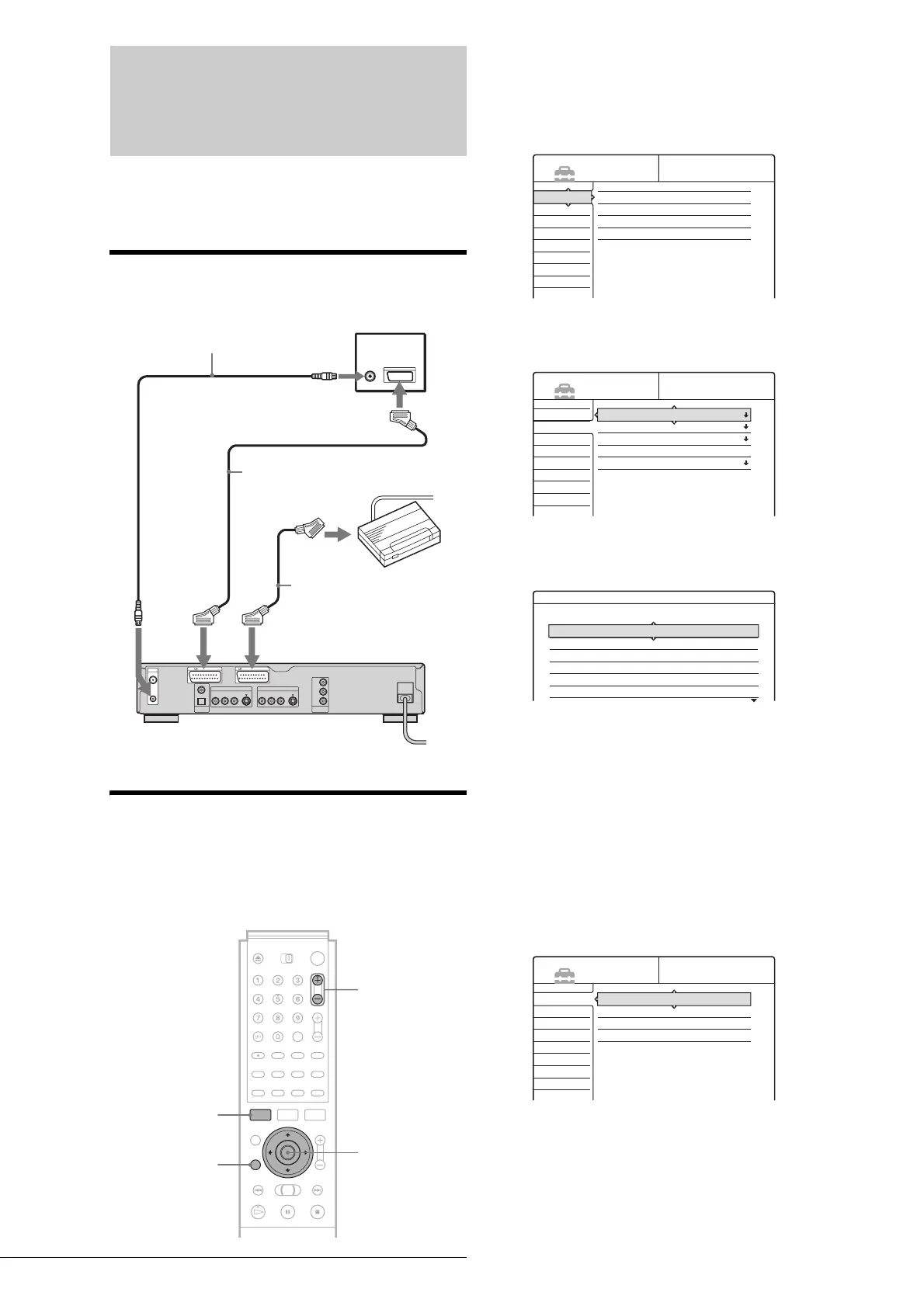

Connecting a PAY-TV/Canal Plus Decoder
Connecting a PAY-TV/
Canal Plus Decoder
You can watch or record PAY-TV/Canal Plus programmes if
you connect a decoder (not supplied) to the recorder. Disconnect
the recorder’s mains lead from the mains when connecting the
decoder.
Connecting a decoder
Setting PAY-TV/Canal Plus channels
To watch or record PAY-TV/Canal Plus programmes, set your
recorder to receive the channels using the on-screen display.
In order to set the channels correctly, be sure to follow all of the
steps below.
a Press SYSTEM MENU.
The System Menu appears.
b Press M/m to select “SETUP,” then press
ENTER.
c Press M/m to select “Video,” then press
ENTER.
d Press M/m to select “Scart Setting,” then
press ENTER.
e Press M/m to select “Video” or “RGB” for
“Line1 Output,” “Decoder” for “Line3
Input” and “Video” for “Line3 Output,”
then press ENTER.
Video Setup appears again.
f Press RETURN to return the cursor to the
left column.
g Press M/m to select “Settings,” then press
ENTER.
~ AC IN
LINE 2 OUT
S VIDEOVIDEOR-AUDIO-L
COMPONENT
VIDEO OUT
C B
Y
C R
LINE 4 IN
S VIDEOVIDEOR-AUDIO-L
LINE 1 - TV
AERIAL
IN
OUT
LINE 3/DECODER
DIGITAL OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
OPTICAL
TV
Aerial cable
(supplied)
SCART (EURO AV)
cord (not supplied)
PAY-TV/Canal
Plus decoder
to AERIAL
OUT
to i LINE 3/DECODER
DVD recorder
to AERIAL IN
to SCART
(EURO AV) input
SCART (EURO AV)
cord (not supplied)
to i
LINE1-TV
SYSTEM
MENU
RETURN
PROG +/–
</M/m/,,
ENTER
Settings
Video
Audio
Features
Options
Easy Setup
Channel Setting
Channel List
Clock
Language
SETUP
Settings
Video
Audio
Features
Options
Easy Setup
TV Type :
Pause Mode :
Component Out :
Scart Setting
Line4 input :
16 : 9
Auto
Off
Video
SETUP
Video - Scart Setting
Line1 Output Line3 Input Line3 Output
Video
Video
Video
S Video
S Video
RGB
Video/RGB
Video/RGB
Decoder
S Video
S Video
Video/RGB
Video
S Video
Video
Video
S Video
Video
Settings
Video
Audio
Features
Options
Easy Setup
Channel Setting
Channel List
Clock
Language
SETUP
