Sony RDR GX7 Hookups And Settings

8

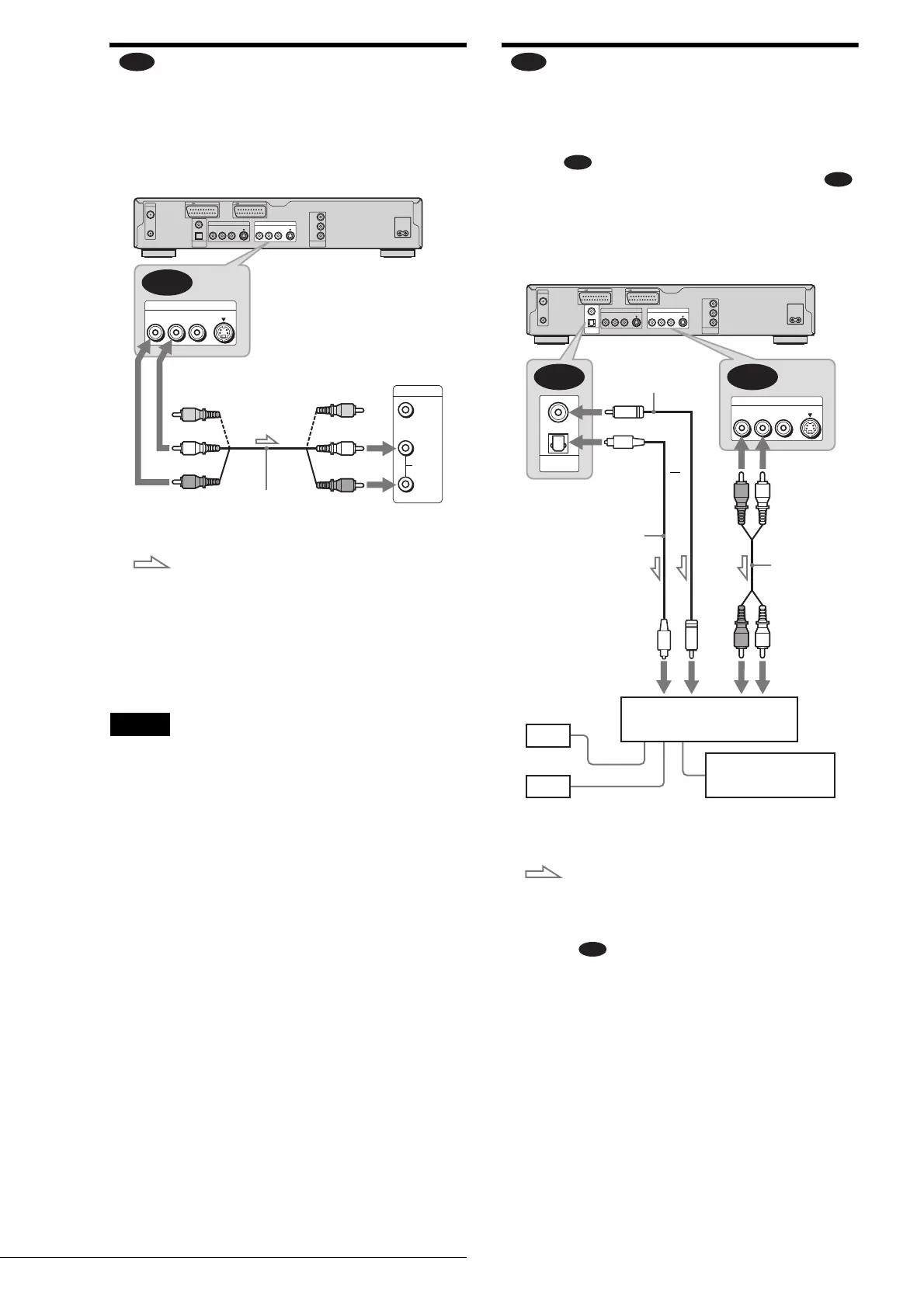

Step 4: Connecting the Audio Cords
Connecting to your TV
This connection will use your TV’s speakers for sound. If you
use the SCART (EURO AV) cord in pattern A of “Step 3:
Connecting the Video Cords” (page 5), you do not have to
connect audio cords to your TV.
* The yellow plug is used for video signals (page 6).
z Hint
When connecting to a monaural TV, use a stereo-mono conversion cord
(not supplied). Connect the LINE 2 OUT (R-AUDIO-L) jacks to the
TV’s audio input jack.
Note
Do not connect the LINE 4 IN (R-AUDIO-L) jacks to your TV’s audio
output jacks at the same time.
Connecting to a stereo amplifier
(receiver) and 2 speakers/Connecting
to an MD deck or DAT deck
If your stereo amplifier (receiver) only has audio input jacks L
and R, use . If your amplifier (receiver) has a digital input
jack, or when connecting to an MD deck or DAT deck, use .
In this case, you can also connect the recorder directly to the MD
deck or DAT deck without using your stereo amplifier
(receiver).
z Hint
For connection , you can use the supplied audio/video cord instead
of using a separate stereo audio cord.
A
~ AC IN
LINE 2 OUT
S VIDEOVIDEOR-AUDIO-L
COMPONENT
VIDEO OUT
C B
Y
C R
LINE 4 IN
S VIDEOVIDEOR-AUDIO-L
LINE 1 - TV
AERIAL
IN
OUT
LINE 3/DECODER
DIGITAL OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
OPTICAL
LINE 2 OUT
S VIDEOVIDEOR-AUDIO-L
A
AUDIO
INPUT
L
R
VIDEO
DVD recorder
to LINE 2 OUT (R-AUDIO-L)
TV
(yellow)
(white)
(red)
(yellow)*
(white)
(red)
Audio/video cord (supplied)
: Signal flow
B
B-1
B-2
~ AC IN
LINE 2 OUT
S VIDEOVIDEOR-AUDIO-L
COMPONENT
VIDEO OUT
C B
Y
C R
LINE 4 IN
S VIDEOVIDEOR-AUDIO-L
LINE 1 - TV
AERIAL
IN
OUT
LINE 3/DECODER
DIGITAL OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
OPTICAL
DIGITAL OUT
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
OPTICAL
LINE 2 OUT
S VIDEOVIDEOR-AUDIO-L
B-2 B-1
DVD recorder
Coaxial digital cord
(not supplied)
to DIGITAL OUT
(COAXIAL or OPTICAL)
or
to LINE 2 OUT
(R-AUDIO-L)
(white)(red)
Stereo audio
cord (not
supplied)
(white)(red)
to audio input
Stereo amplifier (receiver)
MD deck/DAT deck
[Speakers]
Front (L)
Front (R)
to coaxial or optical
digital input
Optical digital cord
(not supplied)
: Signal flow
B-1

Sony RDR GX7 Specifications

General

I/O ports	Analog AV In/Out S-Video In/Out Component Video Out DV Terminal (i.LINK) 2 x Scart (1 including RGB in) Digital Audio Out
