Sony RDR-GXD455 - Page 73

6-13

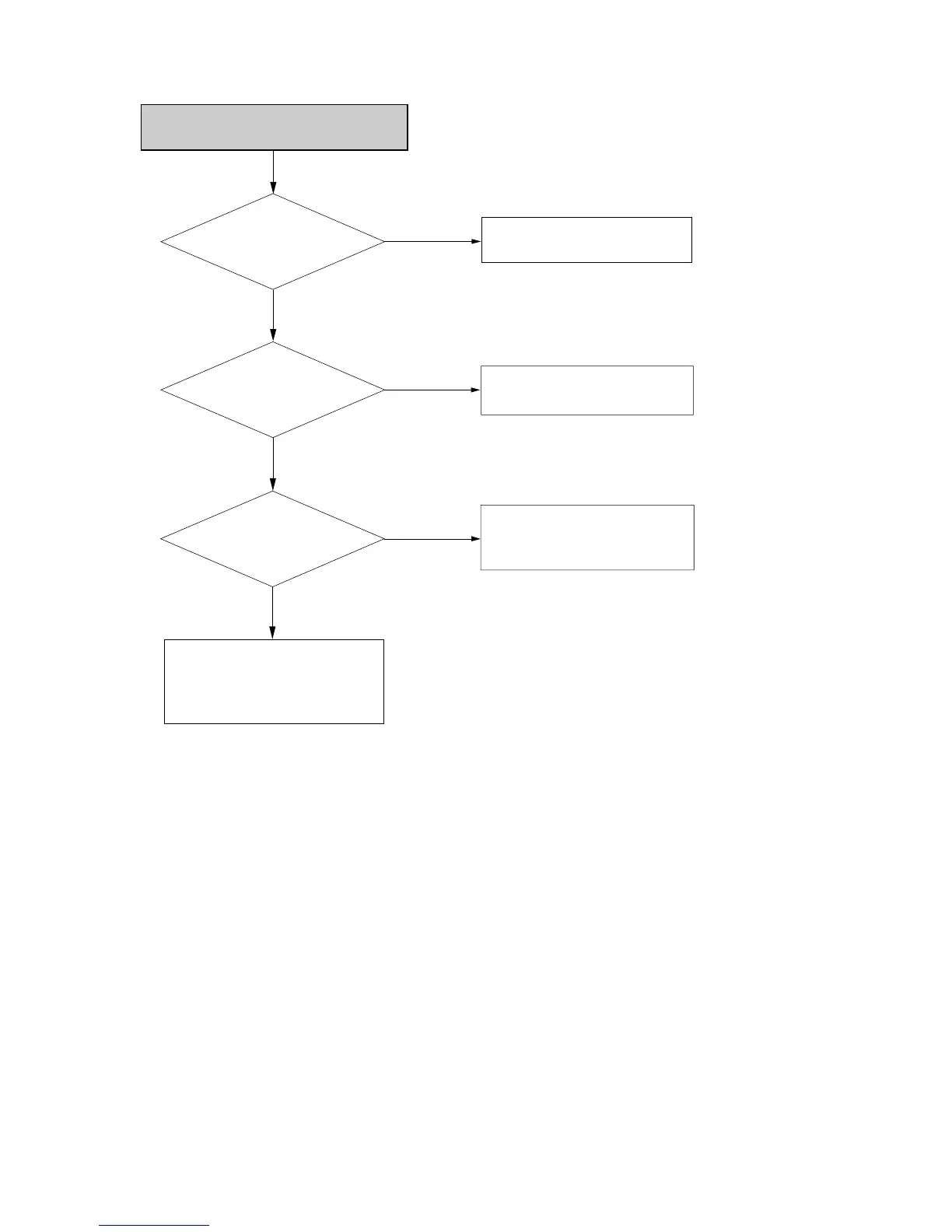

Line2 S-Video Video Input Error
Check Front
JACK (SVideo input signal)
and CN02 (Pin # 3, 5)
No
Check VCC of AVIC1and peripheral
parts of Clock oscillation
(Pin # 53, 54) of AVIC1
No
Yes
Yes
Check AVIC1
(Pin # 28, 36)
Check VCC and peripheral parts of
AVIC1
No
Yes
Check AVIC1
(Pin # 75, 76, 79-84)
Check peripheral parts of Front Jack
and cable and connector of CN02.
1. Check VCC of IC101 and peripheral
parts of Clock oscillation
(IC105 Pin # 1, 2, 14)
2. Refer to the “ CVBS output error”
