Guide to Parts and Controls
For more information, see the pages in parentheses.

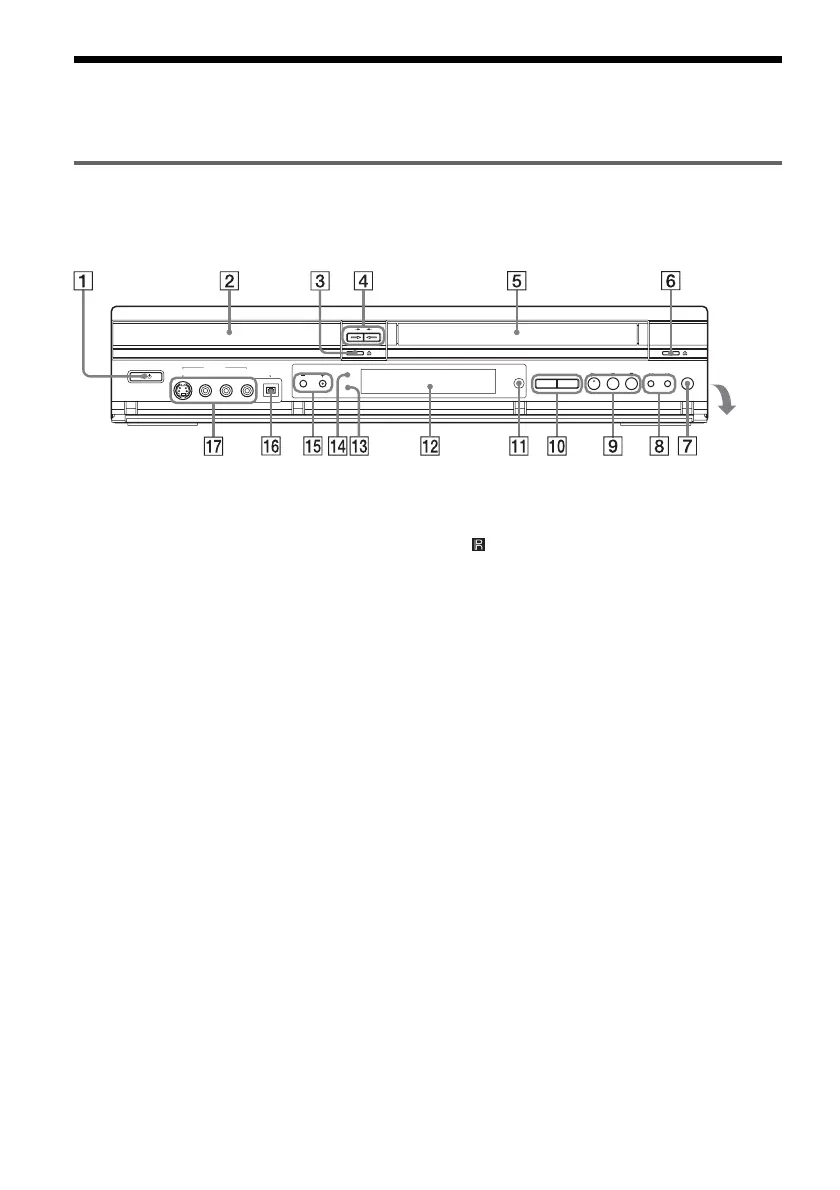

Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
A "/1 (on/standby) button (22)
B Disc tray (32, 46, 89)
C A (open/close) button (32, 46, 89)
D DVD t button (83)
T VIDEO button (82)
E Tape compartment (67, 74)
F A (eject) button (67)
G z REC (record) button (46, 74)
H m/M (rewind/fast-forward) buttons
(35)
I H (play) button* (32, 67)
X (pause) button (33, 46, 69, 74)
x (stop) button (32, 46, 67, 74)
J SELECT DVD/VIDEO buttons (32, 46, 67,
74)
K (remote sensor) (19)
L Front panel display (44, 71)
M SYNCHRO REC indicator (50, 78)
N PROGRESSIVE indicator (16, 96)
O CHANNEL/TRACKING +/– buttons* (20,
46, 68, 74)
P DV IN jack (88)
Q LINE 2 IN (S VIDEO/VIDEO/AUDIO L/
R) jacks (26)
* H and CHANNEL + buttons have a tactile dot. Use
the tactile dot as a reference.
Open the
cover
