Hookups and Settings
Step 4: Connecting to Your AV Amplifier (Receiver)

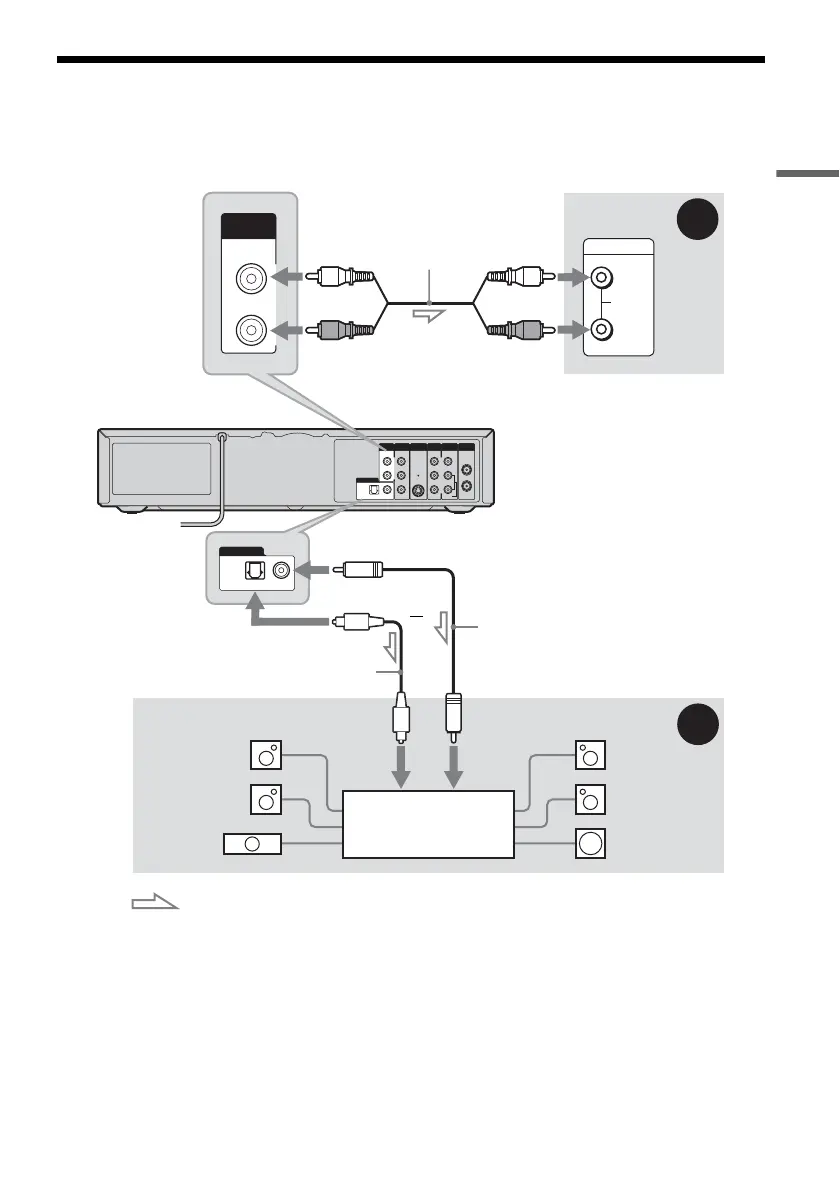

Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver).
This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).
IN
L
R
VIDEO
AUDIO
OUT
VHF/UHFLINE OUT
VIDEO
YL
P
B R
P
R
AUDIO
LINE 1 IN AUDI O OUT S VIDEO OUT
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL COAXIAL
AUDIO
INPUT
L
R
L
R
AUDIO OUT
B
A
DIGITAL AUDIO OUT
OPTICAL COAXIAL
AV amplifier (receiver)
with a decoder
(red)
Audio cord
(not supplied)
: Signal flow
Coaxial digital cord
(not supplied)
to DIGITAL AUDIO OUT
(COAXIAL or OPTICAL)
to AUDIO OUT (L/R)
Optical digital cord (not supplied)
Rear (L)
VCR-DVD recorder
(white)
(white)
(red)
[Speakers]
Front (L)
[Speakers]
Rear (R)
Front (R)
Subwoofer
or
Center
to optical
digital input
to coaxial
digital input
AV amplifier (receiver)
,continued
