Appendix
Specifications
17
GB
Specifications
Input/output connectors
Control input/output
VISCA RS-232C OUT: Mini DIN 8-
pin type
VISCA RS-422: 9-pin type
TALLY IN/CONTACT OUT: 9-pin
type
Control signal format
9,600 bps/38,400 bps
Data: 8 bit
Stop bit: 1
Power connector
JEITA type4 (DC IN 12V)
General
Input voltage 12 V DC (10.8 to 13.2 V DC)
Current consumption
0.2 A max. (at 12 V DC), 2.4W
Operating temperature
0 ºC to 40 ºC (32 ºF to 104 ºF)
Storage temperature
-20ºC to +60ºC (-4ºF to 140ºF)
Dimensions 391.3 × 185 × 145.9 mm (w/h/d)
(15
1
/
2
× 7
3
/
8
× 5
3
/
4
inches)
Mass Approx. 950 g (2 lb 15 oz)
Supplied accessories
MPA-AC1 AC power adaptor (Sony) (1)
AC power cord (1)
RS-232C connecting cable (1)
RS-422 connector plug (2)
Operating Instructions (1)
Design and specifications are subject to change without
notice.

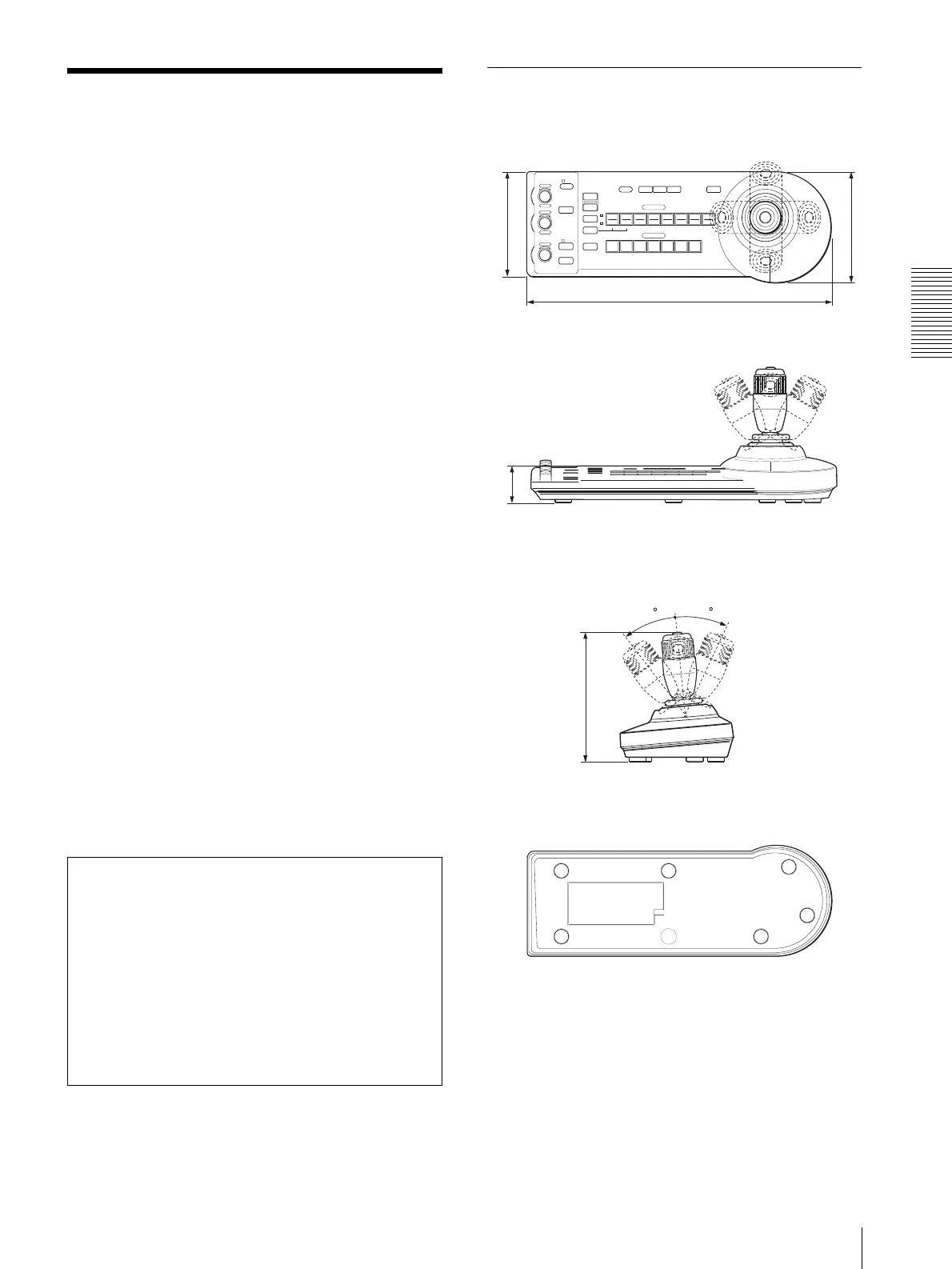

Dimensions
Note
Always verify that the unit is operating properly
before use. SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND INCLUDING, BUT
NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE
LOSS OF PRESENT OR PROSPECTIVE PROFITS
DUE TO FAILURE OF THIS UNIT, EITHER
DURING THE WARRANTY PERIOD OR AFTER
EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.
1
1
9
LOCK
MODE
VALUE
RESET
MENU
PRESET
SHIFT
L/R
DIRECTION
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
POWER
AUTO
MANUAL
AUTO
ONE PUSH
AF
234567
2
10
STD REV
3
11
4
POSITION
CAMERA
12
5
13
6
14
7
15
8
16
R
– +
BRIGHT
B
– +
FOCUS
NEAR FAR
145.9
(5
3
/
4
)
137.2
(5
1
/
2
)
391.3
(15
1
/2)
45.9
(1
13
/
16
)
185
(7
3
/
8
)
30
30
Unit: mm (inches)
Front
Bottom
Side
Top
