DCR-TRV9/TRV9E

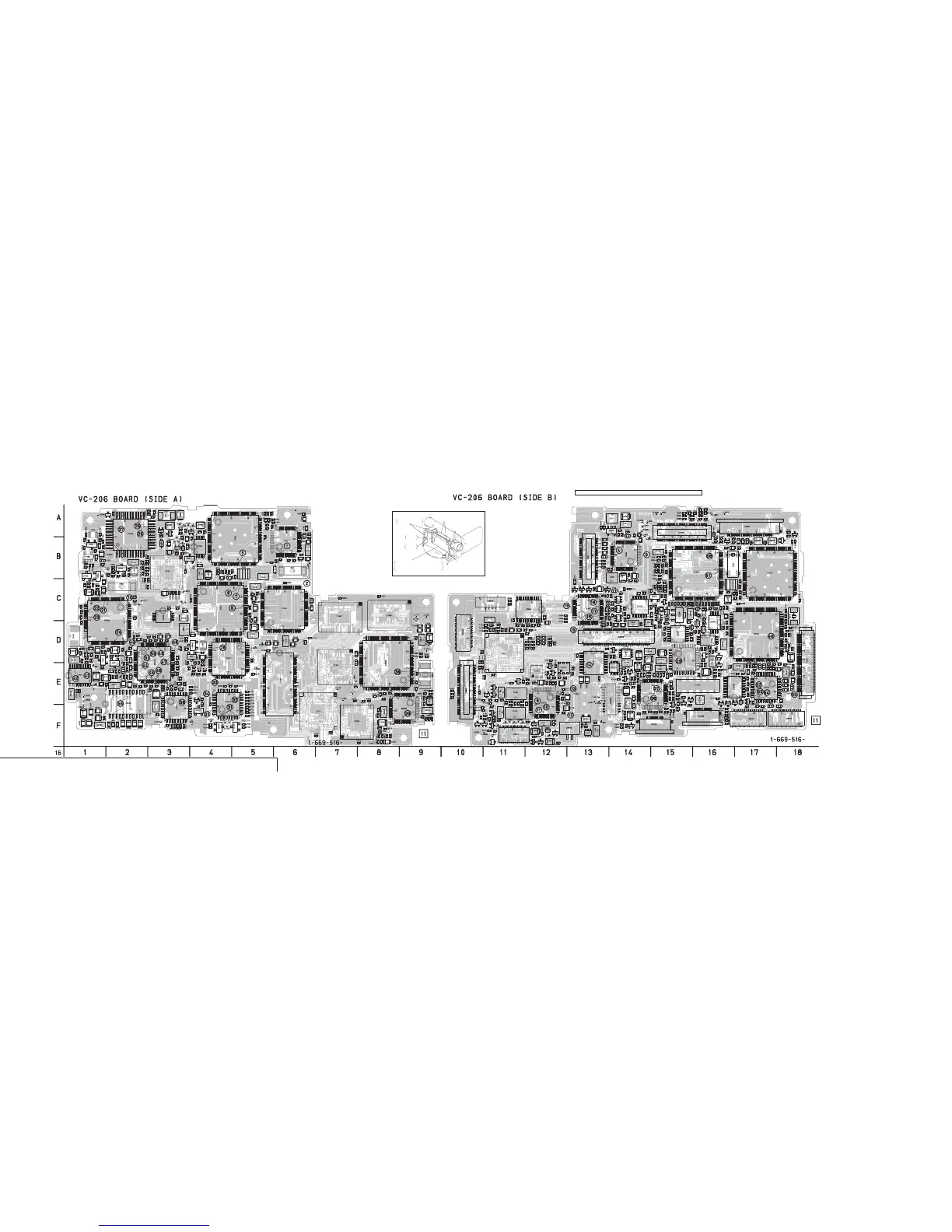

VC-206 (CAMERA, VIDEO IN/OUT, BLOCKING, ECC, TBC, CHCO, AUDIO PROCESS, RF INTERFACE, REC/PB HEAD AMP, DV PROCESS, SERVO, HI CONTROL) PRINTED WIRING BOARD
— Ref. No.: VC-206 Board; 10,000 Series —
FP-676
HEADPHONE LANC
S/S SWITCH
DD-106
POWER
SUPPLY
VC-206
CAMERA, VIDEO IN/OUT, BLOCKING,
ECC, TBC, CHCO, AUDIO PROCESS,
RF INTERFACE, REC/PB HEAD AMP,
DV PROCESS, SERVO, HI CONTROL
FP-647
(VIDEO AUDIO IN/OUT)
VI-148
(Except AEP, UK model)
(VIDEO INTERFACE)
CD-185
(CCD IMAGER)
FK-4580
(VTR FUNCTION SWITCH)
PS4580
POWER
SWITCH
4-15 4-16 4-17 4-18
CAMERA, VIDEO IN/OUT, BLOCKING, ECC, TBC, CHCO, AUDIO PROCESS, RF INTERFACE, REC/PB HEAD AMP, DV PROCESS, SERVO, HI CONTROL
VC-206
There are few cases that the part printed on this diagram isn’t mounted in this model.
