Sony RMT-809 - Loading Motor, Sensors, Switches) Schematic Diagrams

DCR-TRV9/TRV9E

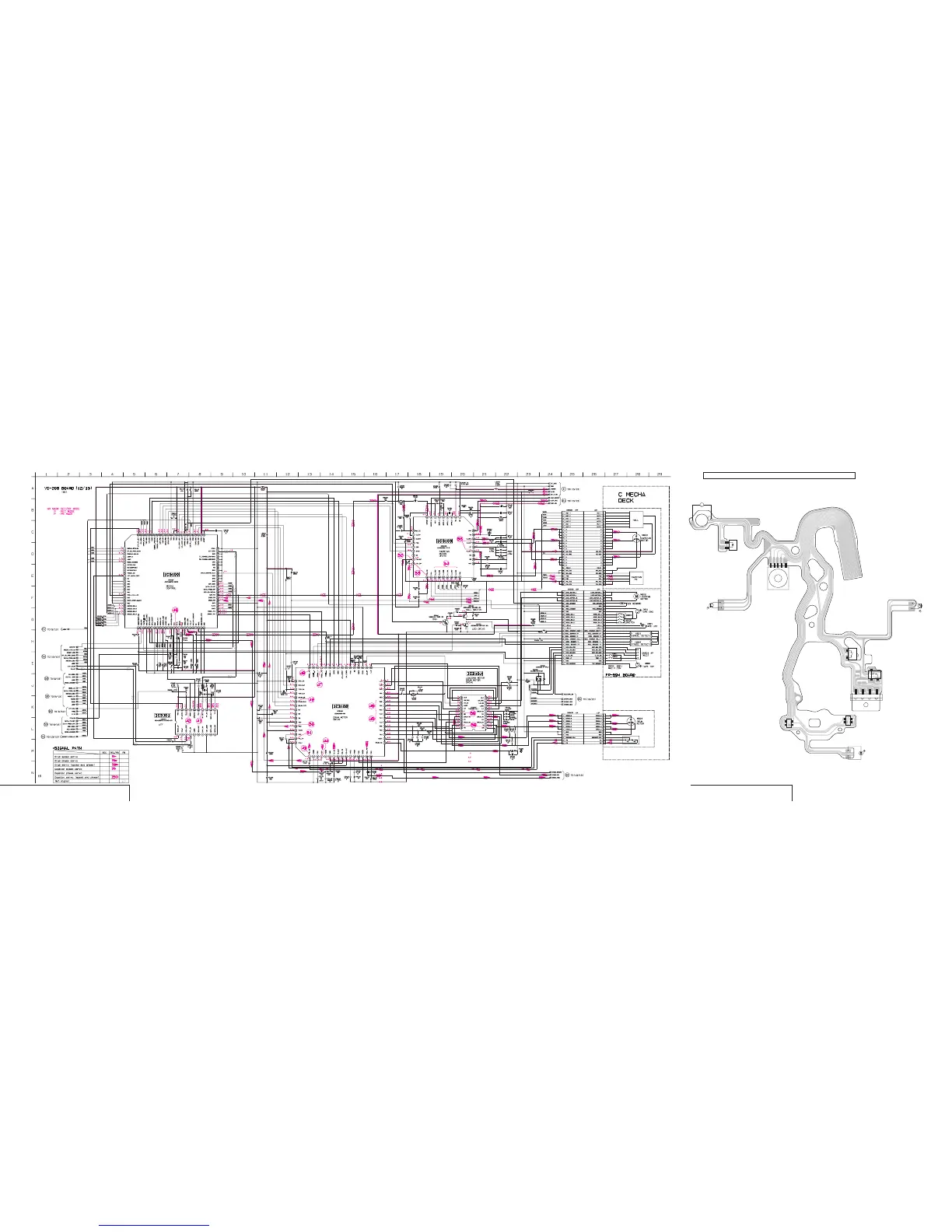

VC-206 (SERVO), FP-594 (LOADING MOTOR, SENSORS, SWITCHES) SCHEMATIC DIAGRAMS
— Ref. No.: VC-206 Board; 10,000 Series, FP-594 Board; 2,000 Series —
FP-594 (LOADING MOTOR, SENSORS, SWITCHES) PRINTED WIRING BOARD
— Ref. No.: FP-594 Board; 2,000 Series —
4-59 4-60 4-61 4-62
SERVO
VC-206 (12/13)
LOADING MOTOR, SENSORS, SWITCHES
FP-594
/
LOADING MOTOR, SENSORS, SWITCHES
FP-594
• See page 4-14 for VC-206 BOARD printed wiring board.
• See page 4-58 for VC-206 BOARD waveform.
There are few cases that the part printed on this diagram isn’t mounted in this model.
M
S902
REC.P
CN901
MIC SW
Q902
TAP E TOP
S901
C IN
H902
T REEL
SENSOR
D901
TAPE
LED
H901
S REEL
SENSOR
S903
MODE SW
Q901
TAPE END
DEW
SENSOR
M902
LOADING
MOTOR
FP-594 BOARD
