Sony RMT-809 - Panel Condition Det.), Fp-657 (Control Switches) Schematic Diagram

DCR-TRV9/TRV9E

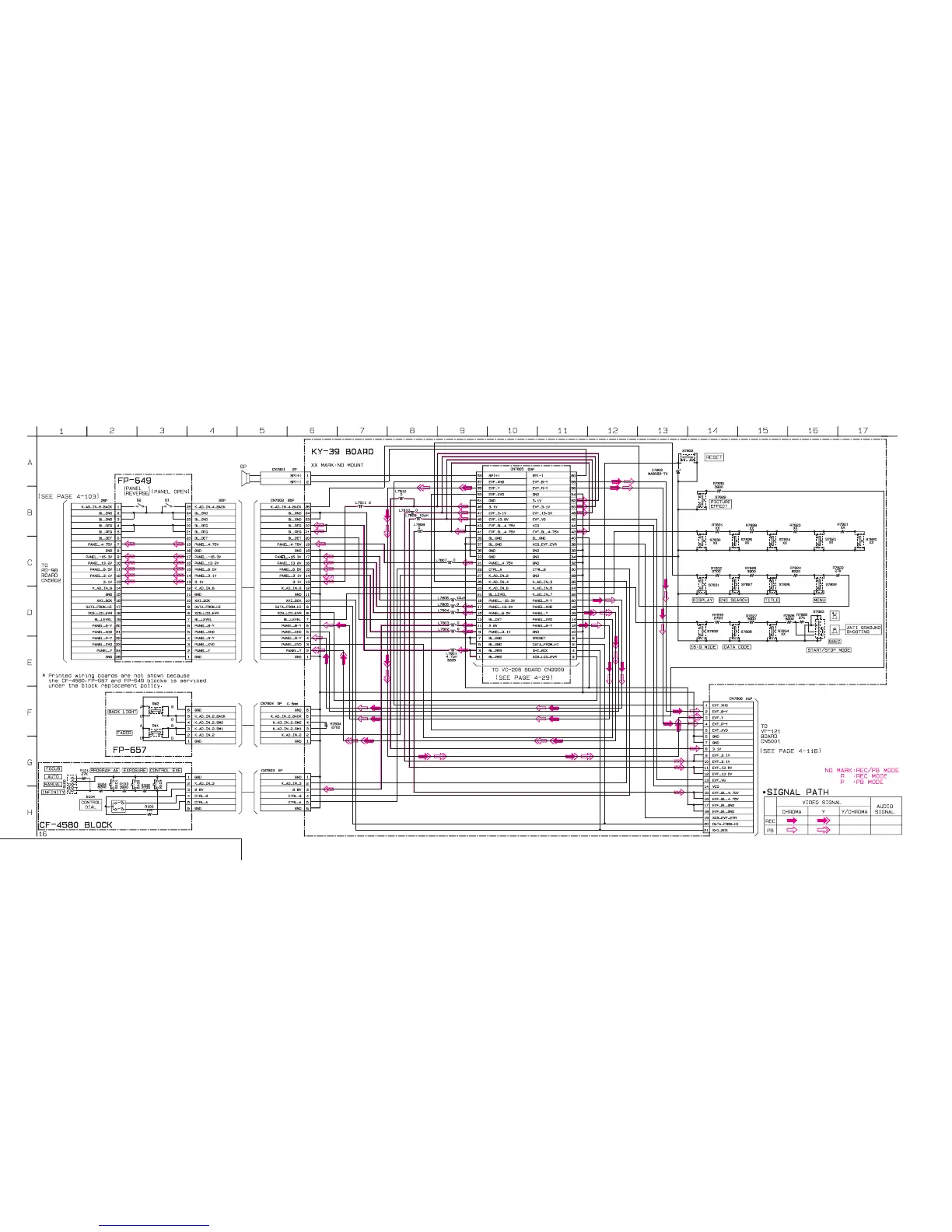

KY-39 (PANEL FUNCTION SWITCH), FP-649 (PANEL CONDITION DET.), FP-657 (CONTROL SWITCHES) SCHEMATIC DIAGRAM
— Ref. No.: KY-39 Board; 40,000 Series, FP-649 Board; 4000 Series, FP-657 Board; 5,000 Series —
4-93 4-94
PANEL FUNCTION SWITCH
KY-39
/
PANEL CONDITION DET.
FP-649
CONTROL SWITCHES
FP-657
/
