DCR-TRV9/TRV9E

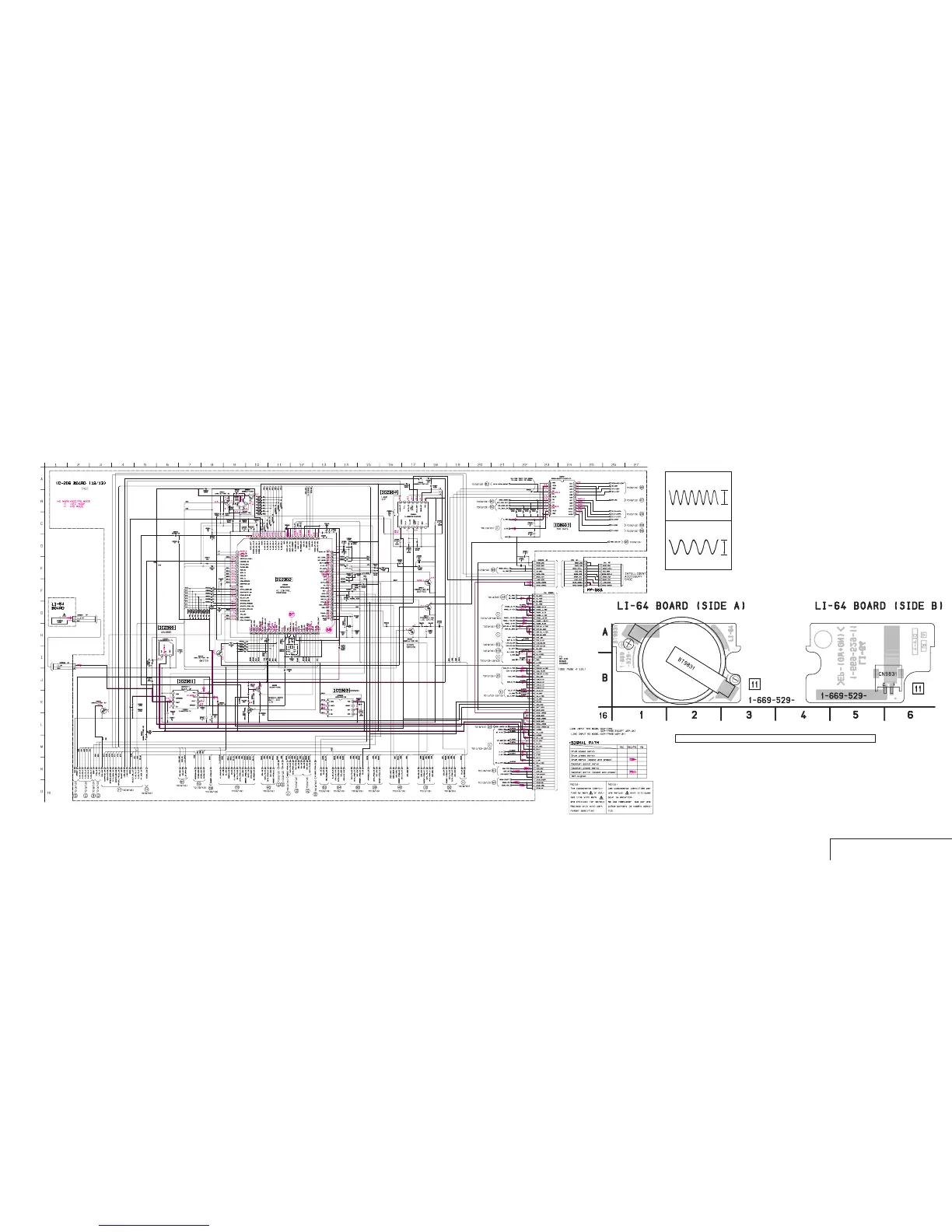

VC-206 (HI CONTROL), LI-64 (LITHIUM BATTERY) SCHEMATIC DIAGRAM AND PRINTED WIRING BOARD
— Ref. No.: VC-206 Board; 10,000 Series, LI-64 Board; 40,000 Series —
4-63 4-64 4-65
HI CONTROL
VC-206 (13/13)
LITHIUM BATTERY
LI-64
/
VC-206 BOARD (13/13)
%¶ IC2302 $º REC/PB
NTSC : 3.2Vp-p
PAL : 2.8Vp-p
2.2Vp-p
20MHz
%• IC2302 %™
CAMERA REC/PB
32.7kHz
• See page 4-14 for VC-206 BOARD printed wiring board.
There are few cases that the part printed on this diagram isn’t mounted in this model.
