Sony RMT-809 - MIC Amp, A;V Rf Converter, Ir Receiver, Sircs Det); Sircs Det) Schematic Diagram

DCR-TRV9/TRV9E
VF-121
(COLOR EVF)
AU-202
AUDIO DSP,
MIC AMP
LI-64
(Li BATT)
LB-55
(EVF BACK LIGHT)
FP-657
(FUNCTION SWITCH)
KY-39
(PANEL FUNCTION SWITCH
)
PD-98
LCD RGB
DECODER,
BACK LIGHT
MA-322
(MIC AMP)
MF-4580
(MANUAL FOCUS)

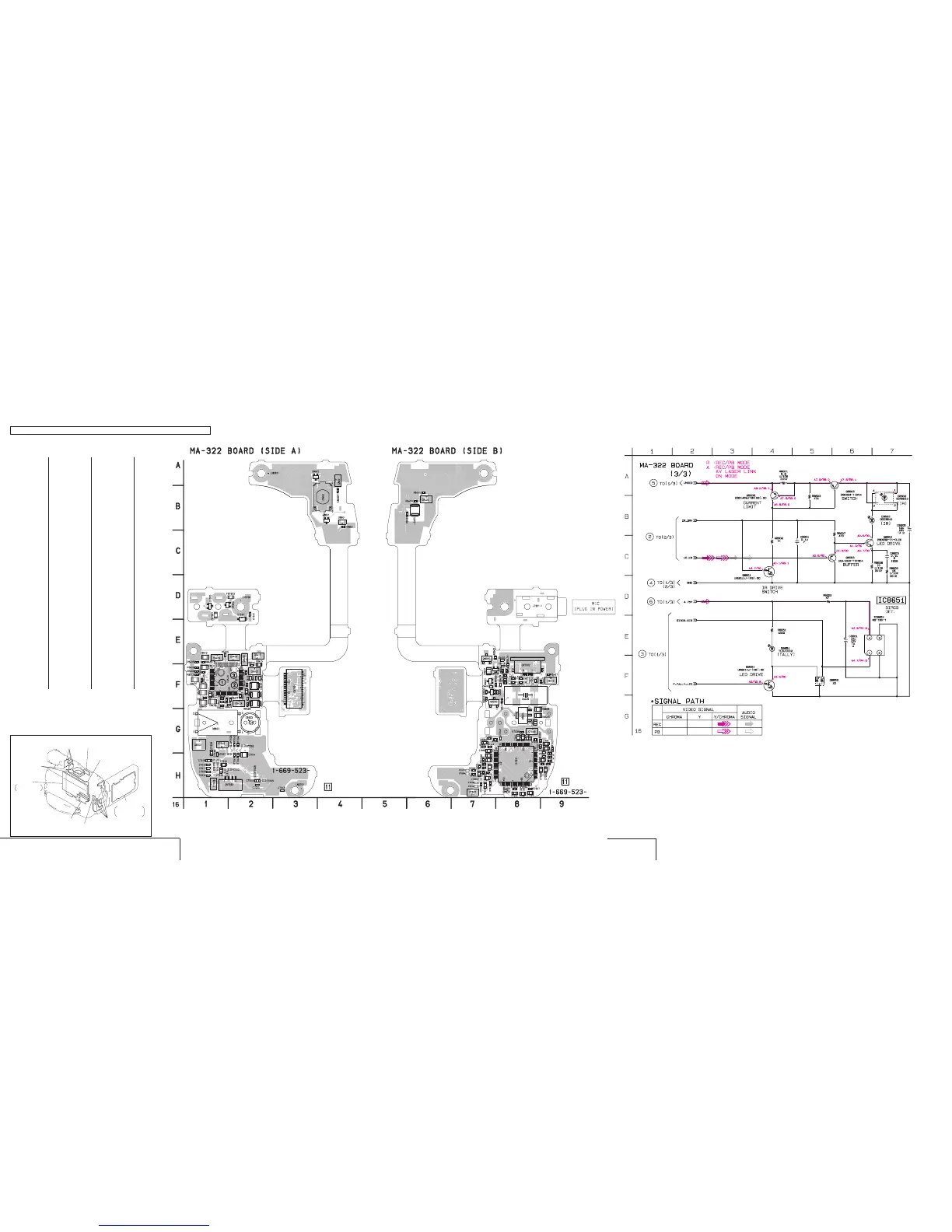

MA-322 (MIC AMP, A/V RF CONVERTER, IR RECEIVER, SIRCS DET) PRINTED WIRING BOARD
— Ref. No.: MA-322 Board; 20,000 Series —
4-66 4-67 4-68
MIC AMP, A/V RF CONVERTER, IR RECEIVER, SIRCS DET
MA-322
MA-322 BOARD
C7003 H-8
C7004 H-8
C7005 H-2
C7006 H-1
C7007 H-7
C7008 H-1
C7009 H-2
C7010 H-1
C7011 H-1
C7012 H-7
C7013 H-1
C7014 H-7
C7015 H-1
C7016 H-7
C7017 H-7
C7018 H-1
C7019 H-1
C7020 H-7
C7021 H-7
C7022 H-7
C7023 H-9
C7024 H-9
C7025 H-7
C7026 H-7
C7027 H-7
C7028 H-9
C7029 G-9
C7030 H-9
C7035 G-7
C7036 H-1
C7037 G-7
C7038 G-1
C7041 G-8
C7042 G-8
C7043 G-8
C7048 H-3
C8401 F-2
C8402 F-2
C8403 E-8
C8404 E-2
C8405 E-2
C8406 E-8
C8408 F-1
C8409 E-1
C8410 E-1
C8411 F-1
C8412 F-9
C8413 E-2
C8414 F-8
C8415 F-2
C8417 F-2
C8419 F-1
C8420 F-2
C8421 F-1
C8422 F-2
C8424 F-2
C8428 F-1
C8429 F-8
C8430 F-7
C8431 F-2
C8432 F-2
C8433 F-8
C8435 F-1
C8436 F-1
C8437 F-1
C8438 F-1
C8601 F-8
C8603 G-8
C8605 G-1
C8651 A-4
CN7001 F-3
CN7002 F-8
CN7003 H-2
D7002 D-2
D7003 D-1
D7004 F-8
D7005 D-2
D8602 G-1
D8603 G-2
D8651 B-4
FB7001 D-1
FB7002 D-2
IC7001 H-8
IC8401 F-1
IC8651 B-4
J7001 D-8
L8402 F-2
L8403 F-2
L8404 F-2
L8405 B-6
Q8401 F-7
Q8601 F-7
Q8603 F-7
Q8604 G-8
Q8605 E-7
Q8606 F-7
Q8651 B-4
R7006 H-8
R7007 H-8
R7008 H-2
R7009 H-2
R7010 H-1
R7011 H-7
R7012 H-7
R7013 H-2
R7014 H-7
R7015 H-1
R7016 H-7
R7017 H-1
R7018 H-7
R7019 H-7
R7020 H-7
R7021 H-9
R7022 H-7
R7023 H-7
R7024 H-9
R7025 H-9
R7026 H-7
R7027 G-9
R7028 H-9
R7029 H-9
R7036 G-2
R7038 G-2
R7039 G-8
R7040 G-2
R7041 H-2
R7043 H-2
R7046 F-8
R7047 F-8
R8401 F-1
R8403 E-1
R8405 E-1
R8406 F-1
R8407 F-9
R8409 F-1
R8410 F-2
R8411 F-2
R8413 F-2
R8415 F-1
R8416 F-1
R8417 F-2
R8418 F-8
R8423 F-1
R8424 F-1
R8429 F-8
R8430 F-8
R8431 F-8
R8432 F-8
R8435 F-7
R8444 F-1
R8601 F-7
R8602 F-7
R8603 E-7
R8607 F-7
R8608 G-8
R8609 G-8
R8651 B-4
R8652 B-4
MA-322 (SIRCS DET) SCHEMATIC DIAGRAM
— Ref. No.: MA-322 Board; 20,000 Series —
SIRCS DET
MA-322 (3/3)
There are few cases that the part printed on this diagram isn’t mounted in this model.
