Sony RMT-809 - Page 53

DCR-TRV9/TRV9E
VC-206 (SIGNAL PROCESS CONTROL), FP-647 (LANC, PHONES JACKS) SCHEMATIC DIAGRAMS
— Ref. No.: VC-206 Board; 10,000 Series —
4-44 4-45 4-46

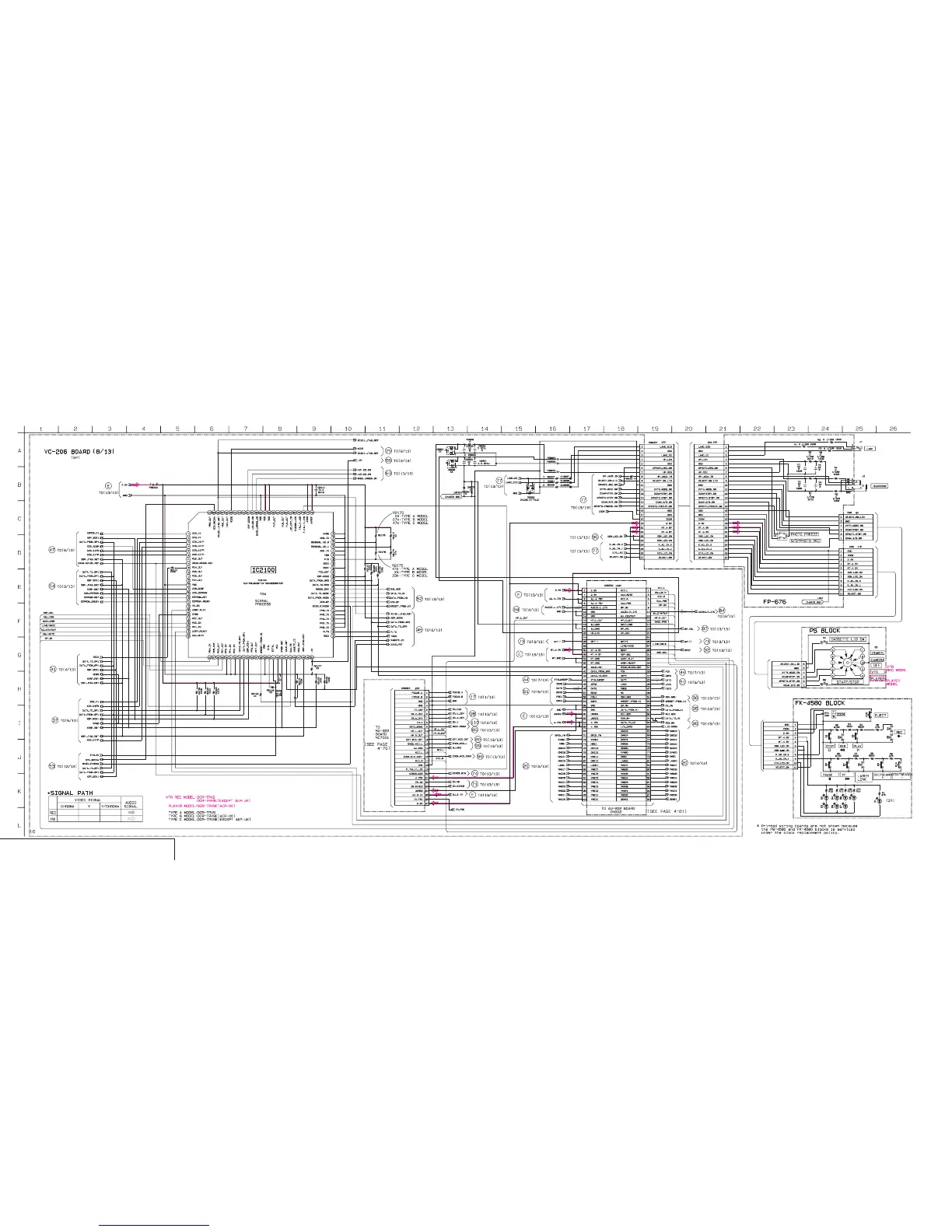

SIGNAL PROCESS CONTROL
VC-206 (8/13)
LANC, PHONES JACKS
FP-676
/
• See page 4-14 for VC-206 BOARD printed wiring board.
