Sony RMT-809 - Page 61

DCR-TRV9/TRV9E

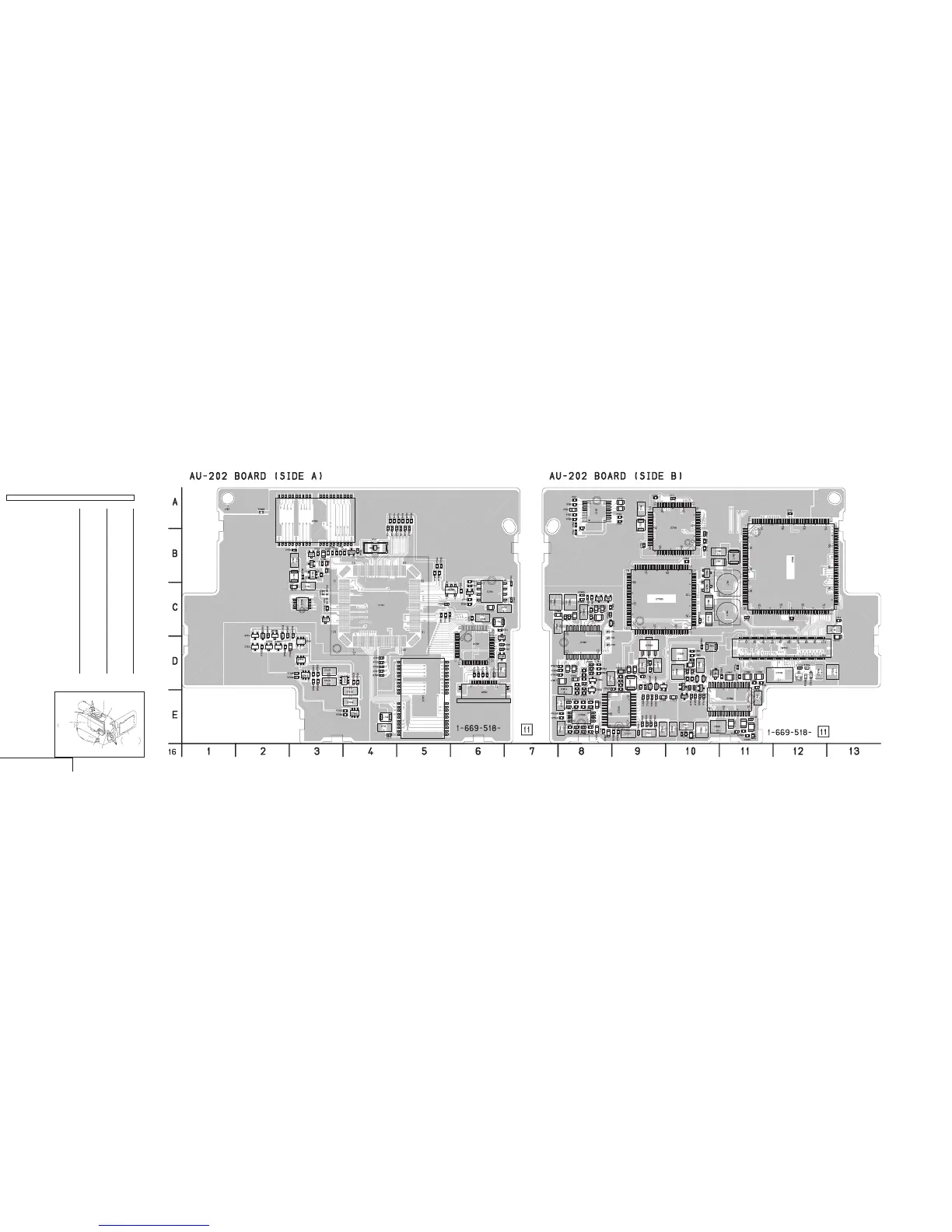

AU-202 (SP/HP AMP, AUDIO DSP, MIC AMP) PRINTED WIRING BOARD
— Ref. No.: AU-202 Board; 30,000 Series —
4-74 4-75 4-76 4-77 4-78
SP/HP AMP, AUDIO DSP, MIC AMP
AU-202
VF-121
(COLOR EVF)
AU-202
AUDIO DSP,
MIC AMP
LI-64
(Li BATT)
LB-55
(EVF BACK LIGHT)
FP-657
(FUNCTION SWITCH)
KY-39
(PANEL FUNCTION SWITCH
)
PD-98
LCD RGB
DECODER,
BACK LIGHT
MA-322
(MIC AMP)
MF-4580
(MANUAL FOCUS)
AU-202 BOARD
C7502 E-11
C7503 D-11
C7504 E-11
C7505 E-10
C7506 D-10
C7507 D-11
C7508 D-10
C7509 D-10
C7510 D-10
C7511 E-10
C7513 E-4
C7514 E-9
C7515 E-9
C7516 E-4
C7517 B-10
C7518 E-9
C7519 E-9
C7521 E-9
C7522 E-4
C7523 E-10
C7524 E-10
C7525 E-9
C7526 E-9
C7527 E-8
C7528 E-9
C7529 E-5
C7532 E-8
C7533 E-8
C7536 E-8
C7540 E-8
C7542 E-8
C7543 E-8
C7544 E-8
C7545 E-8
C7546 E-8
C7547 E-8
C7559 D-13
C7560 D-3
C7563 E-11
C7564 E-10
C7565 D-11
C7566 E-11
C7567 D-11
C7572 D-3
C7573 D-3
C7576 D-12
C7578 D-12
C7802 C-8
C7803 C-8
C7804 C-8
C7805 C-7
C7806 C-8
C7807 C-8
C7808 C-7
C7809 C-8
C7810 C-8
C7811 C-8
C7812 D-8
C7813 D-8
C7814 E-8
C7815 D-8
C7817 D-8
C7818 D-8
C7819 D-8
C7820 D-8
CN7501 D-12
D7502 D-10
D7503 D-10
D7504 D-10
D7506 D-9
D7507 D-9
D7508 D-9
D7510 C-2
D7511 C-2
D7512 D-2
D7513 D-2
D7514 D-12
D7801 C-8
FB7501 D-9
IC7501 E-11
IC7504 E-9
IC7505 C-9
IC7508 E-8
IC7801 D-8
L7501 D-10
L7505 D-9
Q7501 D-10
Q7502 D-10
Q7505 E-4
Q7506 C-2
Q7507 D-2
Q7509 E-10
Q7510 D-3
Q7511 D-3
Q7512 D-4
Q7513 D-3
Q7514 C-2
Q7515 D-12
Q7801 C-8
Q7802 C-8
R7501 D-10
R7502 E-10
R7503 E-11
R7504 D-11
R7505 D-10
R7506 D-10
R7507 D-10
R7508 D-10
R7509 E-10
R7510 E-10
R7511 D-10
R7512 D-10
R7513 E-10
R7514 E-10
R7515 D-3
R7516 E-9
R7517 E-9
R7518 E-9
R7519 E-9
R7520 D-9
R7522 D-3
R7523 D-4
R7524 D-4
R7525 C-10
R7527 D-9
R7528 D-9
R7529 D-9
R7530 D-9
R7533 E-9
R7536 E-8
R7538 E-8
R7541 E-8
R7542 E-8
R7543 E-8
R7544 E-8
R7545 E-8
R7546 E-8
R7547 E-8
R7548 E-8
R7549 E-8
R7550 E-8
R7562 E-4
R7563 E-4
R7567 C-2
R7568 D-2
R7569 E-11
R7570 E-11
R7571 E-10
R7572 E-10
R7573 D-11
R7574 D-11
R7575 E-11
R7576 E-11
R7577 E-11
R7578 D-11
R7579 C-3
R7587 D-3
R7588 D-3
R7589 D-3
R7590 D-3
R7591 C-2
R7593 D-12
R7594 D-12
R7595 C-12
R7801 C-8
R7802 C-8
R7803 C-8
R7804 C-8
R7805 C-8
R7806 C-8
R7809 D-8
R7812 D-8
R7814 D-8
R7815 D-8
R7816 D-8
R7820 D-8
R7834 D-8
R7835 D-8
There are few cases that the part printed on this diagram isn’t mounted in this model.
