DCR-TRV9/TRV9E

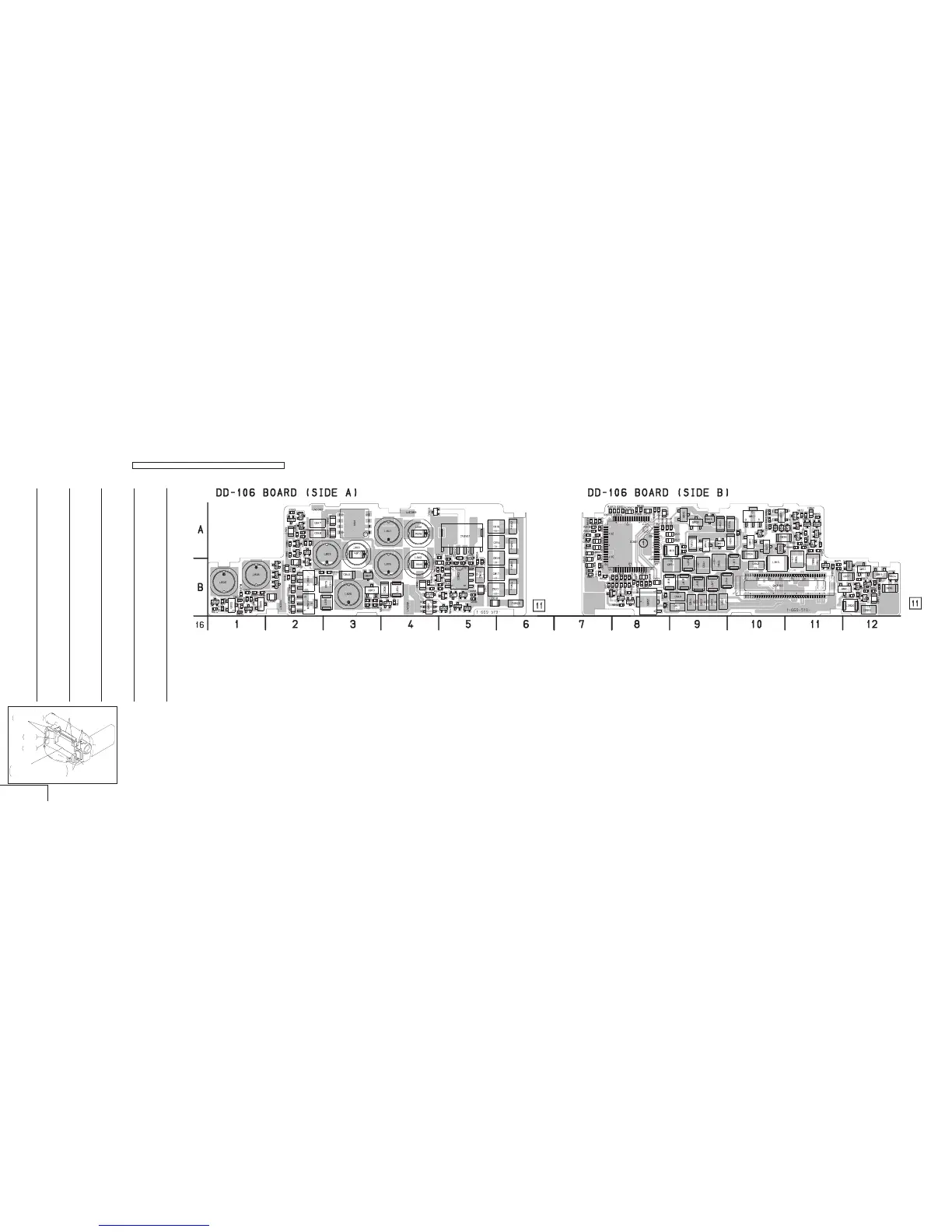

DD-106 (POWER SUPPLY) PRINTED WIRING BOARD
— Ref. No.: DD-166 Board; 30,000 Series —
FP-676
HEADPHONE LANC
S/S SWITCH
DD-106
POWER
SUPPLY
VC-206
CAMERA, VIDEO IN/OUT, BLOCKING,
ECC, TBC, CHCO, AUDIO PROCESS,
RF INTERFACE, REC/PB HEAD AMP,
DV PROCESS, SERVO, HI CONTROL
FP-647
(VIDEO AUDIO IN/OUT)
VI-148
(Except AEP, UK model)
(VIDEO INTERFACE)
CD-185
(CCD IMAGER)
FK-4580
(VTR FUNCTION SWITCH)
PS4580
POWER
SWITCH
4-126 4-127 4-128
POWER SUPPLY
DD-106
DD-106 BOARD
C801 A-7
C802 A-7
C803 A-7
C804 A-7
C805 A-7
C806 B-7
C807 B-7
C808 B-8
C809 B-8
C810 B-8
C811 B-8
C812 A-8
C813 B-8
C814 A-8
C815 A-8
C816 A-5
C817 B-5
C819 A-9
C820 A-9
C821 B-8
C822 B-5
C823 A-9
C824 A-10
C825 A-9
C826 B-4
C828 B-3
C829 B-5
C830 B-3
C831 B-5
C832 A-10
C833 A-10
C834 A-10
C835 B-5
C836 B-12
C837 B-12
C838 A-10
C839 A-5
C840 B-3
C841 B-9
C842 B-5
C843 B-10
C844 B-9
C845 B-5
C846 B-9
C847 A-2
C848 A-2
C849 B-9
C850 B-9
C851 B-9
C852 A-3
C853 A-3
C854 B-1
C855 B-9
C856 B-4
C857 B-9
C859 B-2
C860 A-11
C861 B-12
C862 B-1
C863 B-1
C864 B-11
C865 B-2
C866 B-2
C867 B-12
C868 B-11
C869 A-2
C870 A-9
C871 B-9
C872 A-9
C3900 B-5
C3901 B-5
C3961 B-12
C3965 B-2
C3966 B-2
C3967 B-8
C3968 A-8
C3969 A-8
CN3901 A-5
CN3902 B-10
D801 A-9
D802 A-9
D803 B-12
D804 B-12
D805 A-10
D806 A-10
D807 B-3
D808 B-4
D809 A-10
D810 A-10
D812 A-11
D3903 A-4
IC801 A-8
IC802 B-5
IC3902 B-2
L801 A-4
L802 B-4
L803 A-3
L804 B-4
L805 B-4
L806 B-1
L806 B-4
L807 A-4
L808 B-1
L809 A-3
L810 A-9
L811 B-10
L812 B-9
L813 B-10
L814 B-9
L815 B-9
L816 B-3
L817 B-9
L818 B-8
L819 B-9
L820 B-3
L3920 B-12
PS801 A-6
PS802 A-6
PS803 B-6
PS804 B-6
PS805 B-6
Q806 B-4
Q807 A-10
Q808 A-9
Q809 A-9
Q810 A-10
Q811 B-5
Q812 A-9
Q813 B-5
Q814 B-12
Q815 B-12
Q816 B-4
Q817 A-10
Q818 B-5
Q819 B-3
Q820 B-5
Q821 B-5
Q822 B-5
Q823 A-10
Q824 B-4
Q826 B-11
Q827 B-1
Q828 B-1
Q829 A-11
Q830 A-11
Q831 B-12
Q832 B-1
Q833 B-1
Q834 A-11
Q835 A-2
Q836 B-2
Q837 B-12
Q838 A-2
Q839 B-2
Q840 A-2
Q841 B-12
Q842 A-11
Q843 A-11
Q844 B-2
Q845 B-2
Q846 B-12
Q847 A-11
Q848 A-2
Q849 A-2
Q850 A-2
Q852 B-8
Q853 B-7
Q854 B-8
Q855 B-8
Q856 A-11
Q3922 B-2
R801 B-7
R802 A-7
R803 A-7
R804 A-7
R805 B-7
R806 B-7
R807 A-7
R808 A-7
R809 A-7
R810 B-7
R811 B-8
R812 B-7
R813 B-12
R814 B-1
R818 B-8
R819 B-8
R820 A-7
R821 B-8
R822 B-1
R823 A-7
R824 B-8
R829 B-8
R830 B-8
R831 A-7
R833 B-8
R834 B-8
R835 A-8
R836 A-8
R837 B-8
R838 A-8
R839 B-8
R840 A-8
R841 A-9
R842 A-5
R843 B-4
R844 B-5
R845 B-5
R846 B-4
R847 B-3
R848 B-5
R849 B-5
R850 B-5
R851 B-5
R852 B-3
R853 B-5
R854 B-5
R855 B-11
R859 B-4
R864 B-4
R865 B-10
R866 A-10
R868 B-1
R869 A-10
R870 B-11
R871 B-11
R872 A-11
R873 A-11
R874 B-1
R875 B-1
R876 B-1
R878 B-1
R879 A-11
R880 A-11
R881 A-11
R882 A-11
R883 A-2
R884 B-2
R885 B-12
R887 A-2
R888 A-2
R890 A-11
R891 B-2
R892 B-2
R893 B-3
R894 B-12
R895 A-11
R896 B-1
R897 B-1
R898 B-12
R899 B-12
R900 A-11
R901 A-11
R902 A-11
R903 A-2
R904 A-2
R905 A-2
R906 A-2
R907 A-2
R908 B-8
R910 B-8
R911 B-8
R912 B-8
R914 B-3
R3969 B-2
R3970 B-2
R3972 A-7
R3973 A-8
R3974 A-8
T801 A-3
4-125
There are few cases that the part printed on this diagram isn’t mounted in this model.
