Sony RMT-D217P - Disassembly - AV-089 Board and Board Locations; AV-089 Board Removal; Circuit Boards Location

2-8

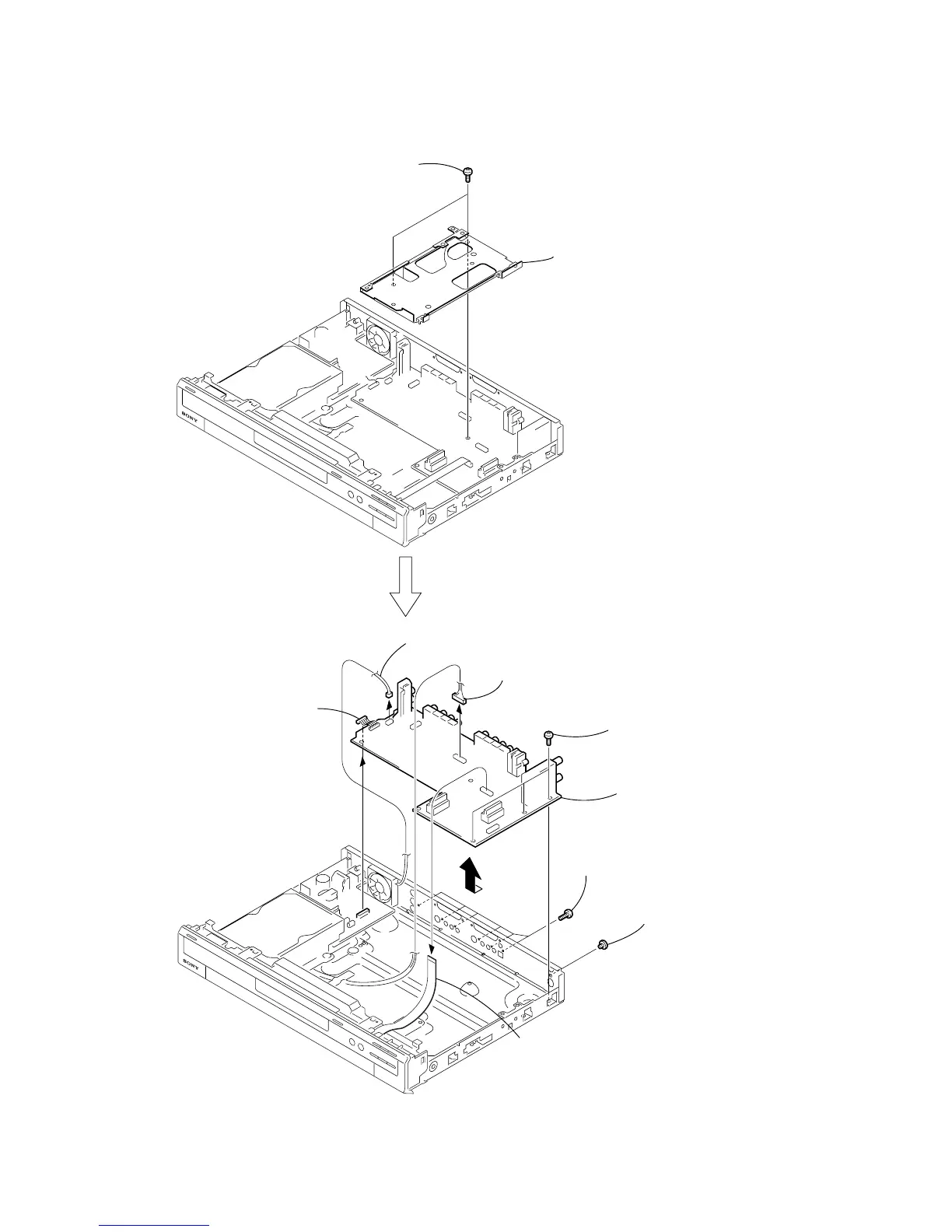

2-13.AV-089 BOARD
5 Harnesses
(AL-071) (CN701)
3 Connector
(CN120)
4 Connector
(CN3)
7 Tree tapping screws
(+BV 3 × 8)
0 AV-89 board
8 Screw
(+B 3 × 3)
9 Six tapping screws
(+BV 3 × 10)
1 Two tapping screws
(+BV 3 × 8)
2 RD bracket
6 Flexible flat cable
(FAF-001) (CN602)
