Sony RMT-D217P - Repair Parts List; Overall Exploded View

8-1
RDR-HX510
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.

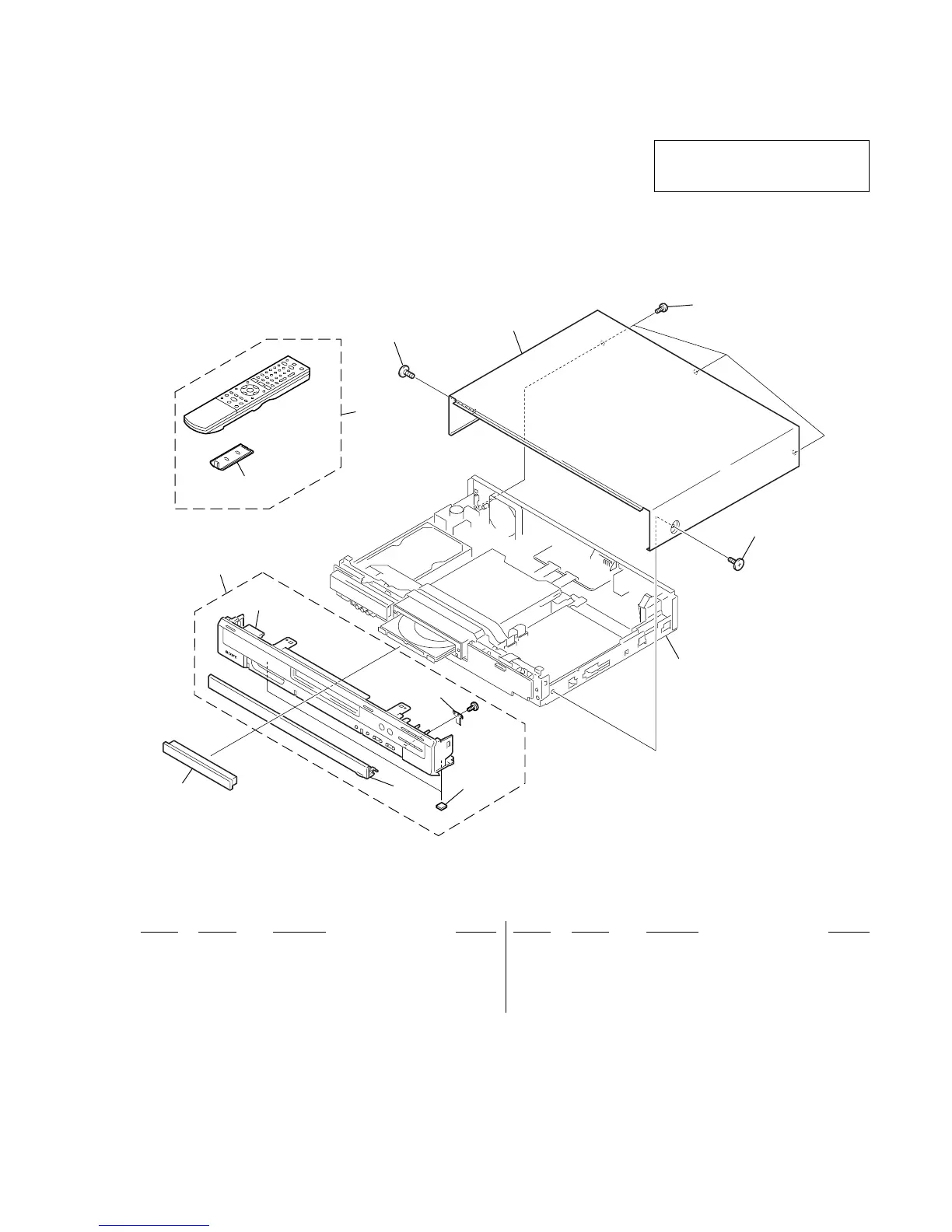

8-1-1. OVERALL SECTION
1 X-2055-182-1 COVER ASSY, TRAY
3 2-515-217-21 DOOR,SLIDE (G35)
4 X-2055-185-1 PANEL ASSY, FRONT(AEP)
4 X-2055-186-1 PANEL ASSY, FRONT(UK)
5 3-070-883-41 SCREW, TAPPING
6 A-1109-676-A CASE, UPPER (SERVICE)
7 3-077-331-31 +BV3 (3-CR)
8 1-479-289-11 REMOTE COMMANDER (RMT-D217P)
9 3-071-119-91 LID, BATTERY (FOR RMT-D217P)
#1 7-685-533-14 SCREW +BTP 2.6X6 TYPE2 N-S
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
DVD drive and HDD
(See page 8-2)
Chassis section
(See page 8-3)
1
3
not
supplied
not
supplied
#1
not
supplied
6
7
4
5
5
9
8
