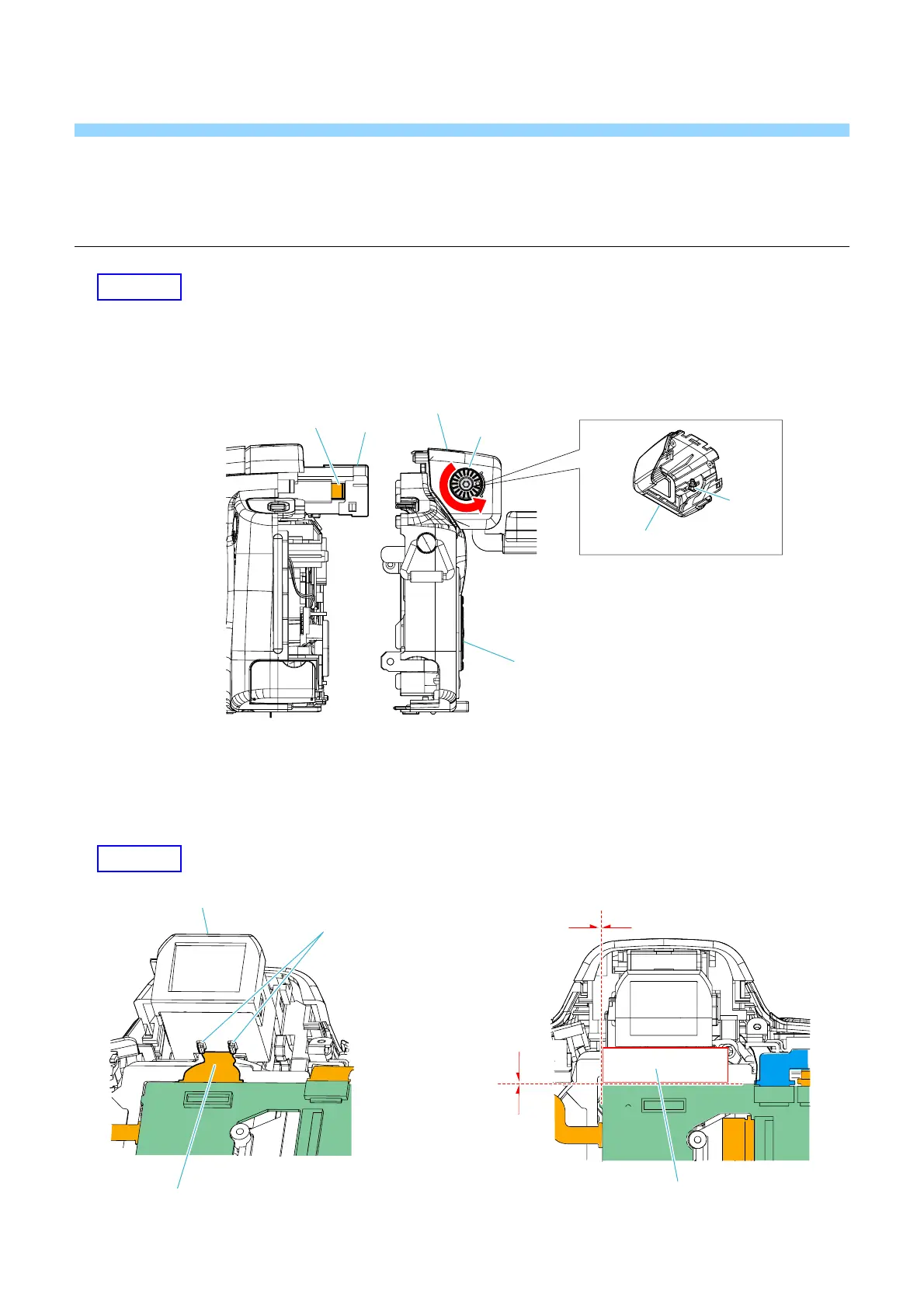

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
HELP01
Lever
Eye Cup Assy
Visibility Dial
In case of assembling the cabinet (rear) assy, attach it after turning fully counterclockwise the visibility dial.
Be careful about the lever inside of the eye cup assy doesn't go over the EVF lever.
Eye Cup Assy
Cabinet (Rear) Assy
Bend the flexible board to
the main body side at claws.
Lever
EVF
HELP02
EVF
Claws
Tape (A)
0 to 1mm
0 to 1mm
