11
SA-FT3H/WFT3/SS-CNF3H/FRF3H
SECTION 3
EXPLODED VIEWS
Ref. No. Part No. Description Remark

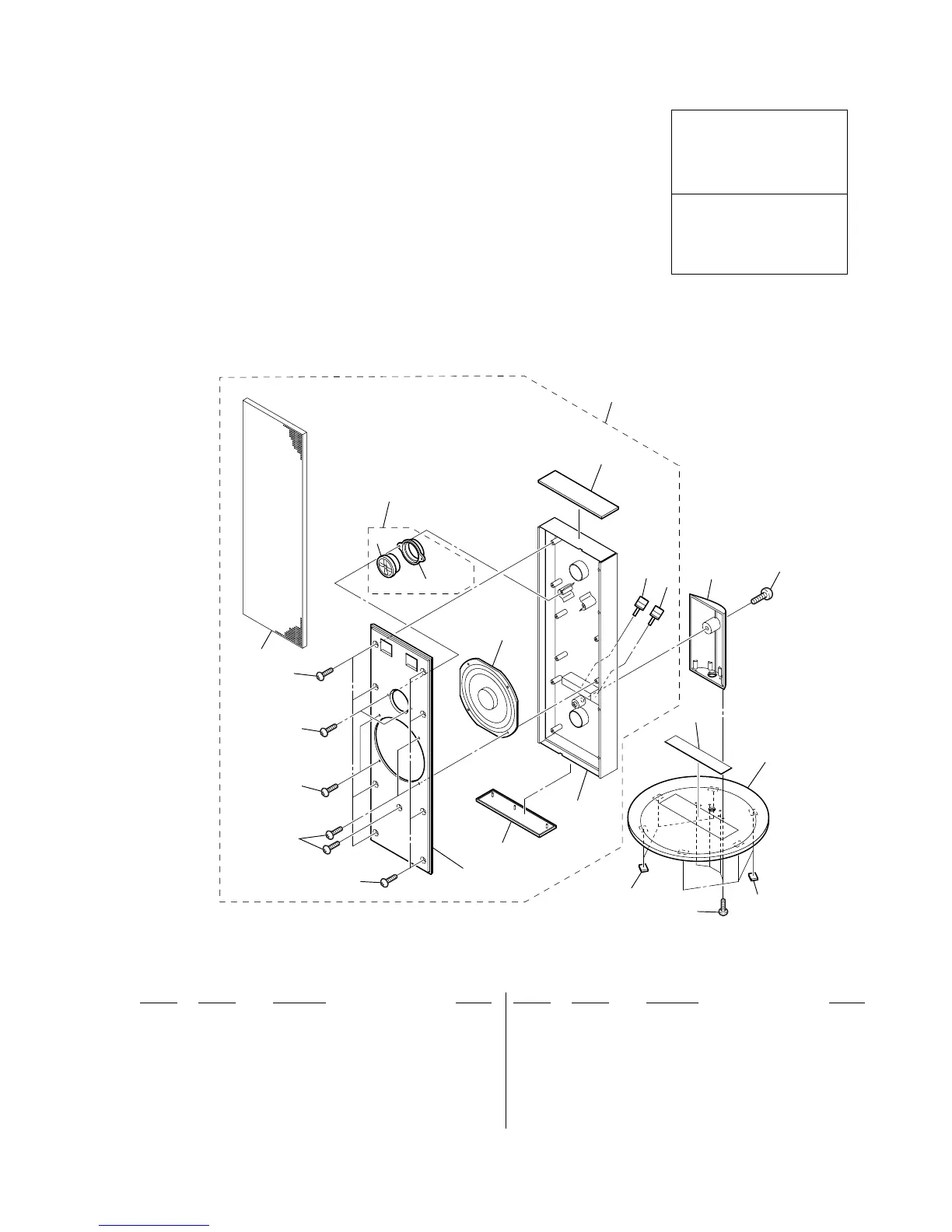

3-1. FRONT/SURROUND SPEAKER SECTION
(SS-FRF3H)
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND : Canadian model
SP : Singapore model
MY : Malaysia model
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
not supplied
not supplied
not supplied
not supplied
not supplied
1
2
3
4
5
6
9
8
7
7
7
7
7
10
12
13
14
14
11
12-632-330-01 GRILLE
2 X-2050-863-1 TWEETER ASSY
31-825-913-11 SPEAKER (2.5cm)
41-826-119-11 LOUDSPEAKER (10cm)
51-780-294-11 SCREW TERMINAL (T205)
61-780-295-11 SCREW TERMINAL (T110)
74-246-231-01 BV TAPPING SCREW TYPE-2 3.5X14
8 A-1123-134-A OVERALL ASSY
9 2-632-322-01 COVER, BACK
10 7-682-576-04 SCREW +B 5X12
11 4-246-231-01 BV TAPPING SCREW TYPE-2 3.5X14
12 2-637-849-01 CUSHION, BASE
13 2-632-321-01 BASE
14 4-977-358-01 CUSHION
To Next Page
