Sony SA-WMS556 - REAR COVER SECTION; REAR COVER ASSEMBLY VIEW

10
SA-WMS356/WMS556
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 3-703-244-00 BUSHING (2104), CORD
52 A-1059-722-A MAIN BOARD, COMPLETE
53 4-874-614-52 SCREW (1) (3.5X20), TAPPING
54 4-999-482-71 KNOB (VOL)
0 55 1-829-415-11 CORD, POWER
56 3-905-609-31 SCREW (TRANSISTOR)
0 F901 1-532-502-31 FUSE (T1.25AL/250V)
0 T102 1-443-276-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)

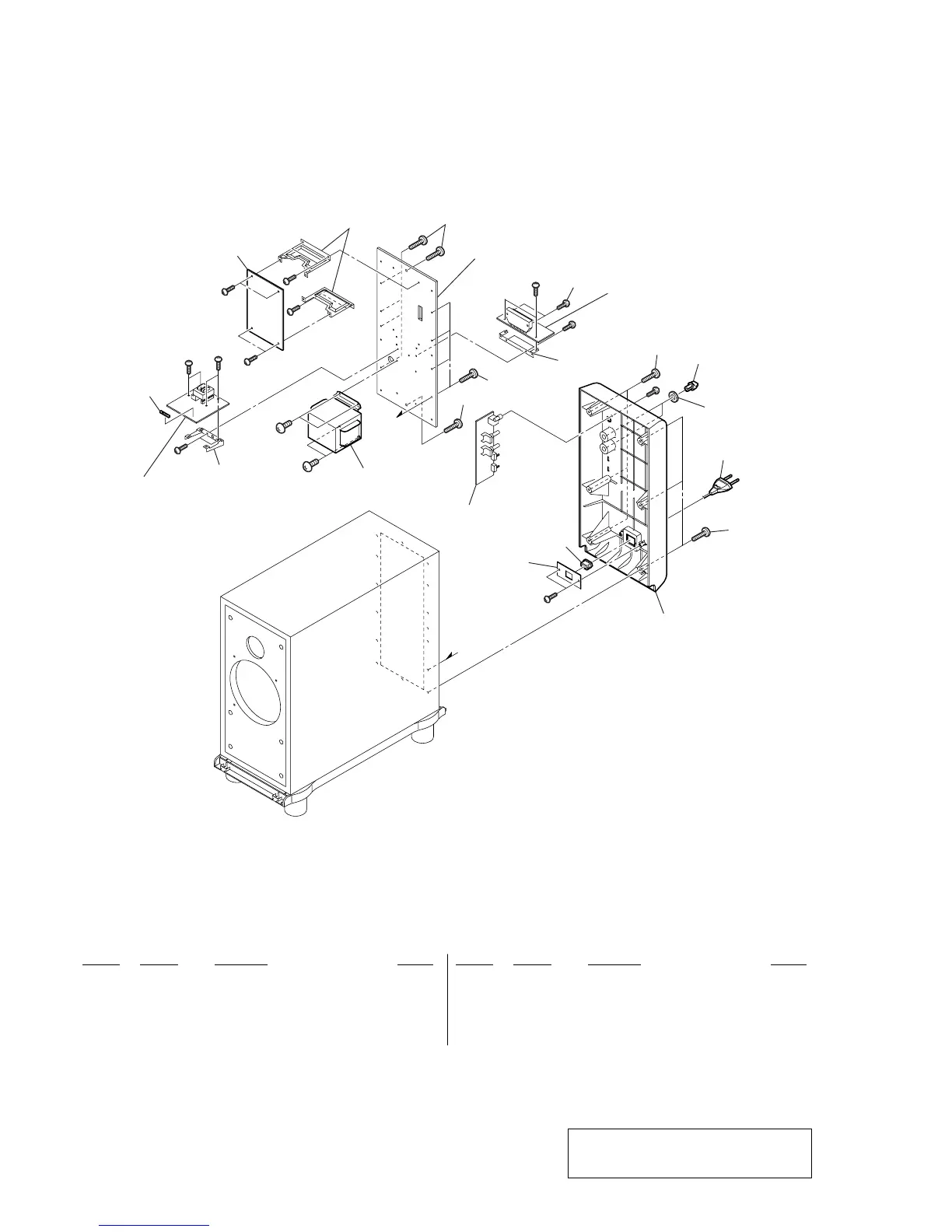

2-2. REAR COVER SECTION
not supplied
(CONTROL board)
not supplied
(POWER AMP board)
not supplied
(POWER SUPPLY board)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
T102
F901
A
A
51
52
53
53
53
53
54
55
56
53
supplied with
RV601, 602
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
