SA-WMSP69
51 A-1084-745-A SPEAKER CABINET ASSY
* 52 3-703-244-00 BUSHING (2104), CORD
053 1-783-820-11 CORD, POWER
54 2-349-022-11 SCREW +BVTP (4X20) (TYPE1)
55 A-1090-358-A MAIN BOARD, COMPLETE
56 3-905-609-31 SCREW (TRANSISTOR)
57 4-999-482-81 KNOB (VOL)
0 F901 1-533-452-12 FUSE, GLASS TUBE (DIA. 5) (4A/125V)
Q307 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q308 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 T1 1-443-652-11 TRANSFORMER, POWER
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

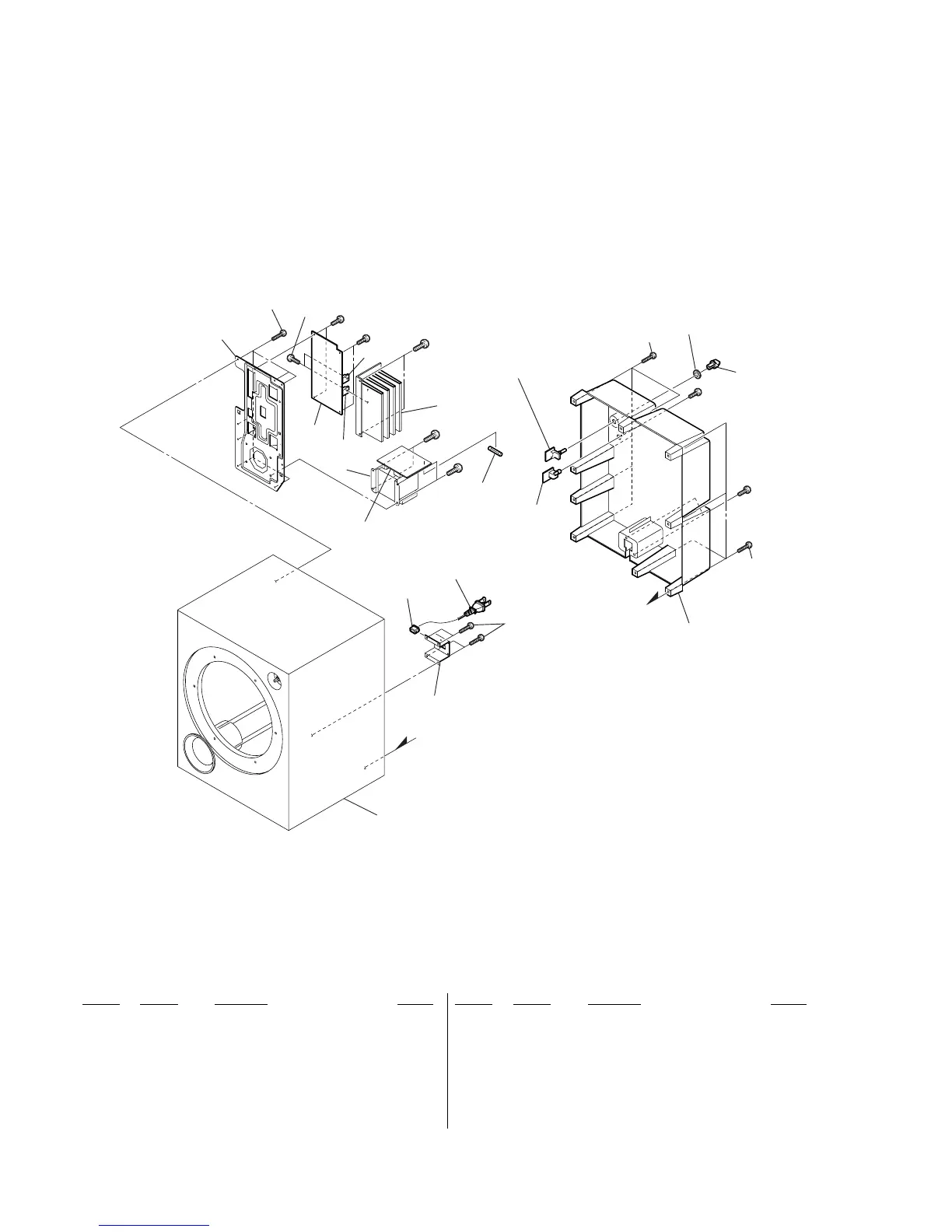

2-2. REAR SECTION
F901
51
52
54
54
56
55
53
57
54
A
A
supplied with RV801
not supplied
(POWER TRANS board)
not supplied
(CONTROL board)
not supplied
(INPUT board)
not supplied
not supplied
not supplied
T1
Q308
Q307
#2
#1
#1
#1
#2
#2
#2
not supplied
54
