Sony SA-WP785 - Exploded Views; Overall Section Exploded View

9
SA-WP785
SECTION 2
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS : Australian model
SP : Singapore model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

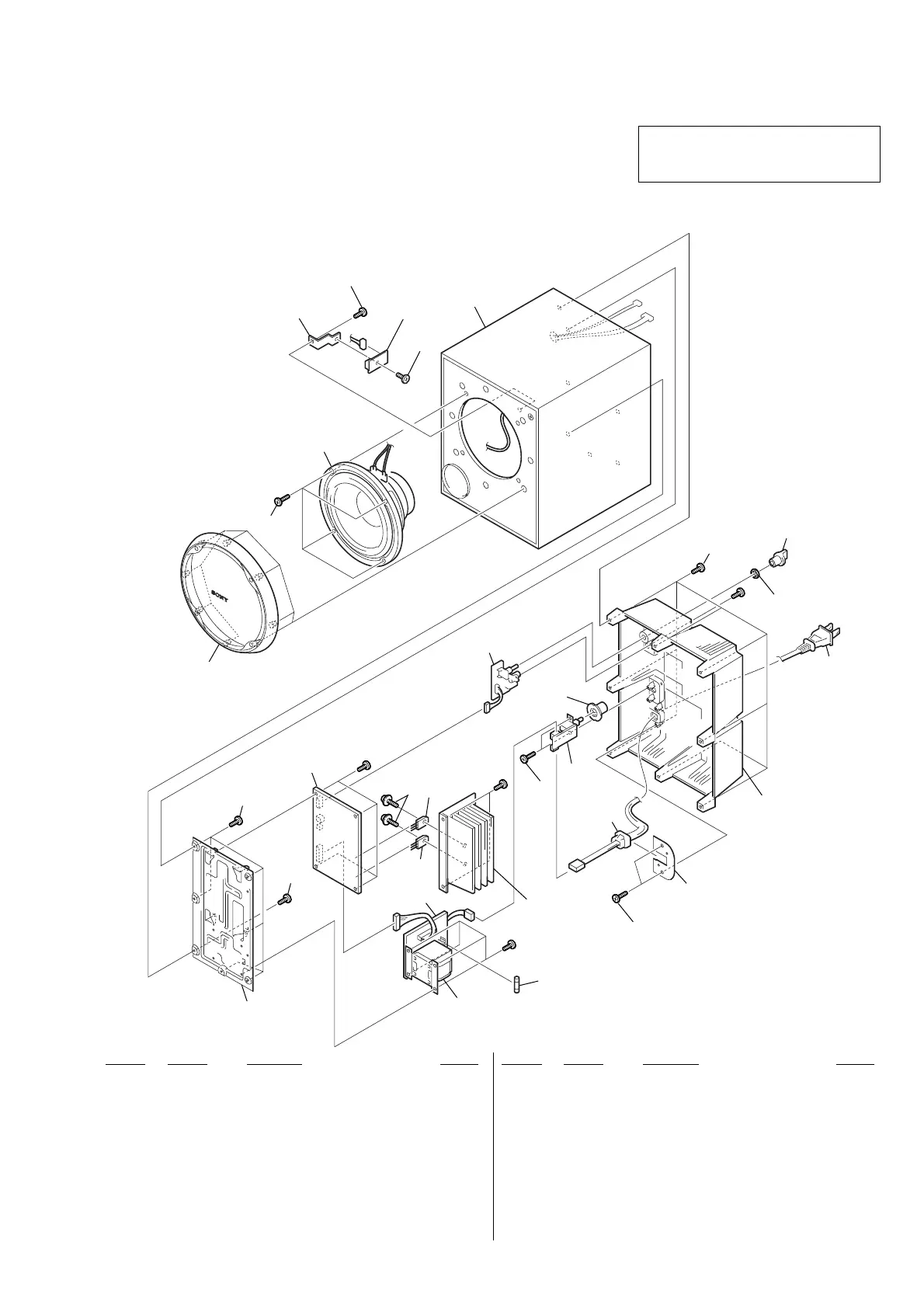

2-1. OVERALL SECTION
1
6
SP1
#2
#2
including
RV801
Q307
Q308
F901
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
11
2
7
3
not
supplied
not
supplied
#1
#1
4
11
12
5
8
9
10
10
10
10
not
supplied
not
supplied
1 A-1221-943-A WOOFER RING ASSY
2 4-999-482-91 KNOB (VOL)
0 3 1-696-848-81 CORD, POWER (AUS)
0 3 1-777-071-23 CORD, POWER (SP)
4 A-1237-500-A MAIN BOARD, COMPLETE
5 3-905-609-32 SCREW (TRANSISTOR)
6 4-229-966-12 SCREW (4X16), +BV TAPPING
* 7 3-703-244-00 BUSHING (2104), CORD
8 4-244-832-51 KNOB POWER
9 A-1223-204-A SPEAKER CABINET ASSY
10 4-986-971-12 SCREW (3.5)
11 4-874-614-02 SCREW (1) (3.5X14), TAPPING
12 2-580-637-01 SCREW +BVST 4X12
0F901 1-532-463-33 FUSE T1AL/250V
Q307 6-702-391-01 IC MP1620-OPY-MK
Q308 6-702-390-01 IC MN2488-OPY-MK
SP1 1-826-412-21 LOUDSPEAKER (20cm)
0T1 1-443-886-21 TRANSFORMER, POWER
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
