SAL28F28 (2.8/28) (28mm F2.8)
HELP03
Anti-diffusion agent (A-20): J-6082-611-A
Adhesive bond (B-10): J-6082-612-A
1. Apply the anti-diffusion agent (A-20) to the instruction portions of the focus ring.
2. Attach the focus ring and focus ring holding plate, and then align the edge (∞ side) of the focus scale window with the distance index
on the focus scale window. Tighten the three screws as shown in the figure tentatively.
3. Perform the “4-4-2. Flange Back (f’F) Adjustment”.
4. After the flange back adjustment is completed, fix the focus ring with six screws applying the adhesive bond (B-10) as shown in the
figure.
∞

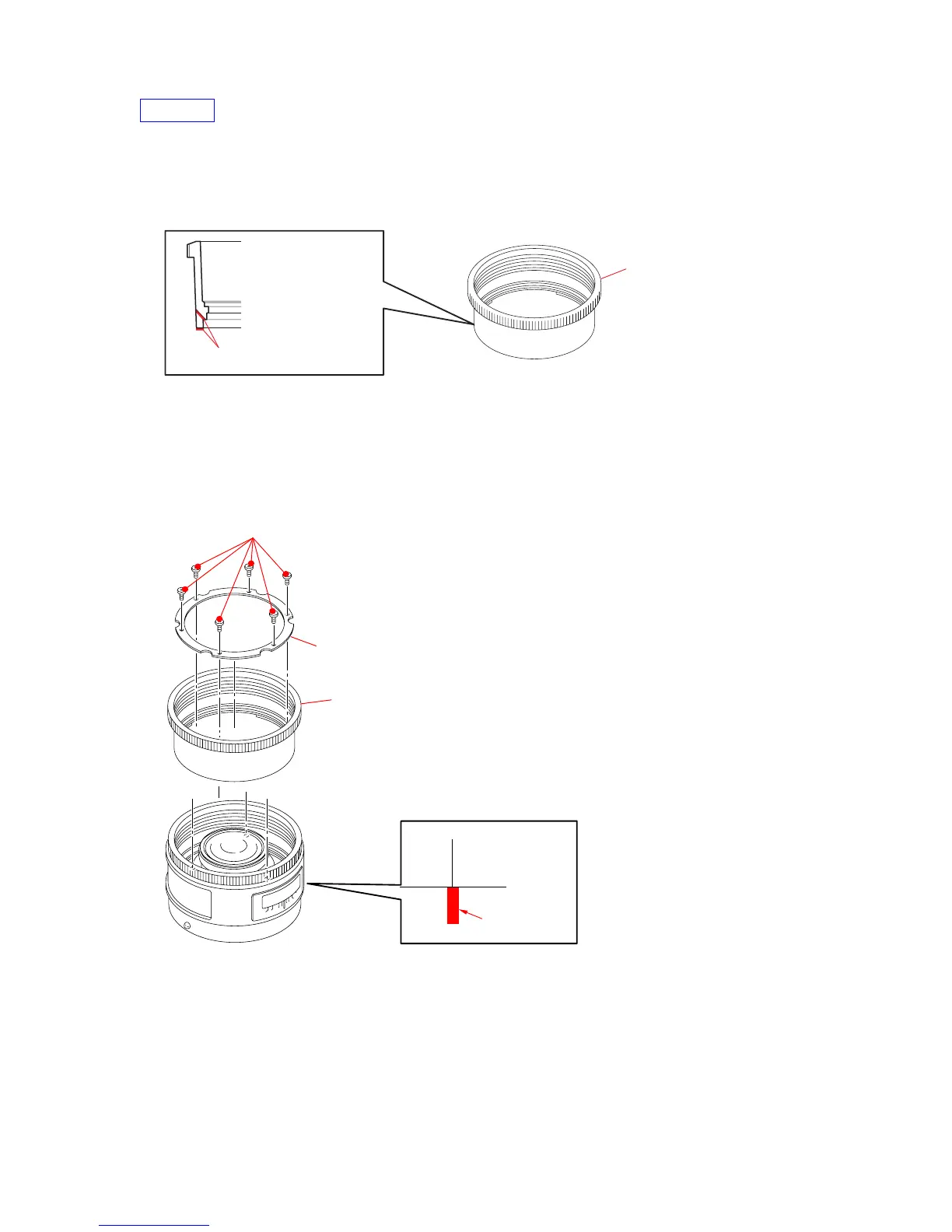

Apply the adhesive bond(B-10)(6 areas)
Focus Tube
Distance Index
Focus Ring Holding Plate
Focus Ring
Apply the anti-diffusion(A-20)
(All circumference)
To Next Page
