3-1
SAL28F28 (2.8/28) (28mm F2.8)
3. REPAIR PARTS LIST

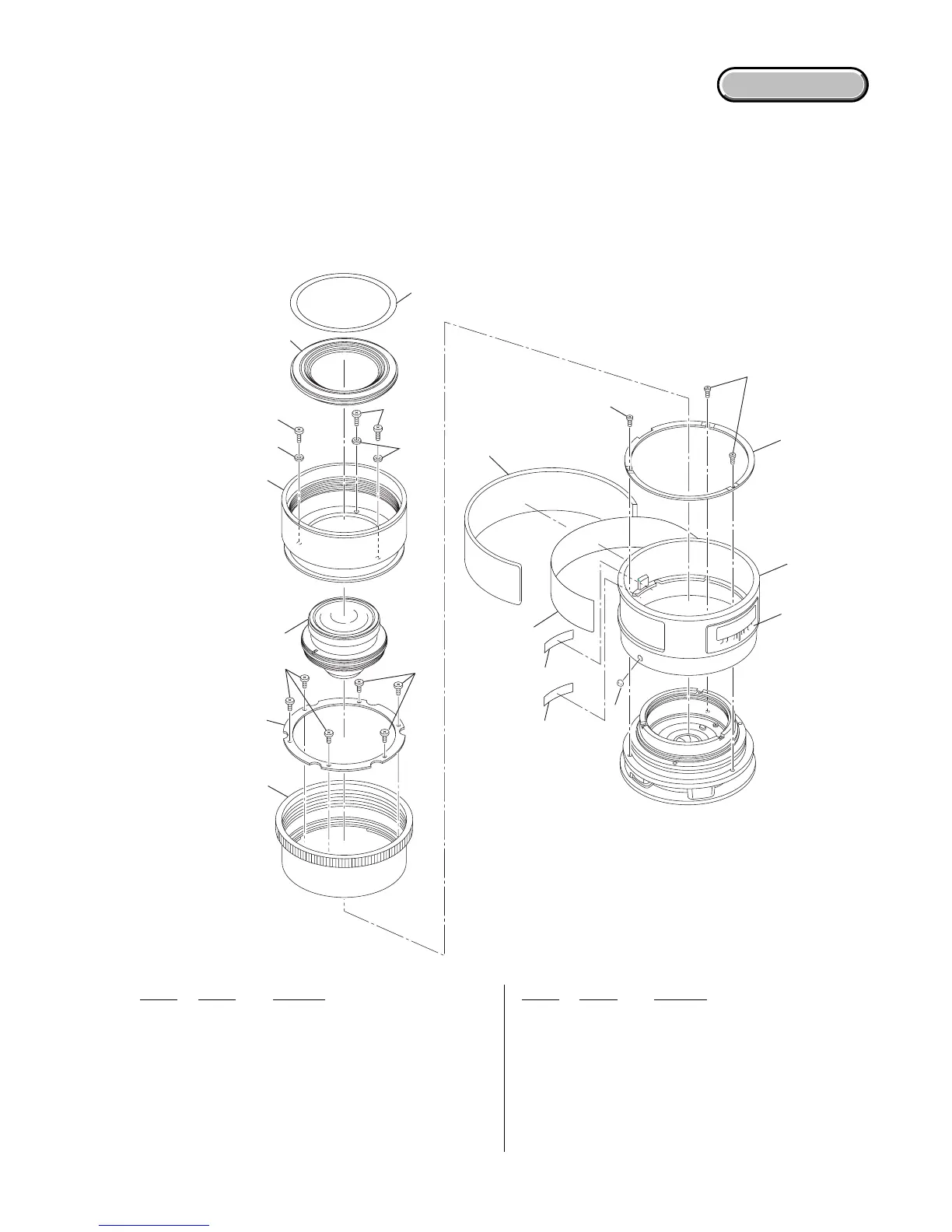

3-1. EXPLODED VIEWS
3-1-1. MIRROR TUBE BLOCK, FOCUS RING AND FRONT LENS HOLDER BLOCK
DISASSEMBLY
Ref. No. Part No. Description
1 A-1206-281-A BLOCK, TUBE, MIRROR TUBE
2 2-693-086-01 RING (G1 STOPPER)
3 2-693-099-01 TAPPING SCREW 1.7 M1.7 X4.0
4 2-693-100-01 WASHER
5 2-685-020-01 SCREW (SET SCREW A)
6 2-693-094-01 PLATE (FOCUS RING HOLDING PLATE)
7 2-693-085-01 FOCUS RING
8 2-684-120-01 SCREW M1.6 X 4.0
9 2-691-955-01 OUTER BARREL HOLD PLATE
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
10 2-691-944-01 SHEET (HOLD SHEET)
11 2-691-943-01 HOLD SHEET TAPE
12 2-693-084-01 RING (OUTER BARREL)
13 2-683-692-01 CHIP (MOUNT INDEX)
14 A-1197-687-A UNIT(FOCUS SCALE WINDOW UNIT)
15 2-684-073-01 LENS NO. PLATE
16 2-888-237-01 FRONT DECORATION PLATE
17 2-695-852-01 LABEL, MODEL NAME
Ref. No. Part No. Description
1
2
3
4
3
4
5
5
6
7
8
8
9
12
13
14
(See Page 3-3.)
17
15
16
10
11
Ver 1.2 2007.01
