Sony SAL28F28 - 4 Adjustments; Preparations

4-1
SAL28F28 (2.8/28) (28mm F2.8)
4. ADJUSTMENTS
Note: After the service repair, perform the adjustments referring to this section.
4-1. PREPARATIONS
4-1-1. List of Service Tools and Equipments
• Variable Transformer (Output voltage: AC 100 V) (Note 3)
• Camera DSLR-A100
• Compact Flash (CF) Card (For image saving)
• Screen (Art paper)
• Tape Measure
• Plane Mirror (For SLRs)
• Adhesive bond (B-10): J-6082-612-A
• Color Calculator 2
Note: Color Calculator 2 is downloadable from the ESI homepage.

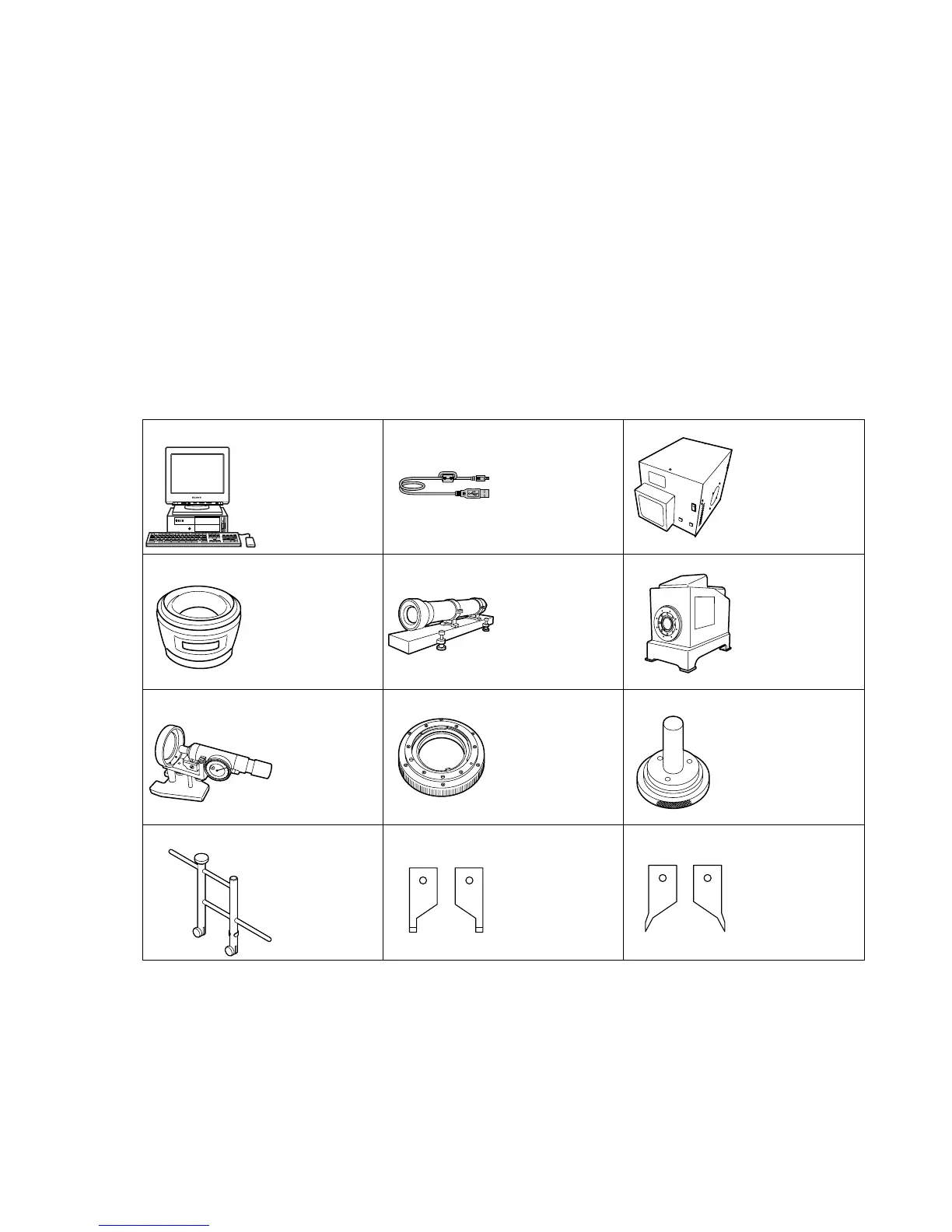

Fig. 4-1-1
20
30
40
50
60
70
80
90
0
10
Personal computer
(Note 1)
AE master lens
J-6082-597-A
Flange back gauge
(43.50mm)
J-6082-608-A
Flange back tester
J-6082-606-A
A-mount
attachment
J-6082-607-A
Lens test projector
J-6082-605-A
(Note 3)
1000 mm Collimator
110V: J-6082-604-A
240V: J-6082-604-B
(Note 2)
USB cord with
connector
1-833-062-11
Luminance box
J-6082-581-A
J-1
J-9J-7
J-2
J-4 J-6J-5
J-8
J-3
J-10
Universal wrench
J-6082-609-A
J-11
Chip-A for
universal wrench
J-6082-609-1
J-12
Chip-B for
universal wrench
J-6082-609-2
Ver 1.2 2007.01
