SAL28F28 (2.8/28) (28mm F2.8)
5) Loosen the three screws fixing the focus ring holding plate, and set the focus ring to the infinity stop position without moving the
helicoid. (Refer to Fig.4-4-7.)
6) Tighten the six screws applying the adhesive bond (B-10) to the tip of screws.

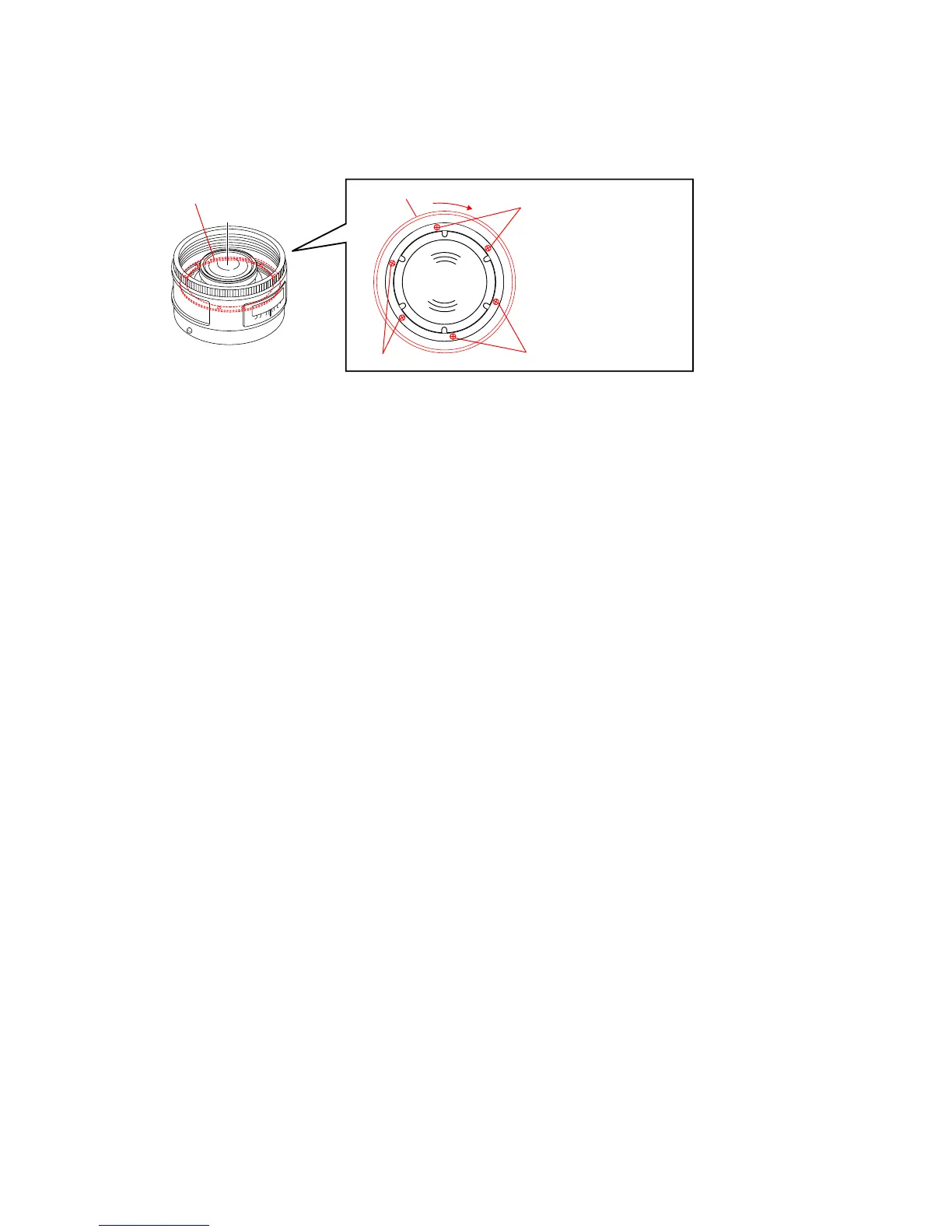

Fig.4-4-7
7) Check that the focus ring moves smoothly from minimum distance to infinity, and perform “4-4-1. Flange Back (f’F) Check” again.
Focus Ring Holding Plate
Distance Tube
Apply the adhesive bond(B-10)
Apply the adhesive bond(B-10)
Apply the adhesive bond(B-10)
