SAL28F28 (2.8/28) (28mm F2.8)
2-1. DISASSEMBLY
2-1-1. MIRROR TUBE BLOCK, FOCUS RING AND FRONT LENS HOLDER BLOCK
1G1 Stopper Ring
2Mirror Tube Block
4Front Lens
Holder Block
3Focus Ring
A
HELP03
FLANGE BACK
ADJUSTMENT
HELP01
HELP02
B
5Fixed Holding Tube
B
A

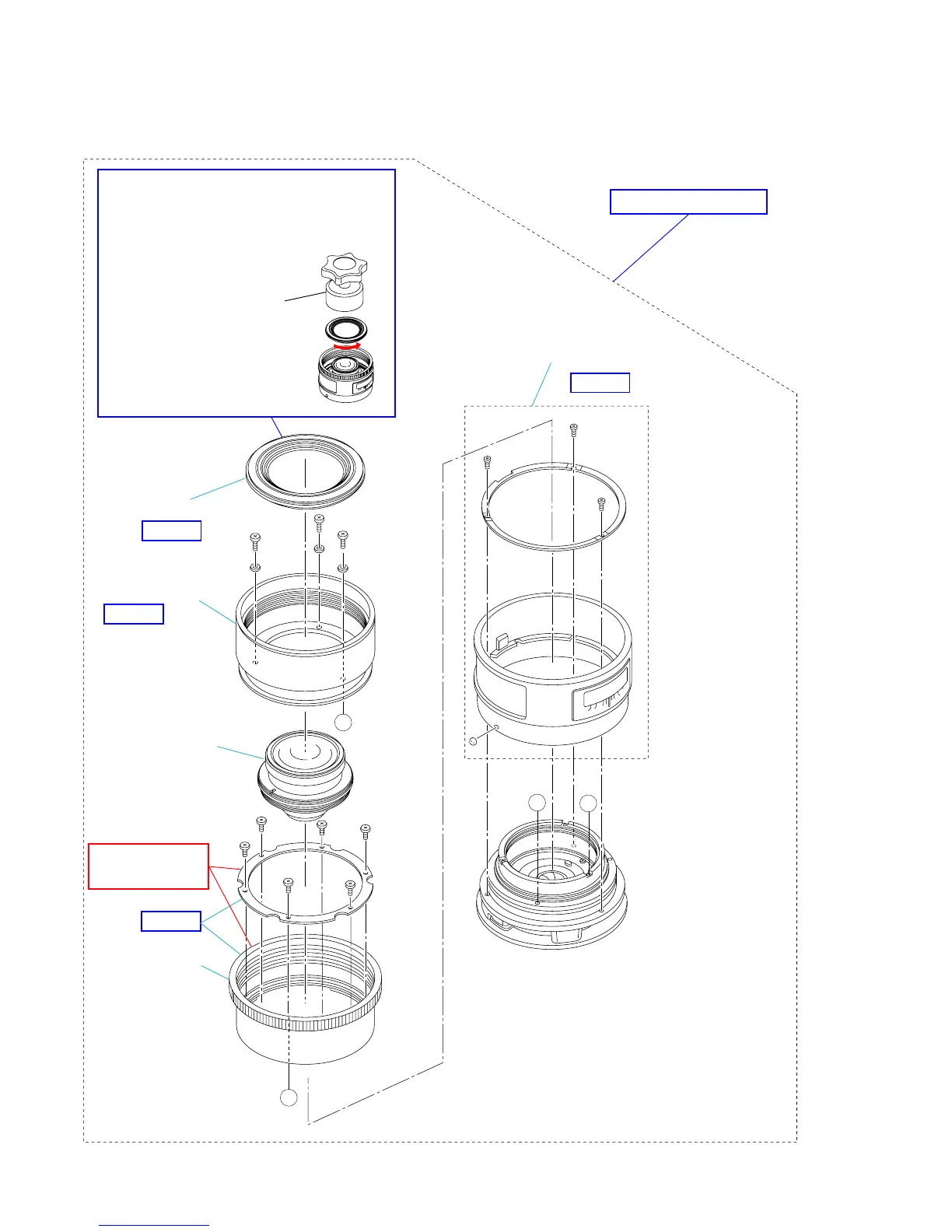

EXPLODED VIEW
HELP04
Note:
Name ring wrench B (49 mm)
Remove the G1 stopper ring using the
name ring wrench B (49 mm).
Name ring wrench B (49 mm):
J-6082-586-A
