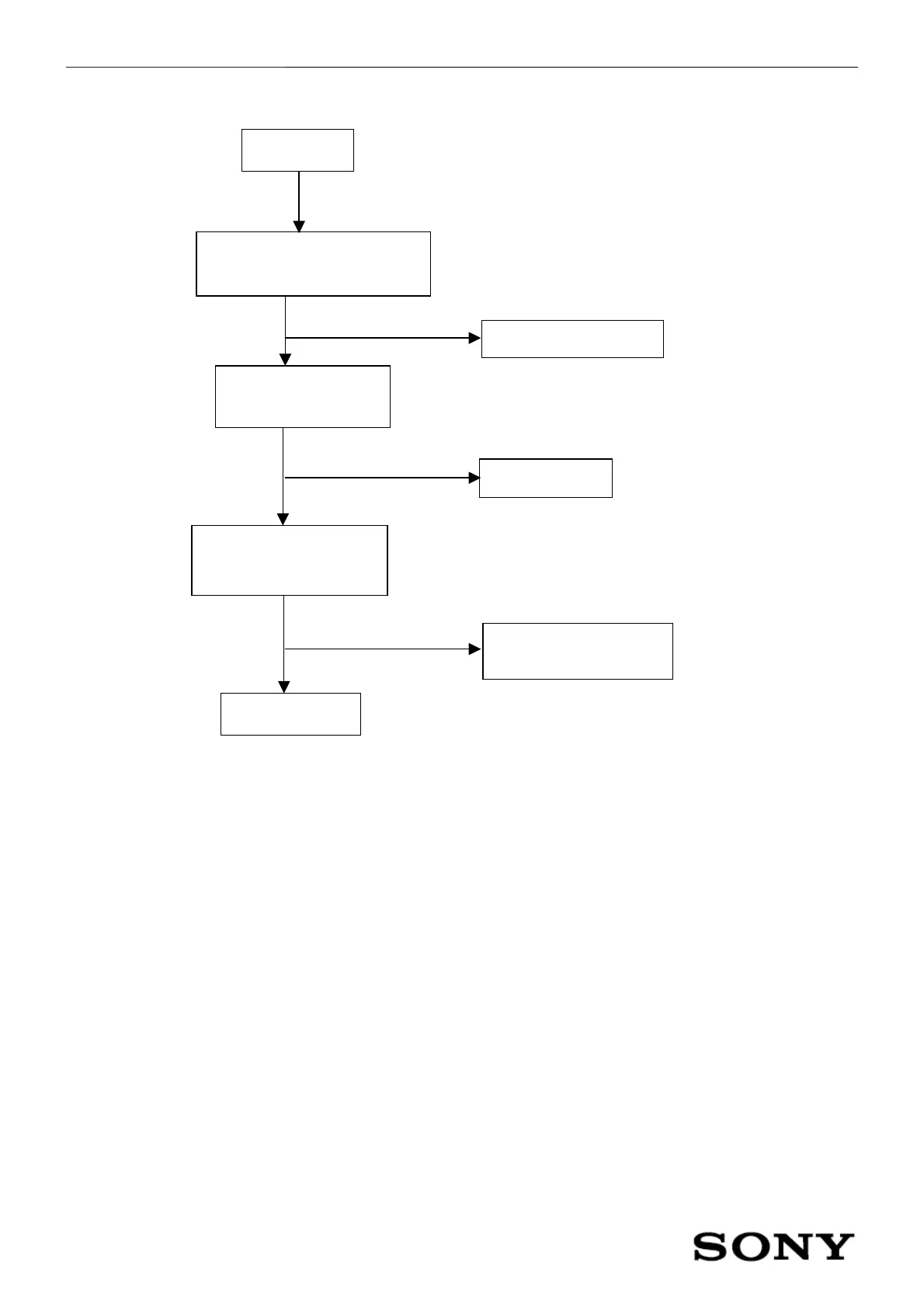

No picture (LED orange)
No picture
Measure U602 PIN2=3.3V
U603 PIN2=1.8V
Replace U602, U603
Replace U301
X301 oscillate
waveform is normal
Replace X301
OK
OK
NG
NG
Hs, Vs input signal are
normal?
OK
NG
Check Correspondent
component.
