Sony SDM-E96D - Interface Description

19" LCD Color Monitor SDM-E96D
7

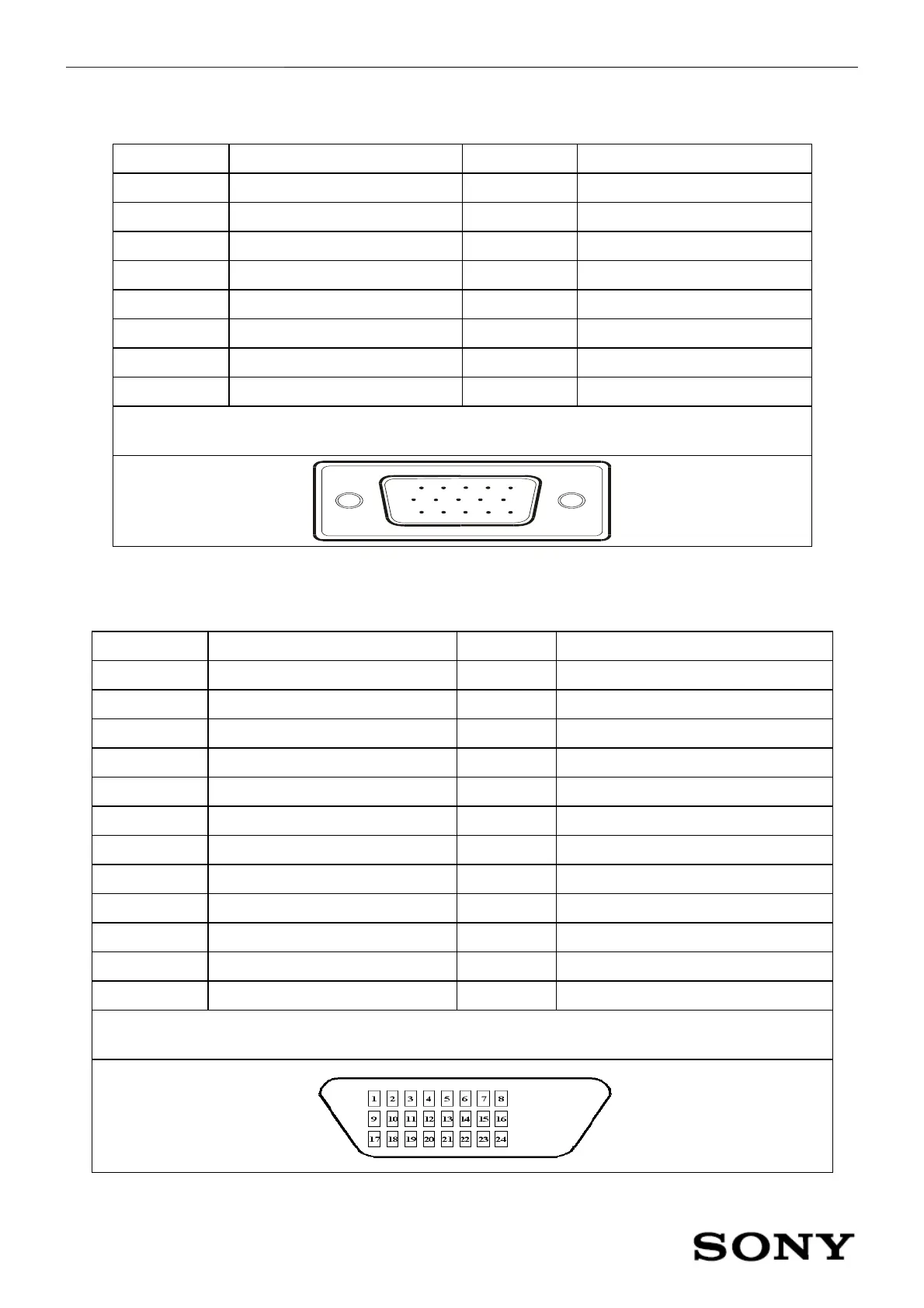

2.2 Interface Description
Analog connectors
NO. Description NO. Description
1. Red Video 9. +5V
2. Green Video 10. Detect Cable
3. Blue Video 11. NC
4. GND 12. SDA
5. Sensor for PC 13. Horizontal Sync
6. Red GND 14. Vertical Sync
7. Green GND 15. SCL
8. Blue GND
VGA Connector layout
15
6
10
11 15
Digital connectors
NO. Description NO. Description
1. TMDS Data 2- 13. No Connect
2. TMDS Data 2+ 14. +5V
3. TMDS Data 2 Shield 15. Sense of connection PC
4. No Connect 16. Hot Plug Detect
5. No Connect 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7. DDC Data 19. TMDS Data 0 Shield
8. No Connect 20. No Connect
9. TMDS Data1- 21. No Connect
10. TMDS Data 1+ 22. TMDS Clock Shield
11. TMDS Data 1 Shield 23. TMDS Clock +
12. No Connect 24. TMDS Clock -
VGA Connector layout
