Sony SDM-S91 - Chassis Components

SDM-S91(E) 3-2
REF.NO. PART NO. DESCRIPTION REMARK

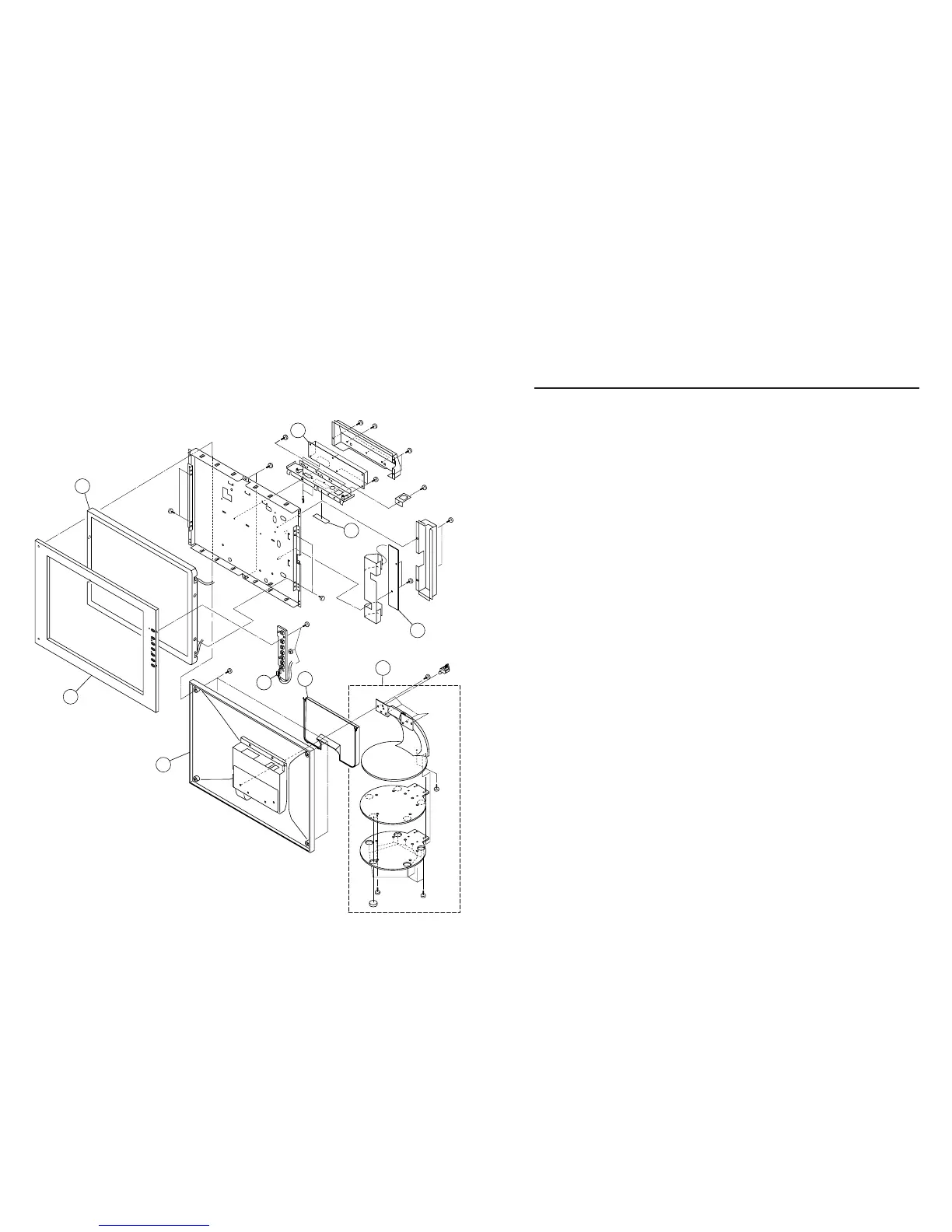

3-1. CHASSIS
1 X-4041-076-1 ASSY, BEZEL FULL (U/C)
X-4041-309-1 ASSY, BEZEL FULL (AEP)
2 1-805-139-11 LCD PANEL (LTM190E1-L04)
3 1-761-654-11 I/F BOARD MOUNT
4 1-761-652-11 KEYBOARD MOUNT
5 1-761-653-11 INVERTER MOUNT
6 X-4041-089-1 STAND ASSY (U/C)
X-4041-308-1 STAND ASSY (AEP)
7 4-092-085-01 COVER, REAR (U/C)
4-093-516-01 COVER, REAR (AEP)
8 X-4041-119-1 ASSY, CABINET FULL (U/C)
X-4041-306-1 ASSY, CABINET FULL (AEP)
9 * 4-092-089-01 LABEL, INFORMATION (U/C)
* 4-092-089-11 LABEL, INFORMATION (AEP)
PWH 3x6
1
8
9
2
3
5
P3 x 4
P3 x 4
P3 x 4
P3 x 4
PSW4 x 10
PTP4 x 12
K3 x 8
P4 x 10
PTP3 x 8
PWH 3x6
PWH 3x6
PTP 4x12
PWH
3 x 6
PWH
3 x 6
PTP 3x8
PWH
3x6
4
6
7
