SDM-S91(E) 1-3

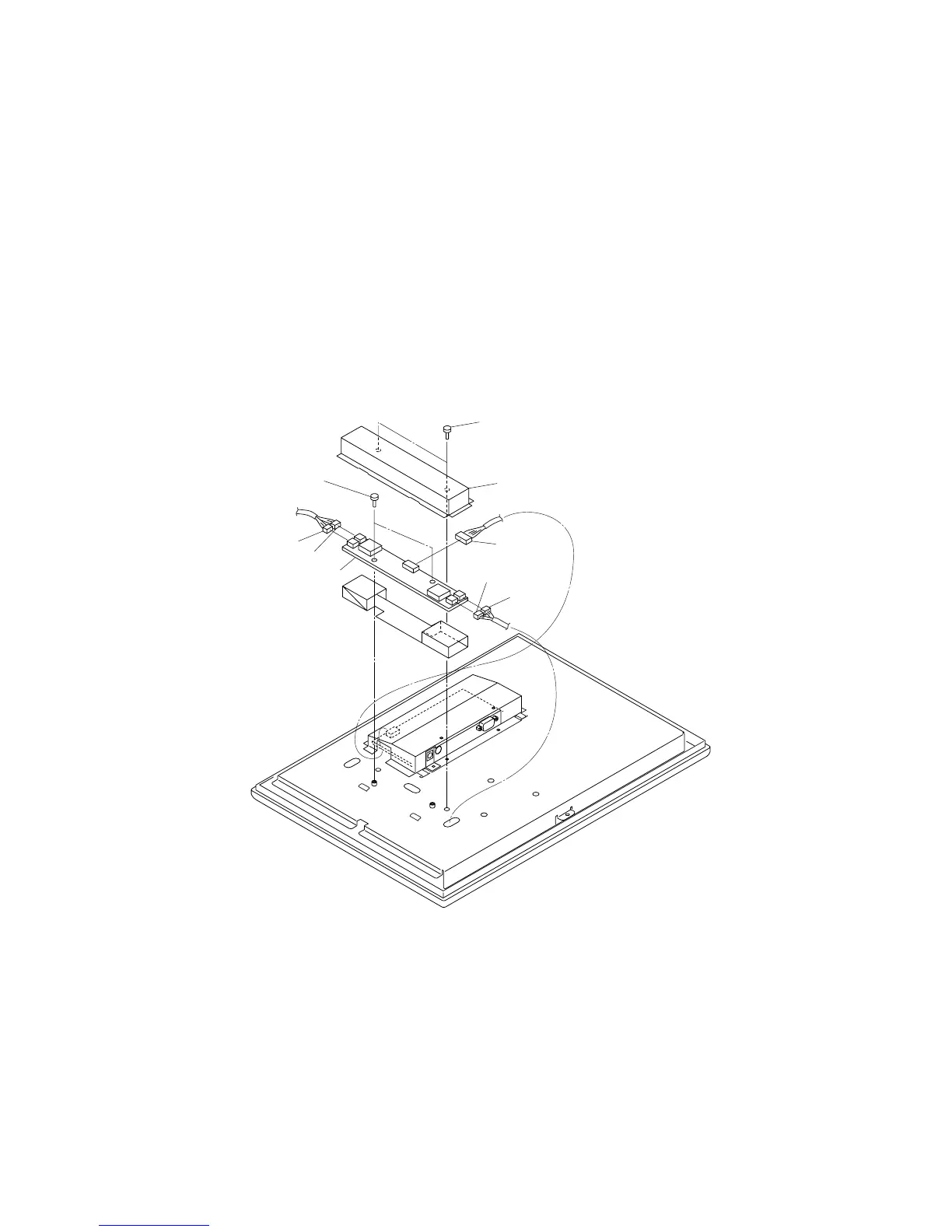

1-3. INVERTER MOUNT REMOVAL
3 Two screws
(+PWH 3x6)
8CN5
4 CN02
9 Inverter mount
5 CN03
2 Inverter shield
1 Two screws
(+P 3x4)
7 CN04
6 CN01
