Sony SDX420C - Mounting Holes (3.5 Drive)

8

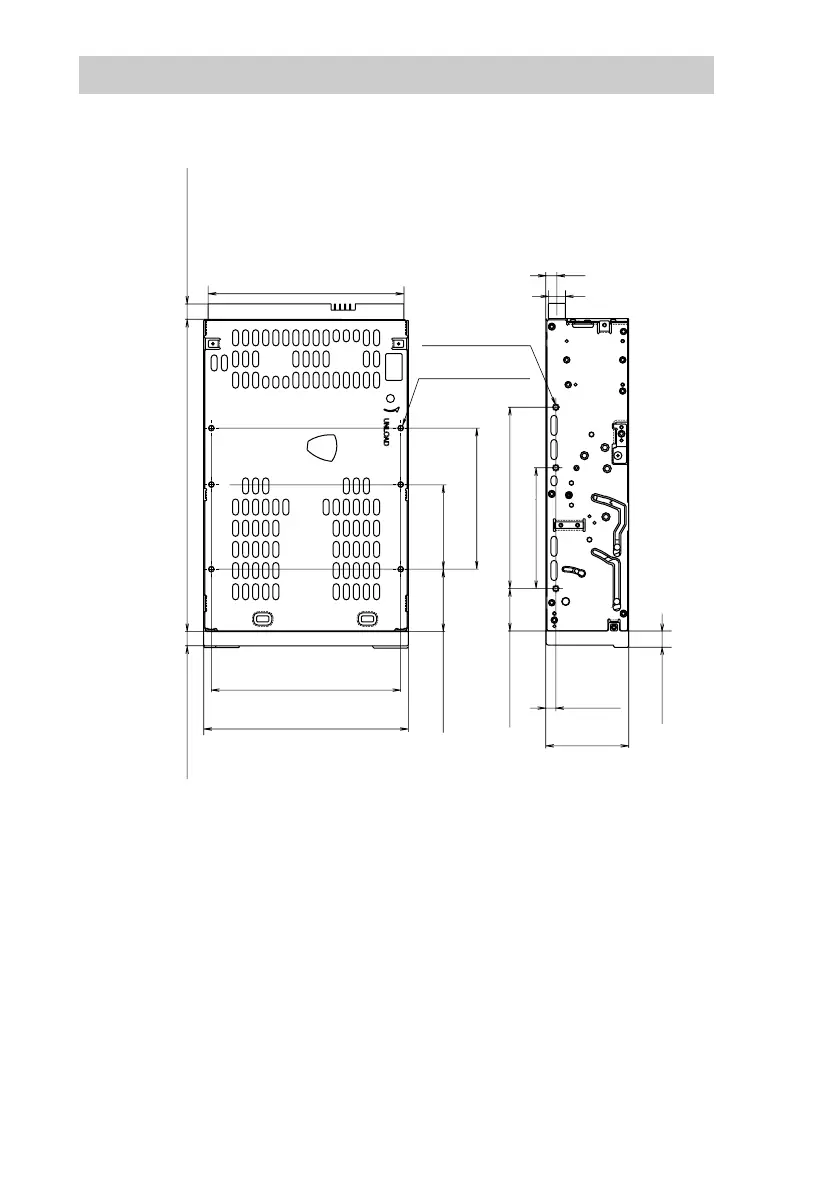

Mounting Holes
For 3.5" Standard Height (SDX-420C, SDX-520C)
6-M3 (depth
2.5 mm (0.10 in) max.)
70.0±0.3 mm (2.76±0.01 in)
42.0±0.3 mm (1.65±0.01 in)
31.0±0.3 mm (1.22±0.01 in)
7.0±0.5 mm (0.28±0.02 in)
155.0±0.5 mm (6.10±0.02 in) 7.6±0.5 mm (0.30±0.02 in)
94.0±0.3 mm (3.70±0.01 in)
101.6±0.5 mm (4.00±0.02 in)
90.0±0.3 mm (3.54±0.01 in)
60.0±0.3 mm (2.36±0.01 in)
21.0±0.3 mm (0.83±0.01 in)
5.0±0.3 mm
(0.20±0.01 in)
41.2±0.5 mm
(1.62±0.02 in)
3-M3 (depth
2.5 mm (0.10 in) max.)
95.5 mm (3.76 in)
8.45 mm (0.333 in)
5.53±0.5 mm
(0.218±0.02 in)
7.4±0.5 mm (0.29±0.02 in)
