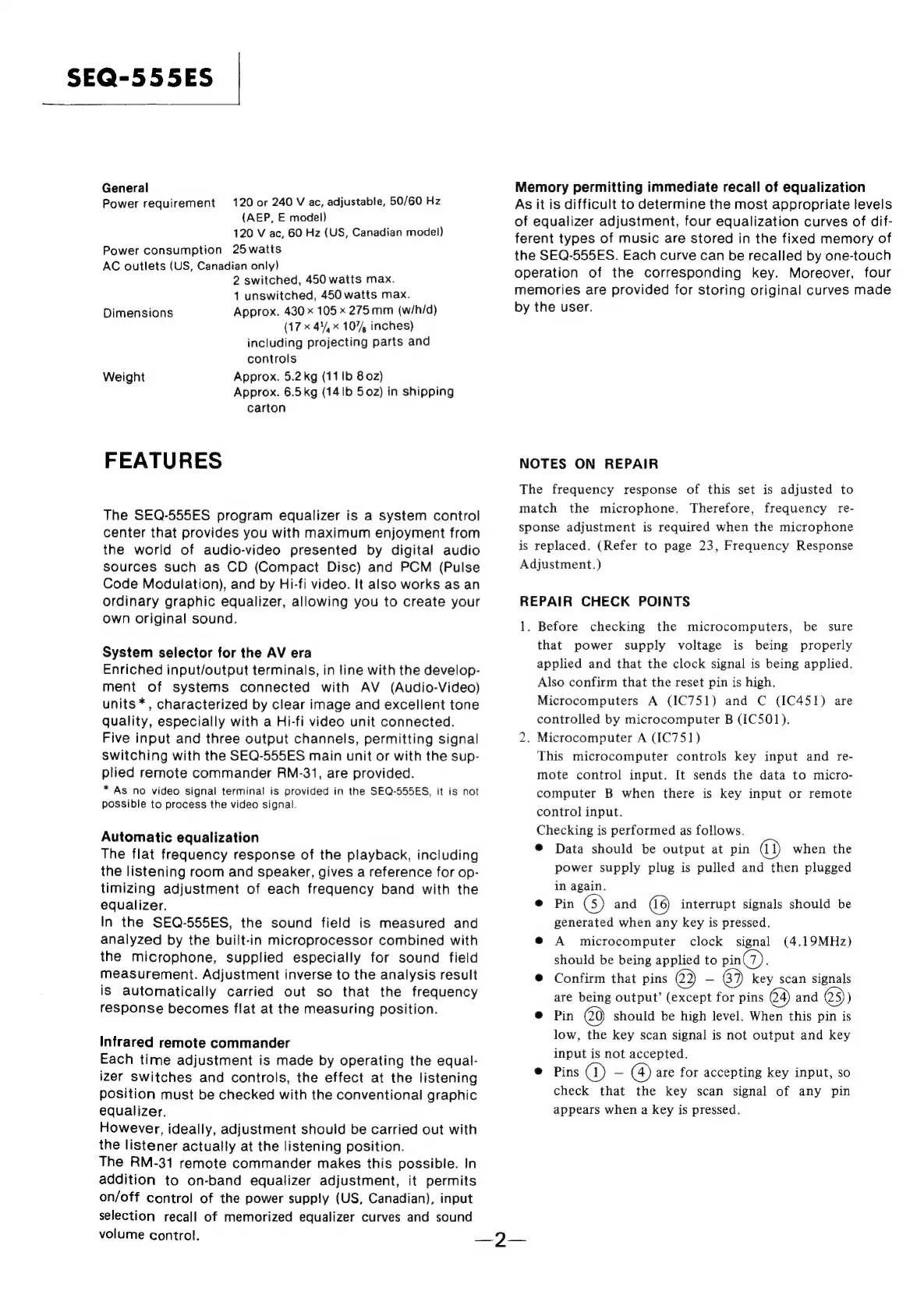

SEQ-555ES
General
Power
requirement
120
or
240
V
ac,
adjustable,
50/60
Hz
(AEP,
E
model)
120
V
ac,
60
Hz
(US,
Canadian
model)
Power
consumption
25
watts
AC
outlets
(US,
Canadian
only)
2
switched,
450
watts
max.
1
unswitched,
450
watts
max.
Dimensions
Approx.
430
x
105
x
275
mm
(wi/h/d)
(17
x
4Y,
x
107,
inches)
including
projecting
parts
and
controls
Weight
Approx.
5.2kg
(11
1b
802)
Approx.
6.5kg
(141b
502)
in
shipping
carton
FEATURES
The
SEQ-555ES
program
equalizer
is
a
system
control
center
that
provides
you
with
maximum
enjoyment
from
the
world
of
audio-video
presented
by
digital
audio
sources
such
as
CD
(Compact
Disc)
and
PCM
(Pulse
Code
Modulation),
and
by
Hi-fi
video.
It
also
works
as
an
ordinary
graphic
equalizer,
allowing
you
to
create
your
own
original
sound.
System
selector
for
the
AV
era
Enriched
input/output
terminals,
in
line
with
the
develop-
ment
of
systems
connected
with
AV
(Audio-Video)
units
*,
characterized
by
clear
and
excellent
tone
quality,
especially
with
a
Hi-fi
video
unit
connected.
Five
input
and
three
output
channels,
permitting
signal
switching
with
the
SEQ-555ES
main
unit
or
with
the
sup-
plied
remote
commander
RM-31,
are
provided.
*
As
no
video
signal
terminal
is
provided
in
the
SEQ-555ES,
it
is
not
possible
to
process
the
video
signal.
Automatic
equalization
The
flat
frequency
response
of
the
playback,
including
the
listening
room
and
speaker,
gives
a
reference
for
op-
timizing
adjustment
of
each
frequency
band
with
the
equalizer.
In
the
SEQ-555ES,
the
sound
field
is
measured
and
analyzed
by
the
built-in
microprocessor
combined
with
the
microphone,
supplied
especially
for
sound
field
measurement.
Adjustment
inverse
to
the
analysis
result
is
automatically
carried
out
so
that
the
frequency
response
becomes
flat
at
the
measuring
position.
Infrared
remote
commander
Each
time
adjustment
is
made
by
operating
the
equal-
izer
switches
and
controls,
the
effect
at
the
listening
position
must
be
checked
with
the
conventional
graphic
equalizer.
However,
ideally,
adjustment
should
be
carried
out
with
the
listener
actually
at
the
listening
position.
The
RM-31
remote
commander
makes
this
possible.
In
addition
to
on-band
equalizer
adjustment,
it
permits
on/off
control
of
the
power
supply
(US,
Canadian),
input
selection
recall
of
memorized
equalizer
curves
and
sound
volume
control.
Memory
permitting
immediate
recall
of
equalization
As
it
is
difficult
to
determine
the
most
appropriate
levels
of
equalizer
adjustment,
four
equalization
curves
of
dif-
ferent
types
of
music
are
stored
in
the
fixed
memory
of
the
SEQ-555ES.
Each
curve
can
be
recalled
by
one-touch
operation
of
the
corresponding
key.
Moreover,
four
memories
are
provided
for
storing
original
curves
made
by
the
user.
NOTES
ON
REPAIR
The
frequency
response
of
this
set
is
adjusted
to
match
the
microphone.
Therefore,
frequency
re-
sponse
adjustment
is
required
when
the
microphone
is
replaced.
(Refer
to
page
23,
Frequency
Response
Adjustment.)
REPAIR
CHECK
POINTS
1.
Before
checking
the
microcomputers,
be
sure
that
power
supply
voltage
is
being
properly
applied
and
that
the
clock
signal
is
being
applied.
Also
confirm
that
the
reset
pin
is
high.
Microcomputers
A
(IC751)
and
C
(IC451)
are
controlled
by
microcomputer
B
(1C501).
.
Microcomputer
A
(IC751)
This
microcomputer
controls
key
input
and
re-
mote
control
input.
It
sends
the
data
to
micro-
computer
B
when
there
is
key
input
or
remote
control
input.
Checking
is
performed
as
follows.
@
Data
should
be
output
at
pin
ay
when
the
power
supply
plug
is
pulled
and
then
plugged
in
again.
@
Pin
(5)
and
(16)
interrupt
signals
should
be
generated
when
any
key
is
pressed.
@
A
microcomputer
clock
signal
(4.19MHz)
should
be
being
applied
to
pin(7).
®
Confirm
that
pins
Q)
key
scan
signals
are
being
output’
(except
for
pins
and
@5)
@
Pin
should
be
high
level.
When
this
pin
is
low,
the
key
scan
signal
is
not
output
and
key
input
is
not
accepted.
@
Pins
Q)
_
(4)
are
for
accepting
key
input,
so
check
that
the
key
scan
signal
of
any
pin
appears
when
a
key
is
pressed.
bo
—2—
