SEQ-555ES
SEQ-555ES

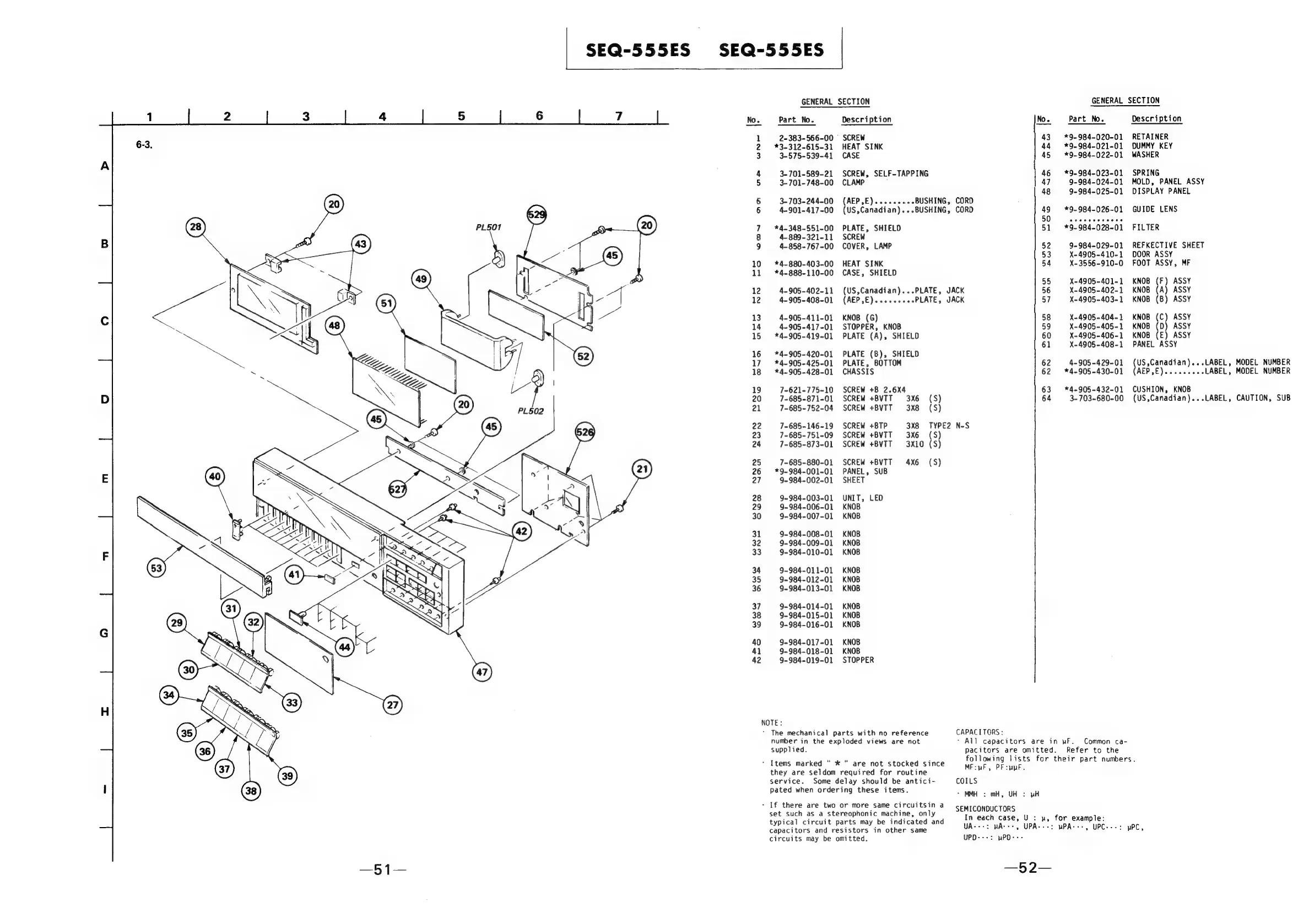

GENERAL SECTION GENERAL SECTION
No. Part No. Description No. Part No. Description
1 2-383-566-00 SCREW 43 *9-984-020-01 RETAINER
2 ¥*3-312-615-31 HEAT SINK 44 *9-984-021-01 DUMMY KEY
3 3-575-539-41 CASE 45 *9.984-022-01 WASHER
4 3-701-589-21 SCREW, SELF-TAPPING 46 *9-984-023-01 SPRING
5 3-701-748-00 CLAMP ; 47 9-984-024-01 MOLD, PANEL ASSY
48 9-984-025-01 DISPLAY PANEL
6 3-703-244-00 (AEP,E).......-+-BUSHING, CORD
6 4-901-417-00 (US,Canadian)...BUSHING, CORD 49 *9-984-026-01 GUIDE LENS
50 errr ey
7 ~=-*4-348-551-00 PLATE, SHIELD 51 *9-984-028-01 FILTER
8 4-889-321-11 SCREW
9 4-858-767-00 COVER, LAMP 52 9-984-029-01 REFKECTIVE SHEET
53 X-4905-410-1 DOOR ASSY
10 =*4-880-403-00 HEAT SINK 54 X-3556-910-0 FOOT ASSY, MF
11 *4-888-110-00 CASE, SHIELD
55 X-4905-401-1 KNOB (F) ASSY
12 4-905-402-11 (US,Canadian)...PLATE, JACK 56 X-4905-402-1 KNOB (A) ASSY
12 4-905-408-01 (AEP,E).......++PLATE, JACK 57 X-4905-403-1 KNOB (8) ASSY
13 4-905-411-01 KNOB (G) 58 X-4905-404-1 KNOB (C) ASSY
14 4-905-417-01 STOPPER, KNOB 59 X-4905-405-1 KNOB (D) ASSY
15 *4-905-419-01 PLATE (A), SHIELD 60 X-4905-406-1 KNOB (E) ASSY
61 X-4905-408-1 PANEL ASSY
16 *4-905-420-01 PLATE (8), SHIELD
17. *4-905-425-01 PLATE, BOTTOM 62 4-905-429-01 (US,Canadian)...LABEL, MODEL NUMBER
18 *4-905-428-01 CHASSIS 62 *4-905-430-01 (AEP,E)....+++eLABEL, MODEL NUMBER
19 7-621-775-10 SCREW +B 2.6X4 63 *4-905-432-01 CUSHION, KNOB
20 7-685-871-01 SCREW +BVTT 3X6 (S) 64 3-703-680-00 (US,Canadian)...LABEL, CAUTION, SUB
21 7-685-752-04 SCREW +BVTT 3X8 (S)
22 7-685-146-19 SCREW +BTP 3X8 TYPE2 N-S
23 7-685-751-09 SCREW +BVTT 3X6 (S)
24 7-685-873-01 SCREW +BVTT 3x10 (S)
25 7-685-880-01 SCREW +BVTT 4X6 (S)
26 *9-984-001-01 PANEL, SUB
27 9-984-002-01 SHEET
28 9-984-003-01 UNIT, LED
29 9-984-006-01 KNOB
30 9-984-007-01 KNOB
31 9-984-008-01 KNOB
32 9-984-009-01 KNOB
33 9-984-010-01 KNOB
34 9-984-011-01 KNOB
35 9-984-012-01 KNOB
36 9-984-013-01 KNOB
37 9-984-014-01 KNOB
38 9-984-015-01 KNOB
39 9-984-016-01 KNOB
40 9-984-017-01 KNOB
41 9-984-018-01 KNOB
42 9-984-019-01 STOPPER
NOTE:
CAPACITORS:
* All capacitors are in wF. Common ca-
pacitors are omitted. Refer to the
following lists for their part numbers.
MF: uF, PF:upF.
* The mechanical parts with no reference
number in the exploded views are not
supplied.
* Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be antici- COILS
pated when ordering these items. MMH: mH, UH: wH
: If there are two or more same circuitsin a
set such as a stereophonic machine, only BA ntadhaies U: f le:
typical circuit parts may be indicated and Oke eee UPA He shOt examples
capacitors and resistors in other same pes MAS e, rt MPAs ++, UPC--+: pPC,
circuits may be omitted. UPD---: uPD---
—52—
