Sony SEQ-555ES - Page 37

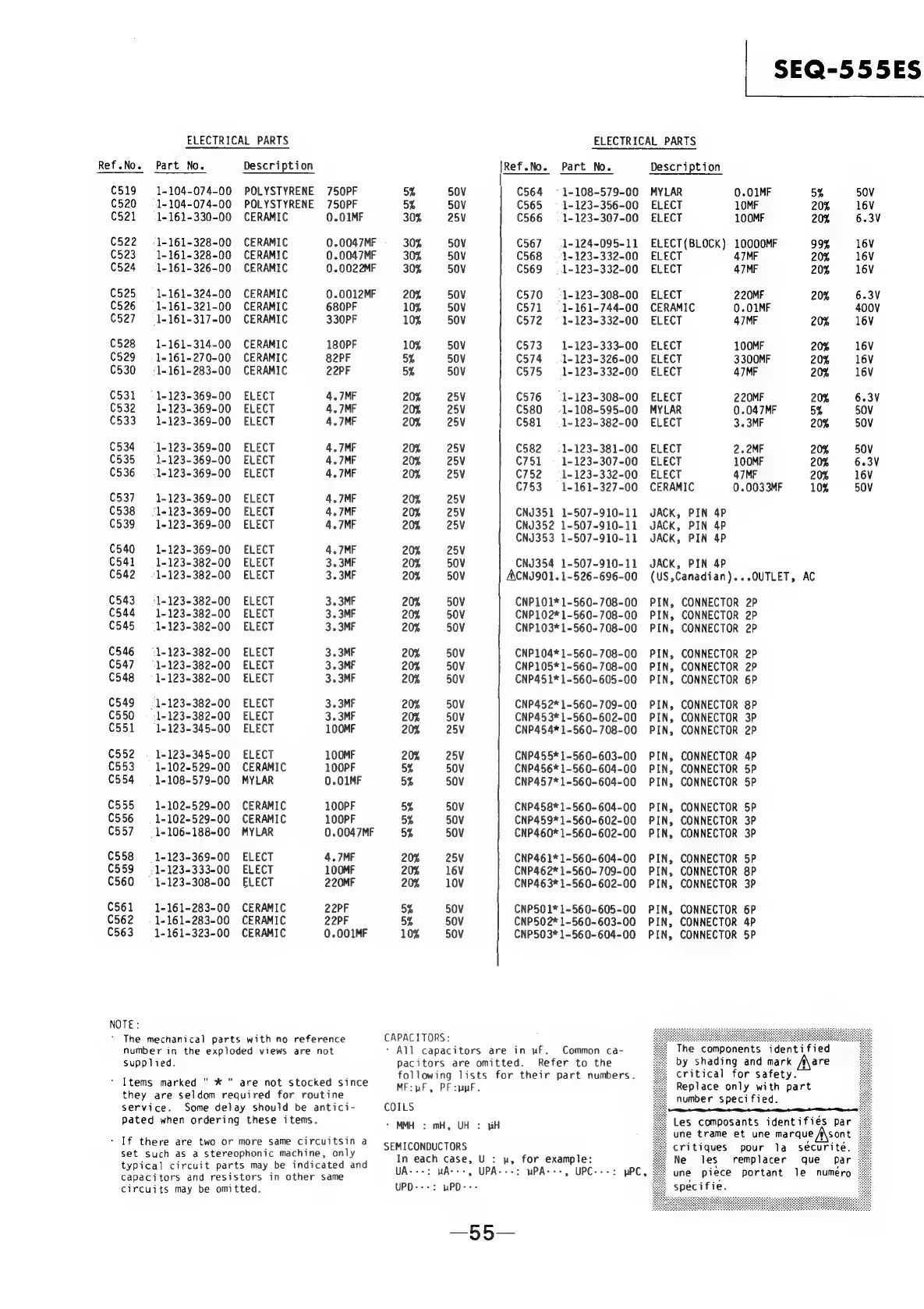

ELECTRICAL PARTS
ELECTRICAL PARTS
SEQ-555ES
Ref.No. Part No. Description [Ref.No. Part No. Description
BET Vie FAME O's DESCElpe Lon: ee MEscr tp von
C519 =1-104-074-00 POLYSTYRENE 750PF 5% 50V C564 = 1-108-579-00 MYLAR 0.01MF 5% 50V
C520 =: 1-104-074-00 POLYSTYRENE 750PF 5% 50V C565 =: 1-123-356-00 ELECT 10MF 20% 16V
C521 =: 1-161-330-00 CERAMIC 0.01MF 30% 25V C566 =: 1- 123-307-00 ELECT 100MF 20% 6.3V
C522 =: 1-161-328-00 CERAMIC 0.0047MF 30% 50V C567 =: 1-124-095-11 ELECT(BLOCK) 10000MF 99% 16V
C523: 1-161-328-00 CERAMIC 0.0047MF 30% 50V C568 =: 1-123-332-00 ELECT 47MF 20% 16V
C524 =: 1-161-326-00 CERAMIC 0.0022MF 30% 50V C569 =: 1-123-332-00 ELECT 47MF 20% 16V
C525 = 1-161-324-00 CERAMIC 0.0012MF 20% 50V C570 =: 1-123-308-00 ELECT 220MF 20% 6.3V
C526 =: 1-161-321-00 CERAMIC 680PF 10% 50V C571 =: 1-161-744-00 CERAMIC 0.01MF 400V
C527. ~—s- 1-161-317-00 CERAMIC 330PF 10% 50V C572 = 1-123-332-00 ELECT 47MF 20% 16V
C528 = 1-161-314-00 CERAMIC 180PF 10% 50V C573: 1-123-333-00 ELECT 100MF 20% 16V
C529 = 1-161-270-00 CERAMIC 82PF 5% 50V C574 =: 1-123-326-00 ELECT 3300MF 20% 16V
C530 =: 1-16 1-283-00 CERAMIC 22PF 5% 50V C575 =: 1-123-332-00 ELECT 47MF 20% 16V
C531 =: 1-123-369-00 ELECT 4.7MF 20% 25V C576 =: 1-123-308-00 ELECT 220MF 20% 6.3V
C532 = =1-123-369-00 ELECT 4.7MF 20% 25V C580 =: 1- 108-595-00 MYLAR 0.047MF 5% 50V
C533 = 1-123-369-00 ELECT 4.7MF 20% 25V C581 =: 1-123-382-00 ELECT 3.3MF 20% 50V
C534 ~—s: 1-123-369-00 ELECT 4.7MF 20% 25V C582 =: 1-123-381-00 ELECT 2.2MF 20% 50V
C535 = 1-123-369-00 ELECT 4.7MF 20% 25V C751 = 1-123-307-00 ELECT 100MF 20% 6.3V
C536 =: 1-123-369-00 ELECT 4.7MF 20% 25V C752 =: 1-123-332-00 ELECT 47MF 20% 16V
C753: 1-161-327-00 CERAMIC 0.0033MF 10% 50V
C537: 1-123-369-00 ELECT 4.7MF 20% 25V
C538 =: 1-123-369-00 ELECT 4.7MF 20% 25V CNJ351 1-507-910-11 JACK, PIN 4P
C539 = 1-123-369-00 ELECT 4. 7MF 20% 25V CNJ352 1-507-910-11 JACK, PIN 4P
CNJ353 1-507-910-11 JACK, PIN 4P
C540 = 1-123-369-00 ELECT 4.7MF 20% 25V
C541 =1-123-382-00 ELECT 3.3MF 20% 50V CNJ354 1-507-910-11 JACK, PIN 4P
C542 =: 1-123-382-00 ELECT 3.3MF 20% 50V ACNJ901.1-526-696-00 (US,Canadian)...OUTLET, AC
C543 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP101*1-560-708-00 PIN, CONNECTOR 2P
C544 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP102*1-560-708-00 PIN, CONNECTOR 2P
C545 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP103*1-560-708-00 PIN, CONNECTOR 2P
C546 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP104*1-560-708-00 PIN, CONNECTOR 2P
C547 ~—s-: 1-123-382-00 ELECT 3.3MF 20% 50V CNP105*1-560-708-00 PIN, CONNECTOR 2P
C548 = 1-123-382-00 ELECT 3.3MF 20% 50V CNP451*1-560-605-00 PIN, CONNECTOR 6P
C549 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP452*1-560-709-00 PIN, CONNECTOR 8P
C550 =: 1-123-382-00 ELECT 3.3MF 20% 50V CNP453*1-560-602-00 PIN, CONNECTOR 3P
C551 = 1+123-345-00 ELECT 100MF 20% 25V CNP454*1-560-708-00 PIN, CONNECTOR 2P
C552 = 1-123-345-00 ELECT 100MF 20% 25V CNP455*1-560-603-00 PIN, CONNECTOR 4P
C553:
1-102-529-00
CERAMIC
100PF
5%
50V
CNP456*1-560-604-00
PIN,
CONNECTOR
5P
C554 = 1-108-579-00 MYLAR 0.01MF 5% 50V CNP457*1-560-604-00 PIN, CONNECTOR 5P
C555 = 1-102-529-00 CERAMIC 100PF 5% 50V CNP458*1-560-604-00 PIN, CONNECTOR 5P
C556 = 1-102-529-00 CERAMIC 100PF 5% 50V CNP459*1-560-602-00 PIN, CONNECTOR 3P
C557 ~=—s-: 1-106-188-00 MYLAR 0.0047MF 5% 50V CNP460*1-560-602-00 PIN, CONNECTOR 3P
C558 = 1-123-369-00 ELECT 4.7MF 20% 25V CNP461*1-560-604-00 PIN, CONNECTOR 5P
C559 =: 1-123-333-00 ELECT 100MF 20% 16V CNP462*1-560-709-00 PIN, CONNECTOR 8P
C560 =: 1-123-308-00 ELECT 220MF 20% 10V CNP463*1~560-602-00 PIN, CONNECTOR 3P
C561 1-161-283-00 CERAMIC 22PF 5% 50V CNP501*1-560-605-00 PIN, CONNECTOR 6P
C562 = 1+161-283-00 CERAMIC 22PF 5% 50V CNP502*1-560-603-00 PIN, CONNECTOR 4P
C563: 1-161-323-00 CERAMIC 0.001MF 10% 50V CNP503*1-560-604-00 PIN, CONNECTOR 5P
NOTE:
* The mechanical parts with no reference CAPACITORS:
* All capacitors are in uF. Common ca-
pacitors are omitted. Refer to the
following lists for their part numbers.
MF:yF, PF:upF.
number in the exploded views are not
supplied.
by shading and mark Aare
critical for safety.
Replace only with part
number specified.
‘ Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be antici- COILS .
pated when ordering these items. - MMH: mH, UH : LH Les composants identifiés par
i tae ee une trame et une marque A\sont
‘If there are two or teeta te aaa oy a SEMICONDUCTORS critiques pour la sécurite.
Set Such as a stereophonic machine, only In each case, U: yu, for example: Ne les remplacer que par
typical circuit parts may be indicated and Rete vee ae
capacitors and resistors in other same UA 2 uA » UPA :
circuits may be omitted. UPD---: uPD---
uPA---, UPC---: pPC, une piece portant le numero
f
—55—
