SEQ-555ES

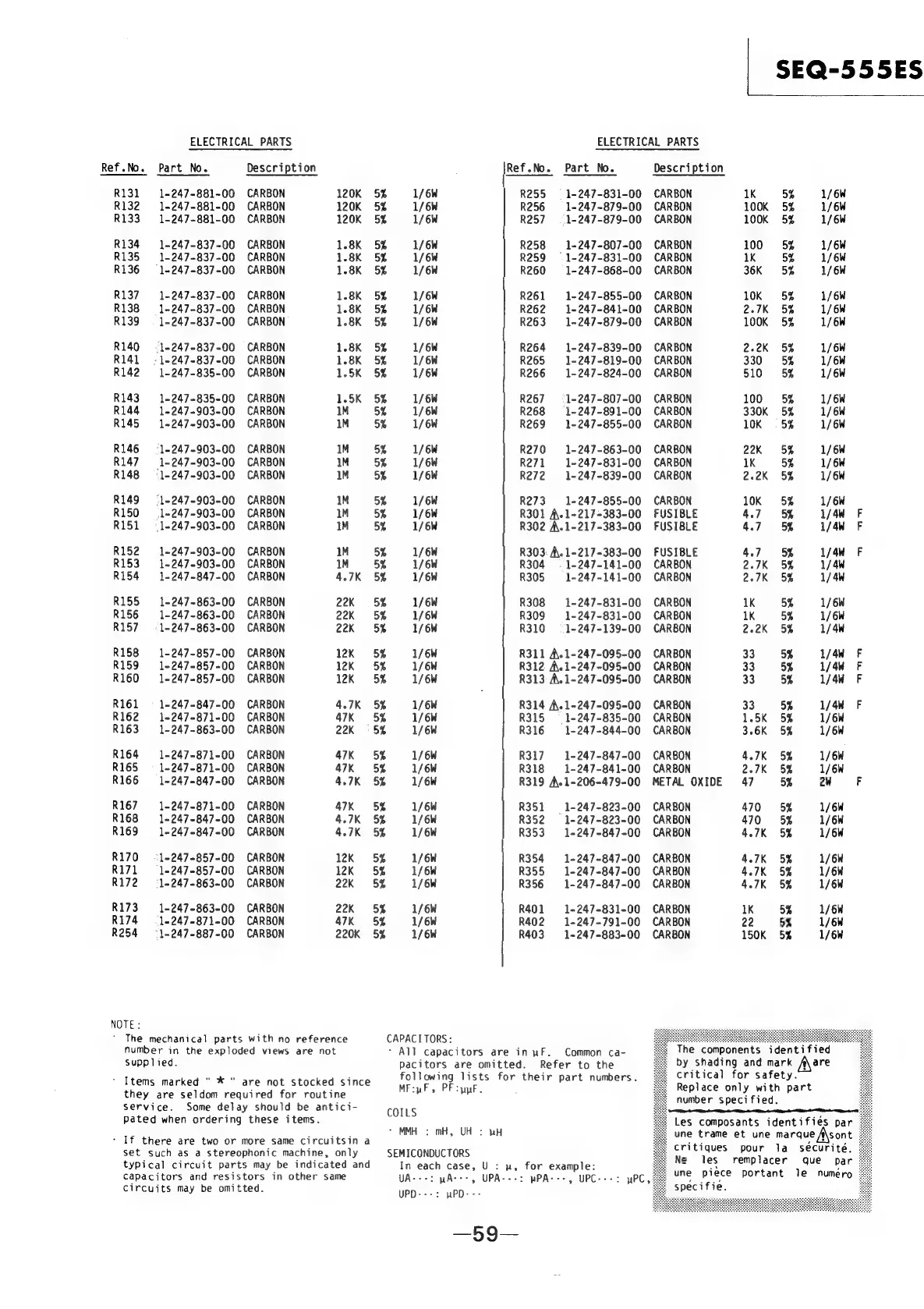

ELECTRICAL PARTS ELECTRICAL PARTS
Ref.No. Part No. Description Ref.No. Part No. Description
R131 =1+247-881-00 CARBON 120K 5% 1/6W R255 = 1-247-831-00 CARBON 1K 5% 1/6W
R132 =1-247-881-00 CARBON 120K 5% 1/6W R256 =1-247-879-00 CARBON 100K 5% 1/6W
R133 1-247-881-00 CARBON 120K 5% 1/6W R257 =: 1-247-879-00 CARBON 100K 5% 1/6W
R134 1-247-837-00 CARBON 1.8K 5% 1/6W R258 1-247-807-00 CARBON 100 «5% 1/6W
R135 1-247-837-00 CARBON 1.8K 5% 1/6W R259 = 1-247-831-00 CARBON 1K 5% 1/6W
R136 = 1+247-837-00 CARBON 1.8K 5% 1/6W R260 1-247-868-00 CARBON 36K = 5% 1/6W
R137 1-247-837-00 CARBON 1.8K 5% 1/6W R261 = 1-247-855-00 CARBON 10K 5% 1/6W
R138 =1-247-837-00 CARBON 1.8K 5% 1/6W R262 =1-247-841-00 CARBON 2.7K 5% 1/6W
R139 = 1-247-837-00 CARBON 1.8K 5% 1/6W R263. 1-247~-879-00 CARBON 100K 5% 1/6W
R140 =: 1-247-837-00 CARBON 1.8K 5% 1/6W R264 ~=1-247-839-00 CARBON 2.2K 5% 1/6W
R141 = 1-247-837-00 CARBON 1.8K 5% 1/6W R265 1-247-819-00 CARBON 330 5% 1/6W
R142 = 1-247-835-00 CARBON 1.5K 5% 1/6W R266 = 1-247-824-00 CARBON 510 5% 1/6W
R143: 1-247-835-00 CARBON 1.5K 5% 1/6W R267. —=—-: 1-247-807-00 CARBON 100 «5% 1/6W
R144 = 1-247-903-00 CARBON 1M 5% 1/6W R268 1-247-891-00 CARBON 330K 5% 1/6W
R145 = 1-247-903-00 CARBON 1M 5% 1/6W R269 = 1-247-855-00 CARBON 10K = 5% 1/6W
R146 =: 1-247-903-00 CARBON 1M 5% 1/6W R270 =1-247-863-00 CARBON 22K 5% 1/6W
R147 1-247-903-00 CARBON 1M 5% 1/6W R271 1-247-831-00 CARBON 1K 5% 1/6W
R148 =: 1-247-903-00 CARBON 1M 5% 1/6W R272 =1-247-839-00 CARBON 2.2K 5% 1/6W
R149 =: 1-247-903-00 CARBON 1M 5% 1/6W R273 1-247-855-00 CARBON 10K 55% 1/6W
R150 =: 1-247-903-00 CARBON 1M 5% 1/6W R301 A\.1-217-383-00 FUSIBLE 4.7 S&% 1/4W OF
R151 =: 1-247-903-00 CARBON 1M 5% 1/6W R302 A.1-217-383-00 FUSIBLE 4.7 5% 1/4W OF
R152 1-247-903-00 CARBON 1M 5% 1/6W R303: A. 1-217-383-00 FUSIBLE 4.7 5 1/4W F
R153 1-247-903-00 CARBON 1M 5% 1/6W R304 =: 1-247-141-00 CARBON 2.7K 5% 1/4W
R154 1-247-847-00 CARBON 4.7K 5% 1/6W R305 1-247-141-00 CARBON 2.7K 5% 1/4W
R155 1-247-863-00 CARBON 22K = 5% 1/6W R308 1-247-831-00 CARBON 1K 5% 1/6W
R156 = 1-247-863-00 CARBON 22K 5% 1/6W R309 =1-247-831-00 CARBON 1K 5% 1/6W
R157 =: 1-247-863-00 CARBON 22K 5% 1/6W R310 =: 1-247-139-00 CARBON 2.2K 5% 1/4W
R158 1-247-857-00 CARBON 12K 5% 1/6W R311 A.1-247-095-00 CARBON 33 5% 1/4W F
R159 =1-247-857-00 CARBON 12K 5% 1/6W R312 A.1-247-095-00 CARBON 33 5% 1/4W OF
R160 = 1-247-857-00 CARBON 12K 5% 1/6W R313 A.1-247-095-00 CARBON 33 5% 1/4W OF
R161 = 1-247-847-00 CARBON 4.7K 5% 1/6W R314 A.1-247-095-00 CARBON 33 5% 1/4W F
R162 =1-247-871-00 CARBON 47K 5% 1/6W R315 = 1-247-835-00 CARBON 1.5K 5% 1/6W
R163 1-247-863-00 CARBON 22K = 5% 1/6W R316 = 1-247-844-00 CARBON 3.6K 5% 1/6W
R164 1-247-871-00 CARBON 47K 5% 1/6W R317: 1-247-847-00 CARBON 4.7K 5% 1/6W
R165 = 1-247-871-00 CARBON 47K 5% 1/6W R318 1-247-841-00 CARBON 2.7K 5% 1/6W
R166 = 1-247-847-00 CARBON 4.7K 5% 1/6W R319 A.1-206-479-00 METAL OXIDE 47 5% ew F
R167 = 1-247-871-00 CARBON 47K 5% 1/6W R351 1-247-823-00 CARBON 470 «5% 1/6W
R168 1-247-847-00 CARBON 4.7K 5% 1/6W R352 = 1-247-823-00 CARBON 470 85% 1/6W
R169 1-247-847-00 CARBON 4.7K 5% 1/6W R353. 1-247-847-00 CARBON 4.7K 5% 1/6W
R170 =: 1-247-857-00 CARBON 12K 55% 1/6W R354 1-247-847-00 CARBON 4.7K 5% 1/6W
R171 = 1-247-857-00 CARBON 12K 5% 1/6W R355 1-247-847-00 CARBON 4.7K 5% 1/6W
R172 =: 1-247-863-00 CARBON 22K 55% 1/6W R356 1-247-847-00 CARBON 4.7K 5% 1/6W
R173: 1-247-863-00 CARBON 22k 5% 1/6W R401 = 1-247-831-00 CARBON 1K 5% 1/6W
R174 =: 1-247-871-00 CARBON 47K «5% 1/6W R402 1-247-791-00 CARBON 22 5% 1/6W
R254 ~—-: 1-247-887-00 CARBON 220K 5% 1/6W R403 =1-247-883-00 CARBON 150K 5% 1/6W
NOTE:
* The mechanical parts with no reference CAPACITORS:
number
in
the
exploded
views
are
not
*
All
capacitors
are
in
uF.
Common
ca-
P
supplied. pacitors are omitted. Refer to the by shading and mark A\are
- Items marked “ *" are not stocked since pelea iets for their part numbers. oy Sere tae
they are seldom required for routine fae ye p
2 en number specified.
service. Some delay should be antici- COILS
Pated when ordering these items. Les composants identifies par
IS ae Nia * MMH : mH, UH : bH une trame et une marque A\sont
- If there are two or more same circuitsin a critiques pour la sécurité
set
such
as
a
stereophonic
machine,
only
SEMICONDUCTORS
We
ra
:
rs
e.
typical circuit parts may be indicated and In each case, U : un, for example: Cr BES TEMP Lace r, «QUE. “Dar
capacitors and resistors in other same UA---: wAr++, UPA---: pPA---, UPC---: yPC, une piece portant le numero
circuits may be omitted. UPD---: wPD--- specifie.
—59—
