SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-6
DISASSEMBLY
1. Remove in numerical order (1 to 3) in the left figure.

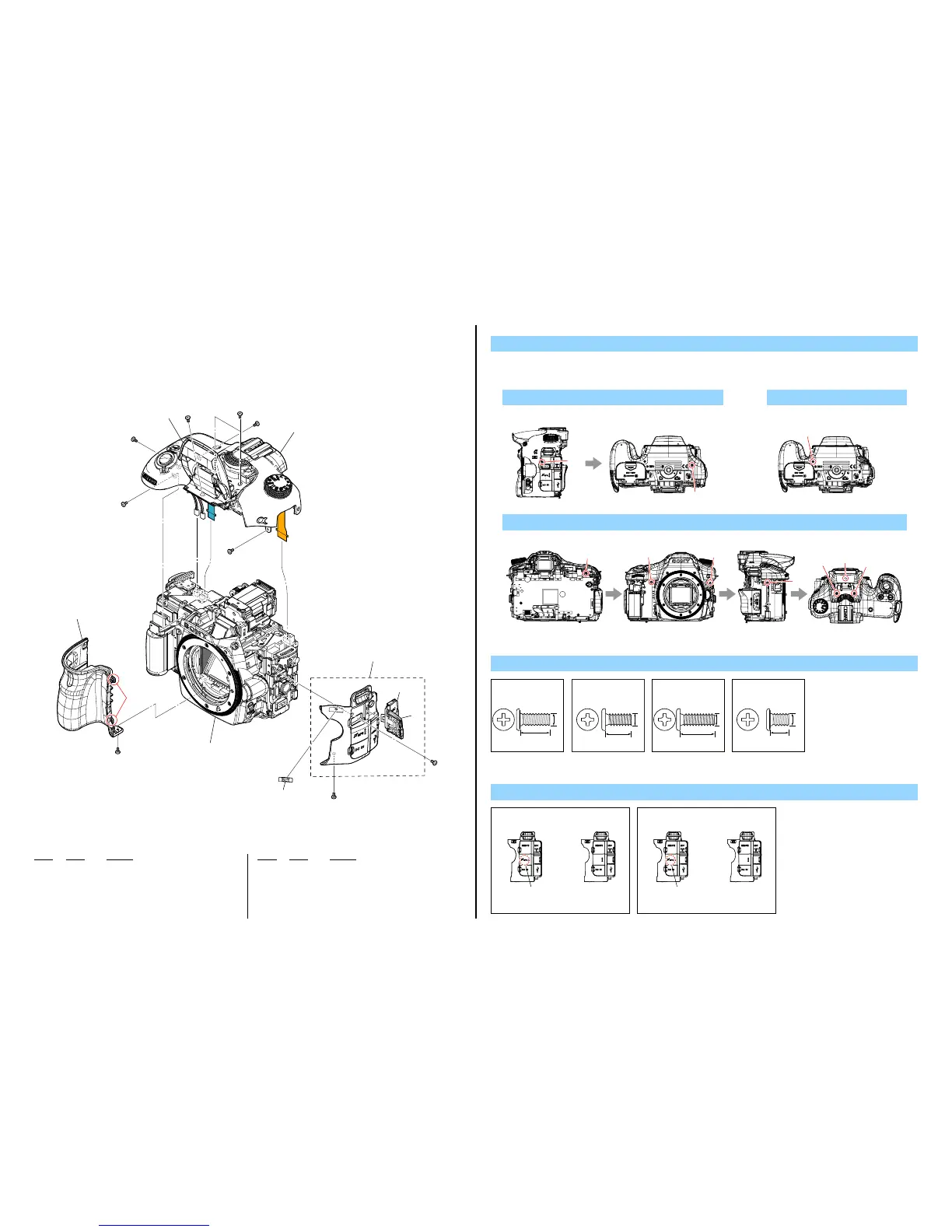

2-1-4. OVERALL SECTION-2
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
1 Open the Remote Lid (1) → #12 X 2
Right View
Bottom View
#12
#12
2 #12 X 1
Bottom View
#12
Ref. No. Part No. Description
Ref. No. Part No. Description
#5
#12
#140
#12
#12
#12
#12
#2
#1
2 151
Claws
1 152
(Note)
153
154
Main Board Section
(See page 2-9)
3 Top Cover Section
(See page 2-7)
3
1
#140: M1.7 X 2.0
(Black)
2-635-562-01
2.0
1.7
151 X-2582-383-1 CV GRIP COVER ASSY
152 X-2582-384-1 CV SIDE COVER L ASSY (A65V/A65VK/A65VL/A65VM/
A65VX/A65VY) (Note)
152 X-2582-461-1 CV SIDE COVER L ASSY (A65/A65K/A65L/A65M/
A65X/A65Y) (Note)
153 4-293-606-01 CV MODEL NAME PLATE(868)
154 4-414-707-01 CV REMOTE LID (868)
#2 2-635-562-31 SCREW (M1.7)
#5 3-080-204-01 SCREW, TAPPING, P2
#12 3-080-204-21 SCREW, TAPPING, P2
#140 2-635-562-01 SCREW (M1.7)
Note
Note :
GPS logo
When replacing this part, be careful
whether a LOGO is existed or not.
X-2582-384-1 X-2582-461-1
3 #12 X 1 → #5 X 1 → #12 X 3 → Popup the Strobe (3) → #2 X 2 → #140 X 1
Back View Right ViewFront View Top View
#12
#5
#12
#12
#140
#2
#2
Note :
GPSのロゴ
X-2582-384-1 X-2582-461-1
交換時にロゴの有無に注意して
ください。
#5: M1.7 X 3.5 (Tapping)
(Black)
3-080-204-01
3.5
1.7
The changed portions from
Ver. 1.5 are shown in blue.
Ver. 1.6 2013.07
To Next Page
