Sony SLT-A65 - Battery Holder Section

SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-14

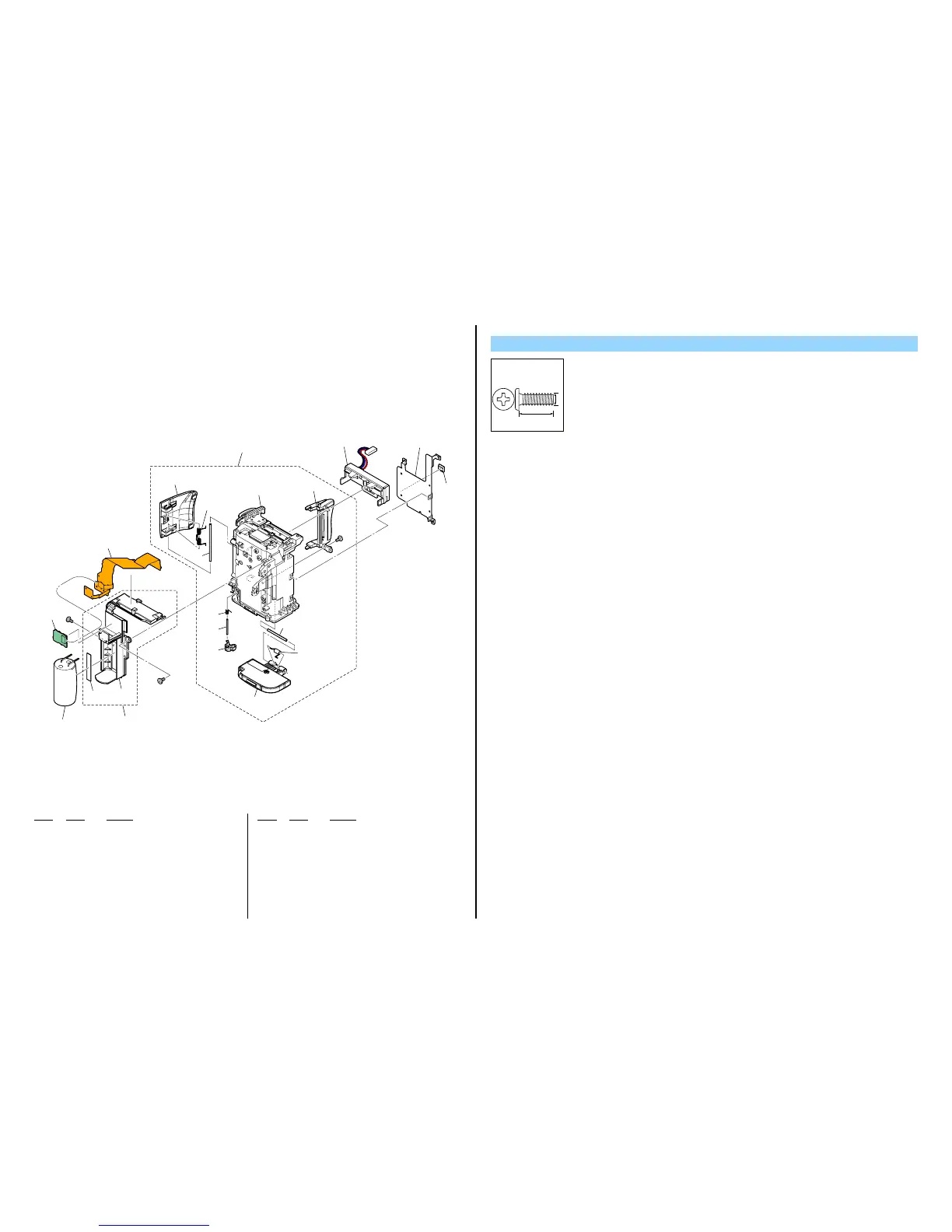

2-1-12. BATTERY HOLDER SECTION
Screw
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
Ref. No. Part No. Description
Ref. No. Part No. Description
#12
ns
ns
BT901
556
557
558
551
552
555
564
565
559
561
560
563
562
566
C901
#12
#12
553
ns
554
551 A-1837-191-A GO-001 BOARD, COMPLETE
552 4-192-221-01 BD CONDENSER TAPE
553 X-2582-394-1 BD GYRO BASE ASSY (868)
554 1-884-799-21 MCR-001 FLEXIBLE BOARD, COMPLETE
555 X-2582-397-1 BD BATTERY HOLDER ASSY(868)
556 4-293-656-01 CV MEDIA LID COVER (868)
557 4-293-658-01 CV MEDIA LID COVER SP
558 4-293-657-01 CV MEDIA LID COVER SHAFT (868)
559 4-293-653-01 BD BATTERY LOCK SP
560 4-293-654-01 BD BATTERY LOCK SHAFT
561 4-293-652-01 BD BATTERY LOCK
562 X-2582-396-1 BD BATTERY LID ASSY
563 4-293-662-01 BD BT LID COVER SHAFT
564 4-293-726-01 EM BT EMI PLATE
565 4-293-725-01 EM MEDIA EMI SHEET (868)
566 2-891-459-01 LID (SP), BATTERY
 BT901 1-780-588-21 TERMINAL BOARD, BATTERY
 C901 1-118-013-11 ELECT 225uF 330V
#12 3-080-204-21 SCREW, TAPPING, P2
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2011.10
